DESCRIPTION

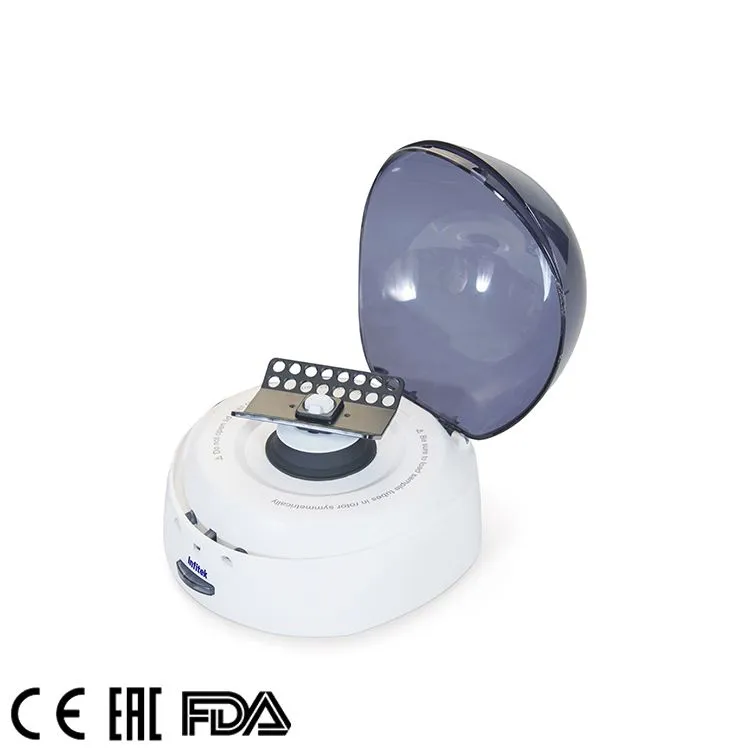

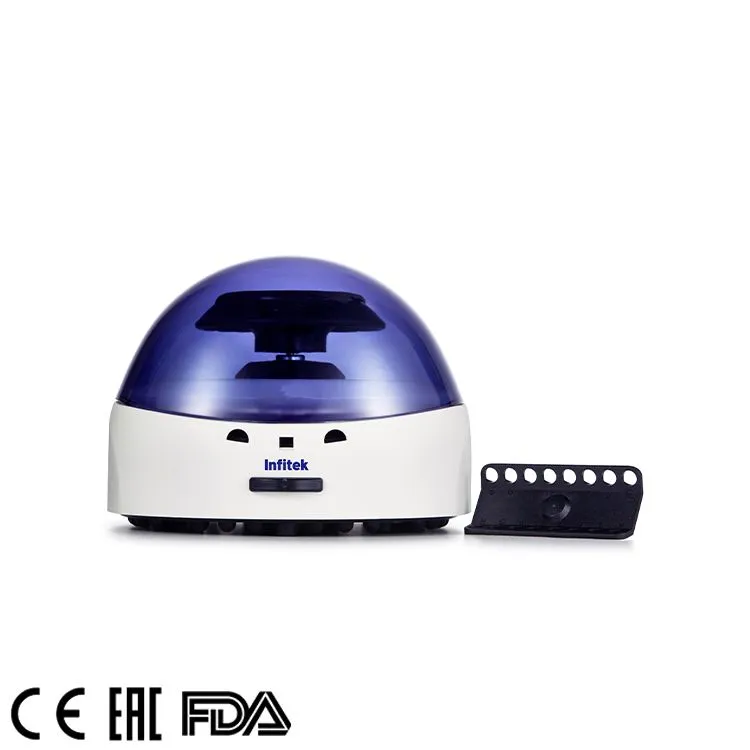

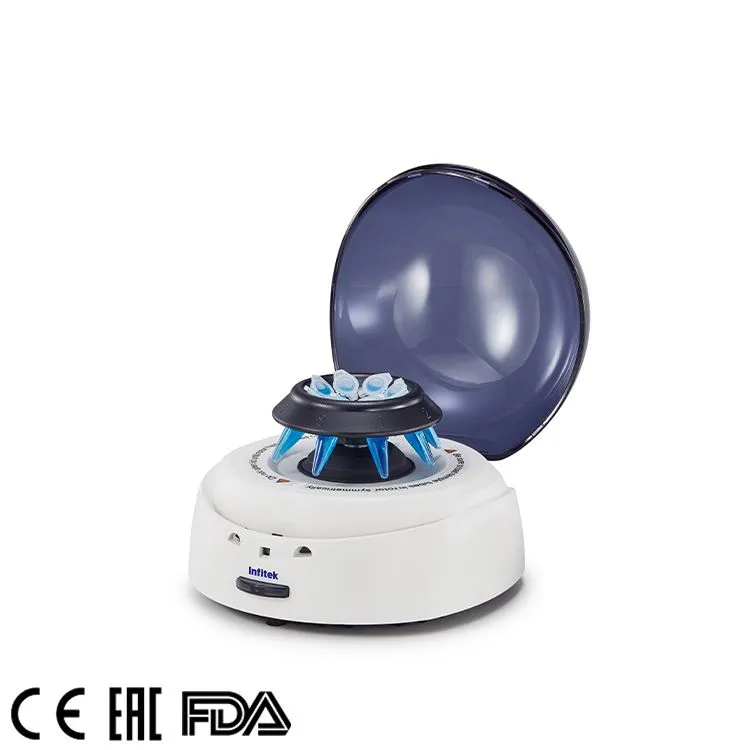

Microcentrifuge, CFG-Mini5D:
• Ideal for microfiltration and quick spin-down application.
• Easy to operate. Lid close, it begins to rotate.
• Max up to 5000rpm.
• Quiet running, noise level ≤45dB.
• Quick-change rotor without any tool.
• Acceleration and brake in seconds.
• Safe, endurable and robust rotor with clamp locking design.


SPECIFICATIONS
| Specifications | CFG-MINI5D |
| Max. Speed | 5000rpm |
| Max. RCF | 1360×g |
| Rotor Capacity | 0.2/0.5/1.5/2.0mL×8; 32×0.2ml PCR strips or 4×0.2ml PCR 8 strips |
| Run Time | Continuous operation |
| Driving Motor | DC motor |
| Power | AC100V-240V/50Hz/60Hz 20W |
| Noise Level | ≤45dB |
| Dimension [L×D×H] | 170*160*122 mm |
| Packaging Size [L×D×H] | 300*240*210 mm |
| Net/ Gross Weight | 1/ 2kg |
| Certification | CE FAD EAC |
Available rotors
![]() | Cat. No.19400015
Max. speed: 5000rpm Max. RCF: 1360×g Rotor capacity: 2mL/1.5mL×8,0.2mL×8,0.5mL×8 Rotor material: High strength plastic |
![]() | Cat. No.19200810
Max. speed: 5000rpm Max. RCF: 1360×g Rotor capacity: 0.2 ml×32 PCR strips, 0.2 ml×4 PCR 8 strips Rotor material: High strength plastic |
Available adapters
![]() | Cat. No.19400029
0.2mL rotor adapter Used with A08-2 rotor 8pcs/pk |
![]() | Cat. No.19400026
0.5mL rotor adapter 8pcs/pk |
-
