Description
- Reliable heating/cooling elements and precise temperature control
- Unique design of block ensur es the temperature uniformity and repeatable results
- 7 inch Large color touch panel screen for easy programming withfriendly software
- High performance DSP and temperature control
- Fast heating and cooling rate
- Largeprogram storage
Specifications
| Specifications | PCRTC-S |

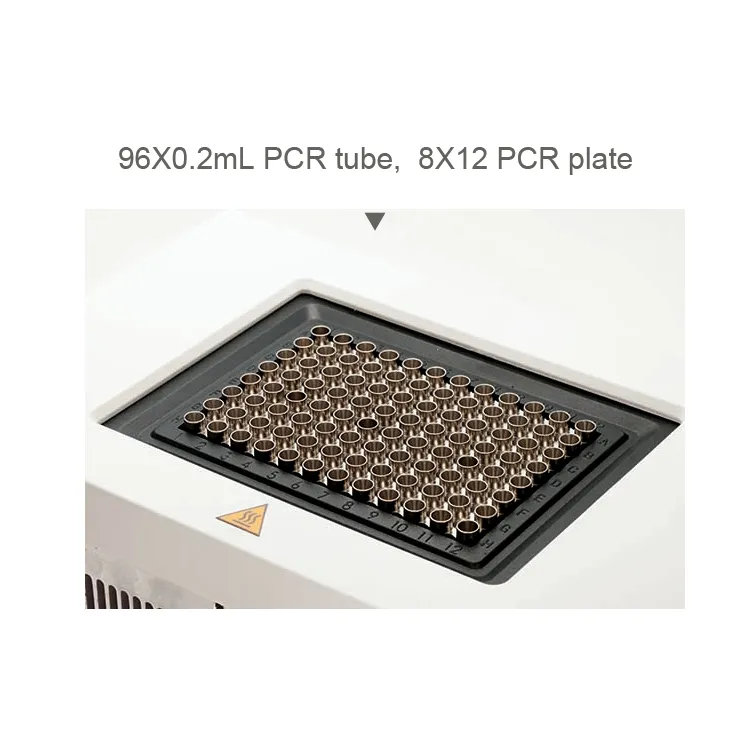

| Sample Capacity | 96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate |
| Heating Temperature Range | 4-105℃ |
| Lid Temperature Range | 30-110℃ |
| Temperature Display Accuracy | ±0.1℃ |
| Temperature Control Accuracy [at 55℃] | ±0.3℃ |
| Temperature uniformity[at 55℃] | <0.3℃ |
| Max. Heating/Cooling Rate | 5℃/Sec |
| Adapter block material | aluminum |
| Display | 7” LCD 800×480 |
| Input | Touch panel |
| User defined file system | Max. 30 segments 99 cycles max. 16 folder and 16 files each folder |
| Power off protection | Yes |
| Power Supply | 100-120V/200-240V,50/60Hz |
|
Dimension [D×W×H] ( without the heating block ) |
600*420*440 mm |
| Net /Gross weight | 10/13 kg |
-
