Description
1.In the workroom the hot air is convective naturally and cyclically
2.Digital display microcomputer intelligent PID temperature
3.New anti-hot handle
DESCRIPTION
1.In the workroom the hot air is convective naturally and cyclically
2.Digital display microcomputer intelligent PID temperature
3.New anti-hot handle
SPECIFICATIONS

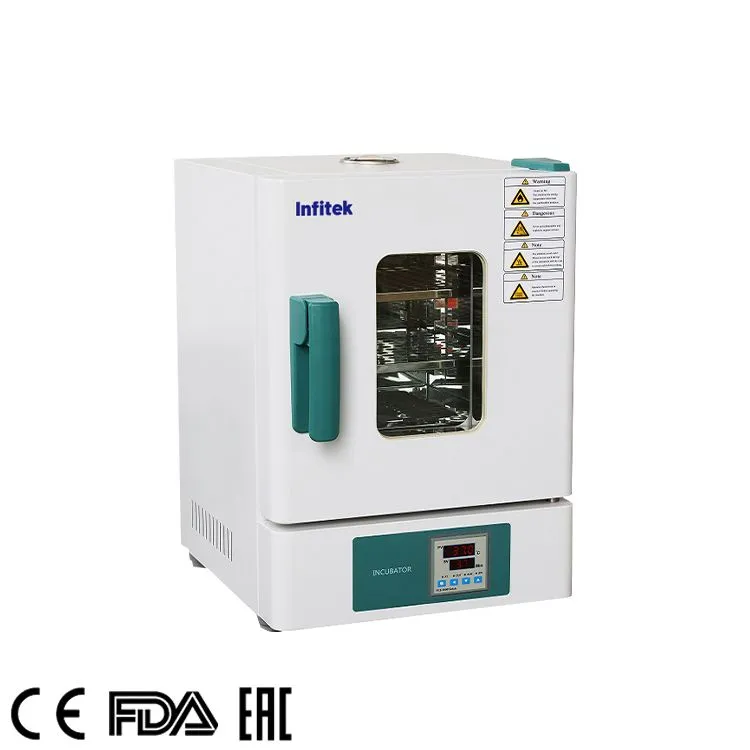

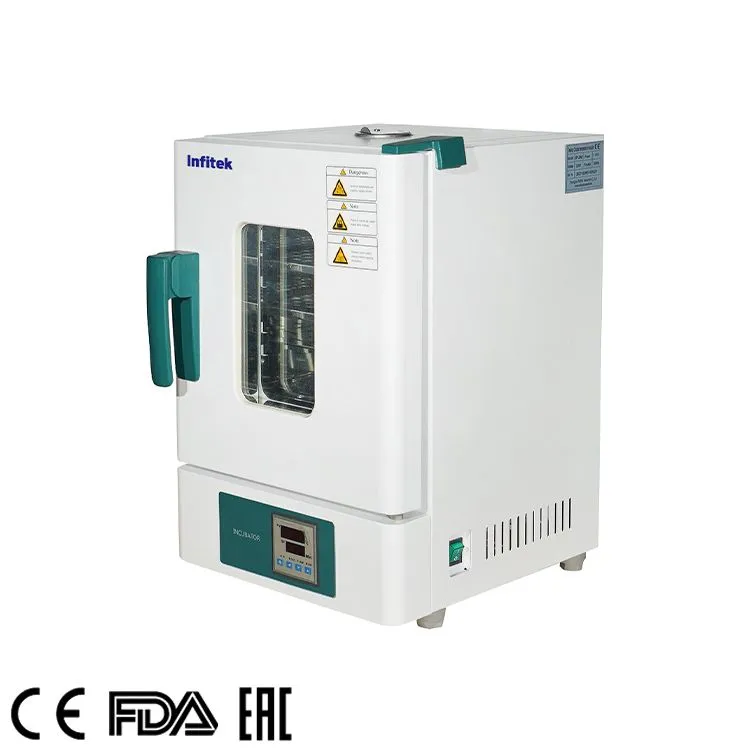

| Model | ICB-18E /ICB-18 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | RT+5-65℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±0.5℃ | |
| Temp. Uniformity | ±2.0℃ | |
| Structure | Inner Chamber | Without; |
| Without E model: mirror stainless steel | ||
| With E model: High strengthgalvanized sheet | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quaility rock wool board (with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 0.18kW | |
| Exhaust hole | φ28mm top (with function of test hole) | |
| Controller | Temp. control mode | Two temperature section intelligent PID |
| Temp. set mode | Touch button setting | |
| Temp. displaymode | Measuring temperature: display on the four digital tubes upper row; Setting temperature: display on the lower row | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop | |
| Additional function | Sensor deviation correction, temperature over shoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Safety device | Over temperature sound-light alarm | |
| Specification | Inner Chamber size(W*L*H)(mm) | 260*260*260 |
| Exterior size(W*L*H)(mm) | 380*455*568 | |
| Packing size(W*L*H)(mm) | 500*530*657 | |
| Volume | 18L | |
| Shelf number | 6 | |
| Load per rack | 15kg | |
| Shelf space | 29mm | |
| (50/60HZ)Current rating | AC220V/0.8A | |
| NW/GW (kg) | 27/35 | |
| Accessory | Shelf | 2 |
| Optional Accessories | Shelf, Programmable controller | |
-
商品Vortex Mixer, VMX-SK
-
商品Overhead Stirrer, OHS Series, LED Digital
-

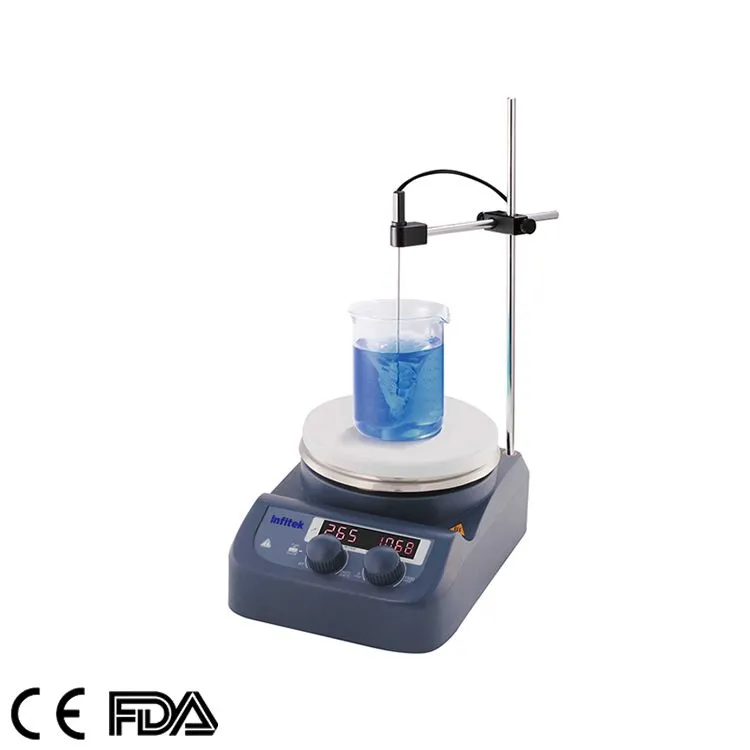

商品Hotplate Magnetic Stirrer, max. temperature 280°C, HPS-280
-
