Description
This instrument complies with the ergonomic principle, with superior optical performance, long operation time and low observation fatigue. It is suitable for medical institutions at all levels to do research demonstration, routine laboratory examinations, biology, bacteriology, clinical trials and teaching.
LCD display system
7-inch high-definition imaging equipment, used in combination with a microscope, with the observed effect of the eye at each multiple, display mode: 16:9 / 4:3; screen resolution: 1024 * 600.
The digital display storage system
10-inch display screen, With 8.0M HDMI camera, the output resolution of HDMI is 720P@ 60fps; the photo resolution is 3840 * 2160; remote control is adopted.
Specifications

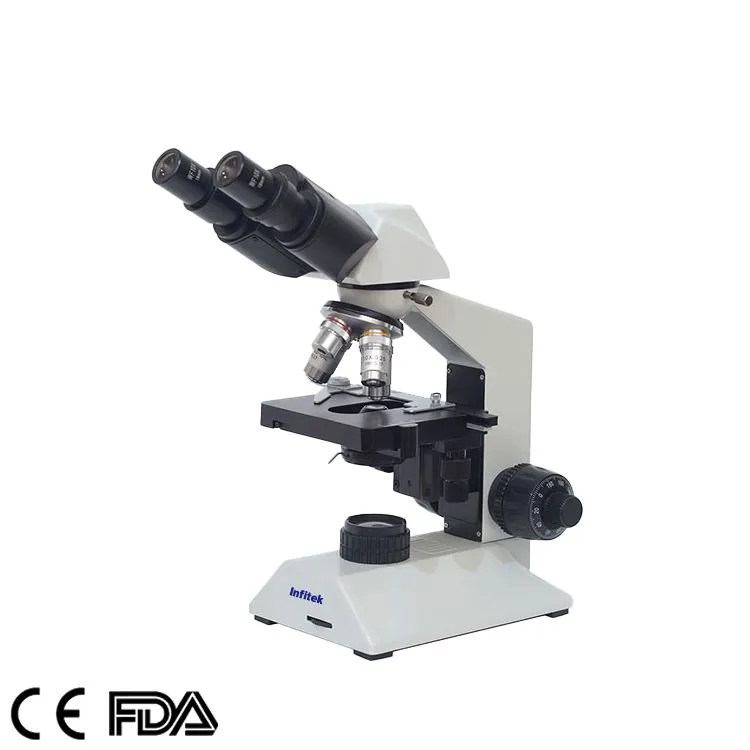

| Model | MSC-B102(Siedentopf) |
| Viewing Head | Seidentopf Binocular Head lnclined at 45°interpupillary (55-75mm) |
| Eyepiece | Wide Field eyepiece WF10X18mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective 4X,10X,40X,100X |
| Stage | Double Layers Mechanical Stage 115X125mm/ 70X30mm |
| Condense | Abbe NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination | LED Illumination, Brightness Adjustable |
| Halogen Lamp 100V-240V/ 6V20W | |
| Plan-concave Mirror | |
| Package | Styrofoam |
| Carton |
-
