Description
 |  |
| CFG-4D | CFG-4D-E |

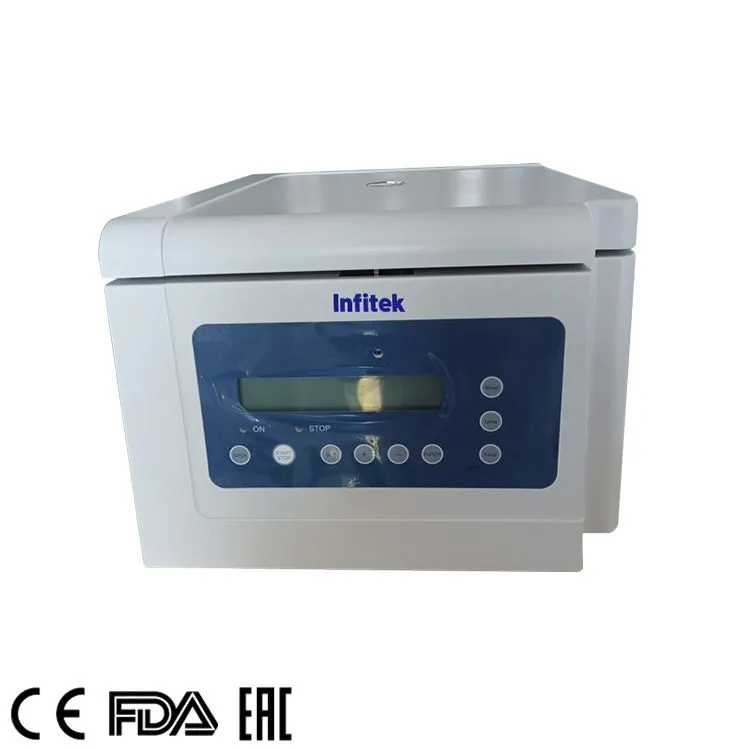

CFG-4D Features
- Max.speed 4000rpm.
- Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
- Max.capacity 50ml×4, Accomo dating different sizes of blood collection tubes and centrifuge tubes suitable for swing rotor and angle rotor.
- Automatic internal diagnosis and self-detection.
- Maintenance-free brushless DC motor.
CFG-4D-E Features
- Speed range of 300-4000rpm.
- 3 programs storage capacity for routine applications
- Automatic internal diagnosis.
- Maintenance free brushless DC motor.
Specifications
| Specifications | CFG-4D | CFG-4D-E |
| Speed range | 500-4000rpm increment: 100rpm | 300-4000rpm increment: 100rpm |
| Max. RCF | 2500×g | 1900×g |
| Speed accuracy | ±100rpm | ±100rpm |
| Rotor | Swing6×15ml Swing4×50ml Angle 24×15 ml, Angle 12×10ml/8×15ml | Angel 8×15ml(Default), Angel 10ml×12 |
| Run time | 1-99min, HOLD | 1-99min, HOLD |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LED |
| Program | Blood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min. | Blood: 3200rpm, 10min Urine: 1800rpm,5min Faecal: 1300rpm, 10min |
| Safety Device | Automatic internal diagnosis | Automatic internal diagnosis |
| Acceleration/deceleration | 3↑4↓steps | 25s↑35s↓ |
| Power | Single phase, 100V-240V, 50Hz/60Hz | Single phase, 100V-240V, 50Hz/60Hz |
| Dimension(W×D×H) | 364×440×268mm | 286×367×227mm |
| Weight | 14.5kg | 9.2kg |
| Noise | ≤62dB(A) | ≤60dB(A) |
 | Cat. No.19400082
for CFG-4D Max. speed: 4000rpm Rotor capacity: 15ml×6 Rotor material：Aluminum alloy Default adaptor: CAT. NO. 19500021，CAT. NO. 19500022 |
 | Cat. No.19400100
for CFG-4D Max. Speed: 4000rpm Rotor capacity: 50ml×4 Rotor material：Aluminum alloy Default adaptor: CAT. NO. 19500024，CAT. NO. 19500022 |
 | Cat. No.19400101
for CFG-4D Max. speed: 4000rpm Rotor capacity: 15ml×24 Rotor material：High strength plastic Default adaptor: CAT. NO. 19500021，CAT. NO. 19500022 |
 | Cat. No.19400084
for CFG-4D/CFG-4D-E Max. Speed: 4000rpm Rotor capacity:15ml×8 Rotor material: High strength plastic Default adaptor: CAT. NO. 19500021 |
 | Cat. No.19200921
for CFG-4D/CFG-4D-E DM0412/DM0412S Cat. No. 19200921 Rotor capacity: 15ml×8,10ml×12 Rotor material: High strength plastic |
Available adapters
 | Cat. No.19500024
50ml change 15ml adapter, Adapted to 17×120mm centrifuge tube, 13/16×100mm blood collection tube 4pcs/pk, for CAT. NO. 19400100 |
 | Cat. No.19500021
15ml adapter for 17×120mm centrifuge tube, 13/16×100mm blood collection tube 24 pcs/pk, for CAT. NO. 19400082, CAT. NO. 19400101, CAT. NO. 19400084 |
 | Cat. No.19500022
5ml adapter, Adapted to 13×75mm blood collection tube 24 pcs/pk, for CAT. NO. 19400100, CAT. NO. 19400082, CAT. NO. 19400101 |
 | Cat. No.19500023
(Optional) 1.5/2ml Cryogenic Vials/ centrifuge tube adapter, 24 pcs/pk, for CAT. NO. 19400100, CAT. NO. 19400082, CAT. NO. 19400101, CAT. NO. 19200921, A6-50P |
| Centrifuge model | Rotor | Capacity | Hole Diameter (mm) | Hole Depth (mm) | Max. Tube Height (mm) | Max. Speed (rpm) |
| CFG-4D | CAT. NO. 19400082 | 15ml×6 | 22 | 97.7 | 120.6 | 4000 |
| CAT. NO. 19400100 | 50ml×4 | 29.4 | 87.8 | 125 | 4000 | |
| CAT. NO. 19400101 | 15ml×24 | 22 | 97.7 | 120.6 | 4000 | |
| CFG-4D&CFG-4D-E | CAT. NO. 19400084 | 15mlx8 | 22.6 | 90.8 | 120.3 | 4000 |
| CAT. NO. 19200921 | 15ml×8/10ml×12 | 18.6 | 83.4 | 123 | 4000 |
-
商品(Conventional) Corpse Refrigerator,MCFR-4000, 4 corpses
-

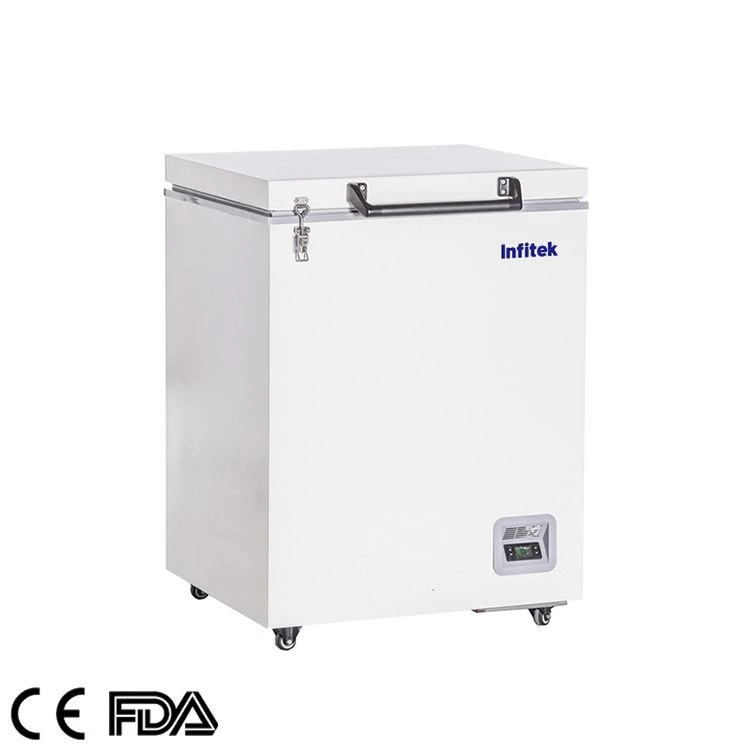

商品-60℃ Chest Freezer, LF60-H Series
-
