Description
Description

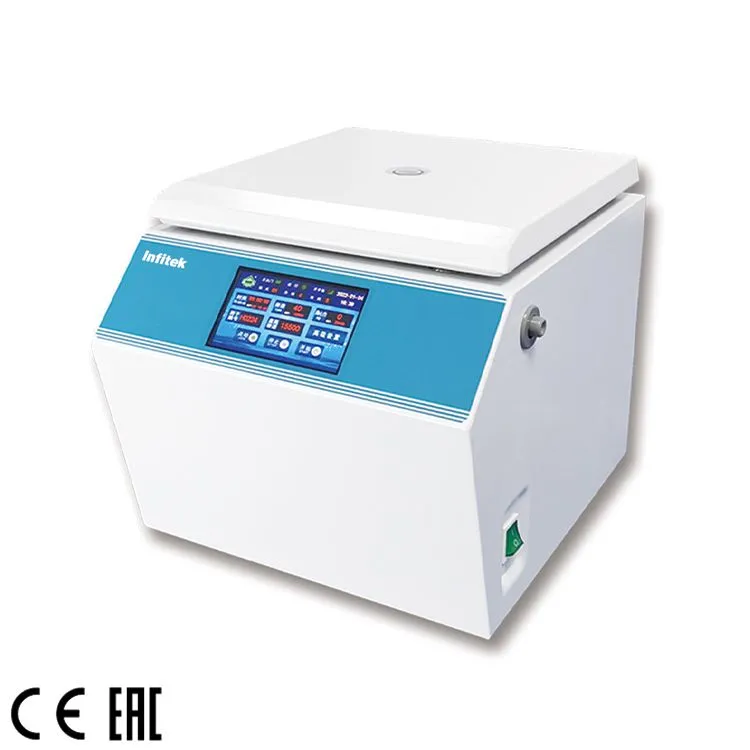

The CFG-21JP High Speed Centrifuge adopts microcomputer control, large-screen color LCD display, and full touch-screen operation interface to directly set the working program, RCF, speed, time, acceleration and deceleration, and rotor model.
Features
- Brushless AC variable frequency motor drive and special drive module ensure the reliability of the circuit.
- Double door cover lock system, starting means locking, ensuring safe operation.
- Provides 20 kinds of working program storage, users can freely program and call theirworking parameters, which is easy to use and improves work efficiency.
- Provide 15 kinds of acceleration/deceleration;can set one group of acceleration and deceleration arbitrarily according to the sample requirements.
- Two timing functions: at set rpm and start timing, and the jog is short spin function.
- Differential centrifugation: Five differential centrifugation programs are reserved, and users can set them according to their needs.
- Double-layer steel structure and stainless steel centrifugal chamber to avoid corrosion.
- Automatic balance and imbalance protection. When an error or imbalance occurs, an audible alarm signal will be issued and the centrifuge will automatically stop running.
- Easily adjust speed, RCF, time and temperature during operation without
- The shortest acceleration / deceleration time≤[H0.512]
- Countdown function : The countdown in seconds,real time display of remaining working time.
- The rotor can be autoclaved at 121℃ for more than 2 hours, airtight angle rotor with high biological safety.
- Can customize 485 communication interface function.
Specifications
| Model | CFG-21JP |
| Max.Speed | 21000rpm |
| Max.RCF | 30410xg |
| Max.Capacity | 100mlx6 |
| Speed Accuracy | ±10rpm |
| Timing Range | 1s～99h59min59s/Jog (short spin) |
| Sound Emission | ≤58dB |
| Electricity | AC 220V, 50Hz, 10A |
| Power | 700W |
| Dimension(W*D*H) | 485*370*390mm |
| N.W./G.W. | 37kg/45kg |
| Package Dimension(W*D*H) | 600*520*600mm |
Rotor Configuration
| Rotor | Capacity | Max. Speed | Max.RCF |
| H0.136 | Blood Capillary
L75mmx36tube | 14500rpm | 24681xg |
| H0.232 | 0.2mlx4x8tube | 14500rpm | 16219xg |
| H0.264 | 0.2mlx8x8tube | 13000rpm | 14926xg |
| H0.512 | 0.5mlx12 | 21000rpm | 23666xg |
| H0.524 | 0.5mlx24 | 20000rpm | 30410xg |
| H0.548 | 0.5mlx48 | 16000rpm | 22324xg |
| H0212 | 1.5/2.2mlx12 | 20000rpm | 30410xg |
| H0224 | 1.5/2.2mlx24 | 17500rpm | 29890xg |
| H0236 | 1.5/2.2mlx36 | 16000rpm | 25473xg |
| H0248 | 1.5/2.2mlx48 | 15500rpm | 26672×g |
| H0312 | 3mlx12
Vacuum Test Tube | 8000rpm | 4866×g |
| H0324 | 3mlx24
Vacuum Test Tube | 7000rpm | 4821×g |
| H0512 | 5mlx12 | 17000rpm | 21971×g |
| H0524 | 5mlx24 | 13500rpm | 17115×g |
| H0712 | 5mlx12
Vacuum Test Tube | 8000rpm | 7119×g |
| H0724 | 5mlx24
Vacuum Test Tube | 7000rpm | 5259xg |
| H1012 | 10mlx12 | 14500rpm | 20356xg |
| H1024 | 10mlx24 | 12500rpm | 16770xg |
| H1508 | 15mlx8 | 13000rpm | 17572xg |
| H3006 | 30mlx6 | 14500rpm | 21155xg |
| H5006 | 50mlx6 | 12500rpm | 17346xg |
| H5008 | 50mlx8 | 12000rpm | 16904xg |
| H1004 | 100mlx4 | 12000rpm | 16904xg |
| H1006 | 100mlx6 | 12000rpm | 16904xg |
| NO1
Swing Rotor Cross | 10mlx12 | 5000rpm | 3913xg |
| NO2
Swing Rotor Cross | 50mlx4 | 5000rpm | 3913xg |
| NO3
Swing Rotor Cross | 100mlx4 | 5000rpm | 3913xg |
| NO4
Microplate | 48wellx2x2 | 5000rpm | 2432xg |
店家其他推薦商品
-

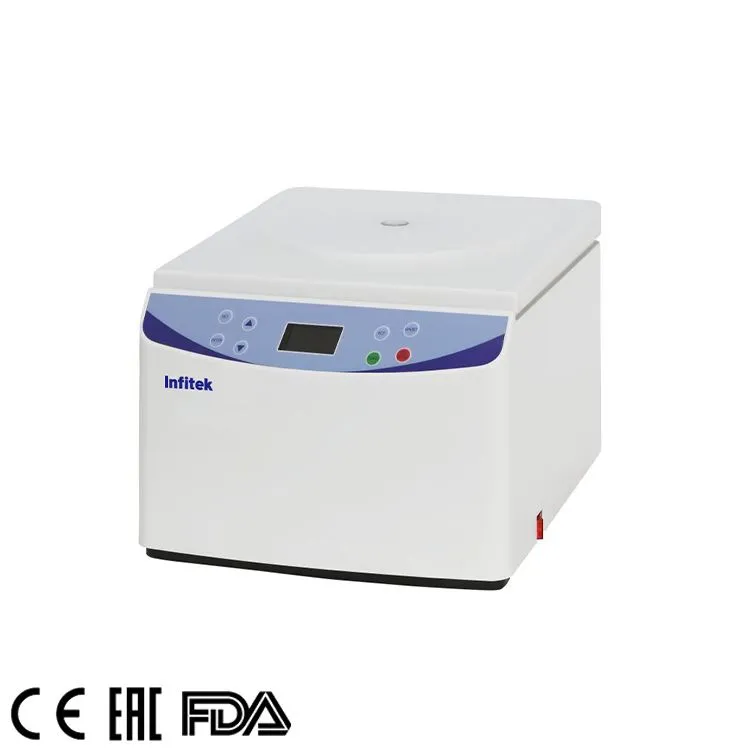

商品Low Speed Centrifuge, Benchtop, CFG-B5BL
-
