Description

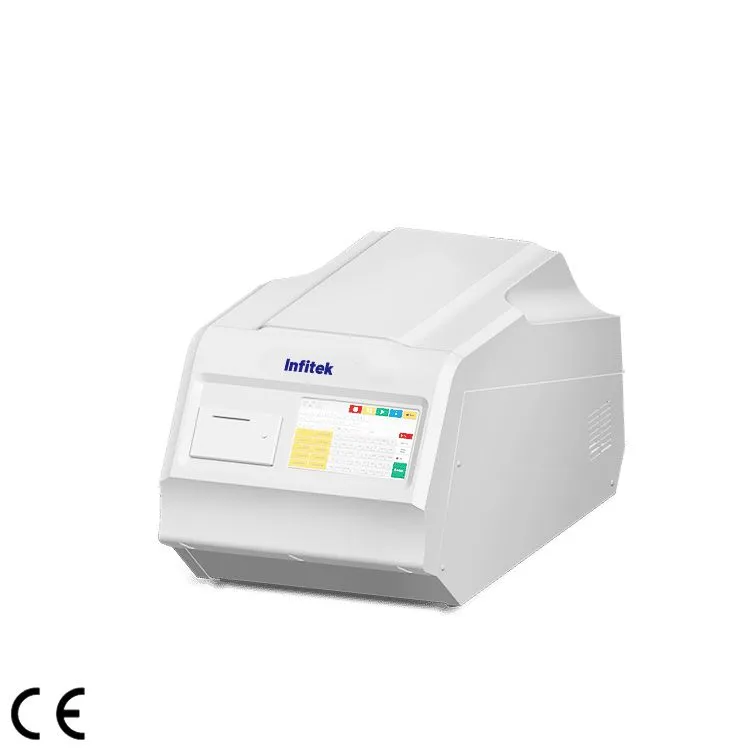

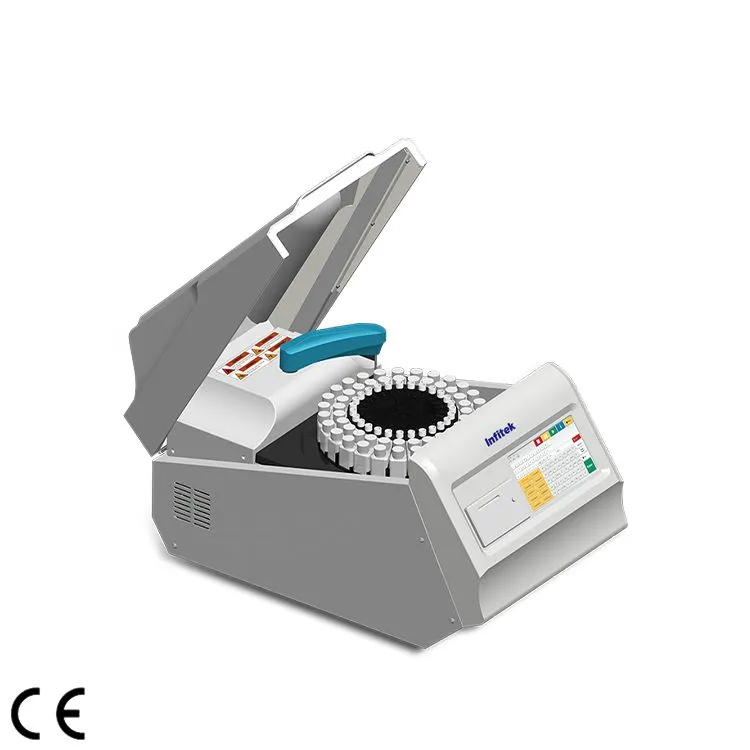

The Biochemistry Analyzer is fast, easy to use, and has a very friendlyinterface. It is widely used in hospitals at all levels, epidemic prevention stations, and family planning service stations.
Product features
- Up to constant 120 tests/h
- Discrete/random access
- STAT sample priority
- Easy to use
- User friendly interface
- No computer
- Internal thermal printer
- Direct print report
- All-in-one machine
Specifications
| General Information | |
| Machine type | Random access, open reagent & locked reagent (optional) |
| Test speed | Constant 120 tests/hour (Mono reagent or double reagent) |
| Test principle | Colorimetric, turbidimetry |
| Test method | 1 point end, 2 point end, Fixed-Time, Kinetics |
| Calibration type | Linear & nonlinear |
| Sample Unit | |
| Sample tray | 24+5(Tube 12*100) sample positions |
| Sample tube | Micro cup & test tube & blood collection tube can be used.(φ 12 -13 )mm *(25-100 )mm |
| Sample volume | 2-30μl step by 0.1μl |
| Sample probe | Liquid surface detection, timely tracking for liquid volume. |
| Collision avoidance | |
| Probe cleaning | Automatic washing for both interior and exterior ,carry-over < 0.05% |
| Sample barcode | Sample barcode reader (optional) |
| Reagent Unit | |
| Reagent tray | 54 positions for reagent, Non-stop |
| cooling system with peltier pad inside, 24 hours 2℃-14℃, | |
| open system, coμld accept any reagent. | |
| Reagent volume | 20-300μl, step by l μl |
| Reagent needle | Liquid surface detection, timely tracking for liquid volume. |
| Collision avoidance. | |
| Probe cleaning | Automatic washing for both interior and exterior ,carry-over < 0.05% |
| Regent barcode | Regent barcode reader (optional) |
| Reaction Unit | |
| Reaction tray | 81 reaction cuvettes, new amorphous optical plastics |
| reaction cups, perfect transmittance. | |
| Reaction volume | 150 μl-330 μl |
| Reaction time | 10 minutes |
| Cuvette washing steps | 5-stage, 2 times automatic washing system, alkaline cleaning solution |
| Temperature | Peltier pad incubation system, reaction temperature |
| (37°C ±0.1 °C) | |
| Mixing System | |
| Mixer | Paddle-type mixing,surface teflon treatment, wash before and after mixing ,effective reducing of carry-over |
| Optical System | |
| Light source | Halogen lamp |
| Wavelength | 340nm; 405nm; 450nm; 500nm; 546nm; 578nm; 630nm;670nm(4 more options) |
| Absorbance range | 0-3.8 Abs |
| Resolution | 0.0001 Abs |
| Operating System | |
| Operation system | Windows XP, Windows 7, Windows 8, Windows 10 |
| Report printing | 6 formats optional, surpport custom pattern |
| Interface | TCP/IP network interface |
