Description

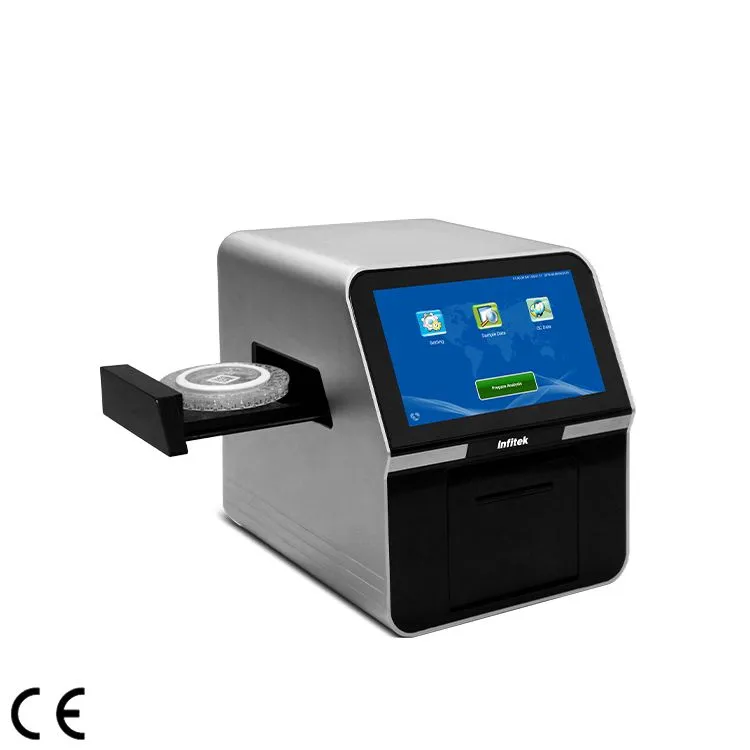

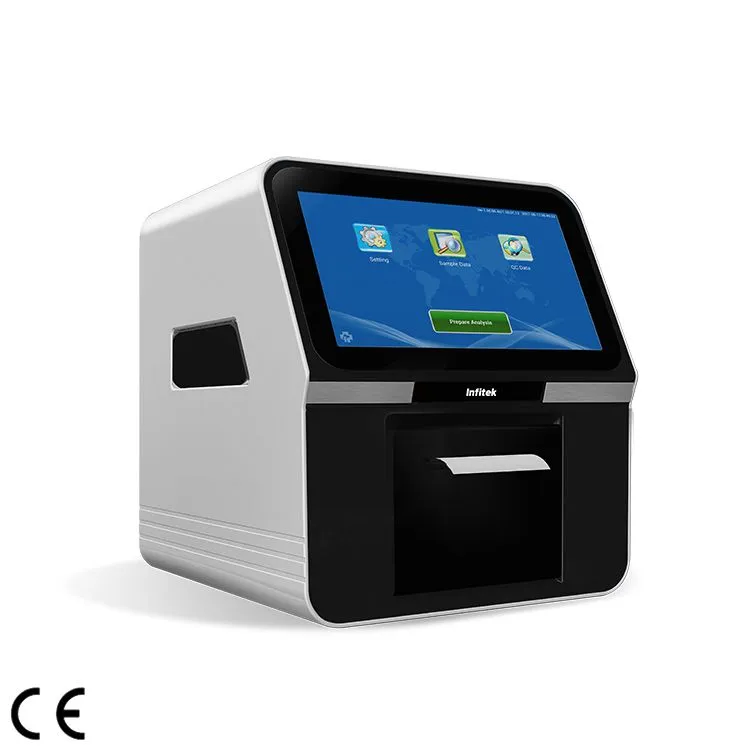

BA-PA-120 auto dry biochemistry analyzer is a biochemical analsis system that integrates conventional biochemistry, coagulation, electrolyte items. it is widely used in primary health, emergency diagnostic testing, field rescue and other fields.
ADVANTAGES
Low Sample Consumption
Sample Volume needed is 1/10- 1/20 of conventional chemistry analyzer.
Easy to Use
No professional skill required.
Maintenance Free
Robust analyzer, no consumables needed, such as tubes, pumps and valves.
Accurate Result
Using the photoelectric colorimetric principle, the BA-PA-120 analyzer has many advantages versus conventional dry biochemistry analyzer using the light reflection method. Dilution of test sample is guaranteed without random errors or cross contamination.
Specifications
| Sample volume | 90-120μL |
| Barcode | Two-dimensional barcode |
| Testing Time | 12minutes/sample |
| Temperature | 37℃±0.3℃ |
| Resolution | 0.001Abs |
| Absorbance | 0-3.0Abs |
| Sample type(biochemistry, electrolyte) | Anti-coagulated whole blood, serum, plasma |
| Sample type(coagulation) | Anti-coagulated whole blood |
| QC&Calibrate | Real time full-auto finish |
| Working Conditions | Temperature:10-32℃; Humidity: <85% |
| Testing Principle | Absorption spectroscopy,transmission turbidimetry |
| Testing Method | End point, kinetic,fixed time and turbidmetry |
| Light Source | 12V/20W,halogen tungsten lamp, life span is over 2500 hours |
| Electricity | AC100V-240V , 50-60Hz |
| Display | Android 6.5 inch 800*480,multi-point capacitive touch screen |
| Storage | 500000 results |
| Printer | Built-in thermal printer |
| Connector | 4 USB ports, 1 LAN port |
| Package Dimensions(W*D*H)(mm) | 340*320*400 |
| Net Weight | 4.2 Kg |
-

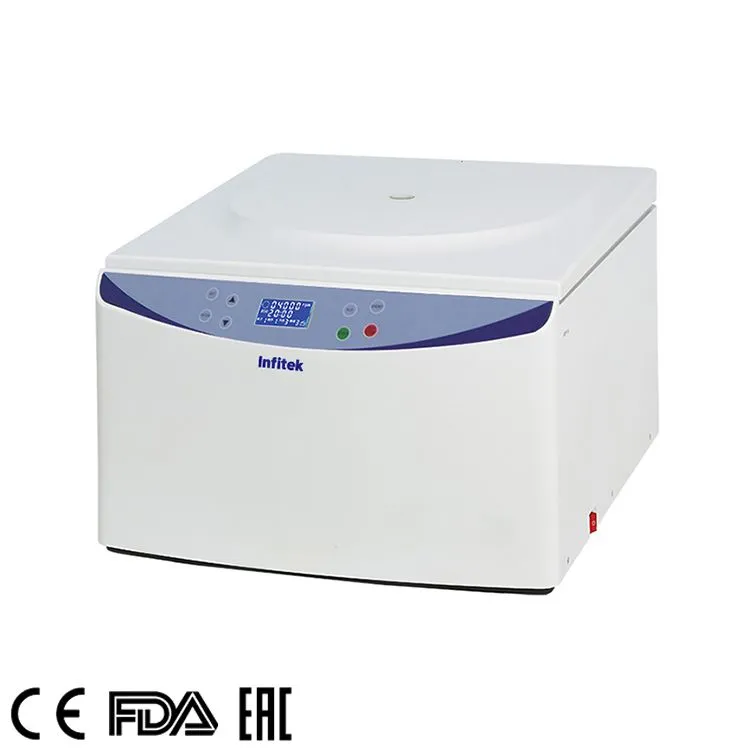

商品Low Speed Centrifuge, Benchtop, CFG-550
-
