Description

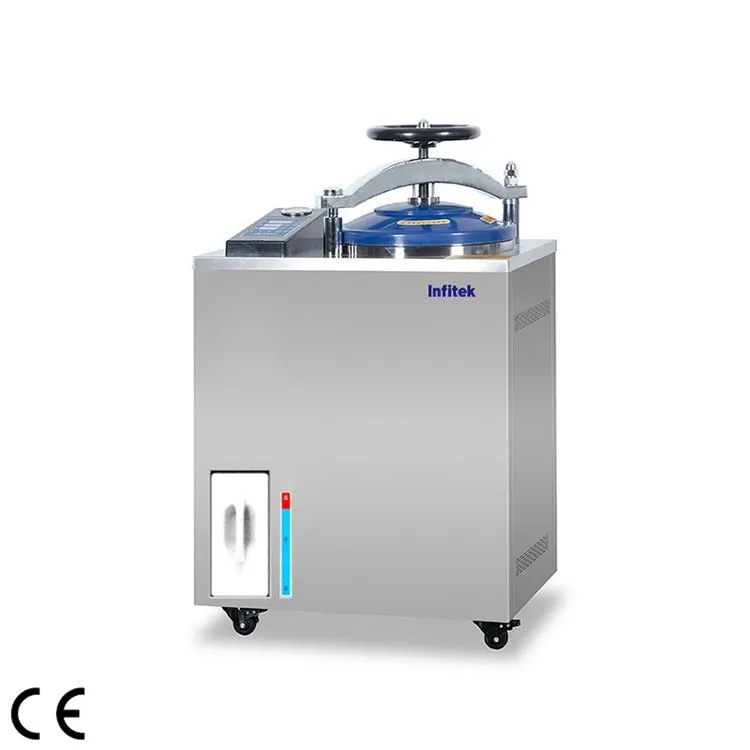

- Hand wheel translation and quick opening structure
- Multi-functional automatic internal cycle with drying
- Internal steam cycle
- High quality stainless steel material
- Microcomputer automatic control,arbitrary setting sterilization parameters
- Safety interlocking device
- Digital display and Touch buttons
- Standard test interface
- Self-expanding seal
- With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
- With stainless steel bucket or basket
- The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.
- Buzzer reminder after sterilization, automatic stop.
- Automatic discharge of cold air, automatic steam exhaust after sterilization.
- Optional external printer
- Optional automatic water inlet function
Specifications
| Model | STV-A35II | STV-A50II | STV-A75II | STV-A100II |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V, 50HZ | |||
| Design pressure | 0.25 Mpa | |||
| Design temperature | 139℃ | |||
| Rated working pressure | 0.22Mpa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature | 116℃~134℃ | |||
| Temp accuracy | ±1℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Drying time setting range | 0~240min | |||
| Chamber volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket dimension | Ø330×320 | Ø330×460 | Ø380×560 | Ø420×540 |
| Basket dimension(optional) | Ø320×350 | Ø320×240×2 | Ø360×280×2 | Ø410×300×2 |
| Outer dimension | 698×498×940 | 630×500×1110 | 725×525×1170 | 788×588×1255 |
-
