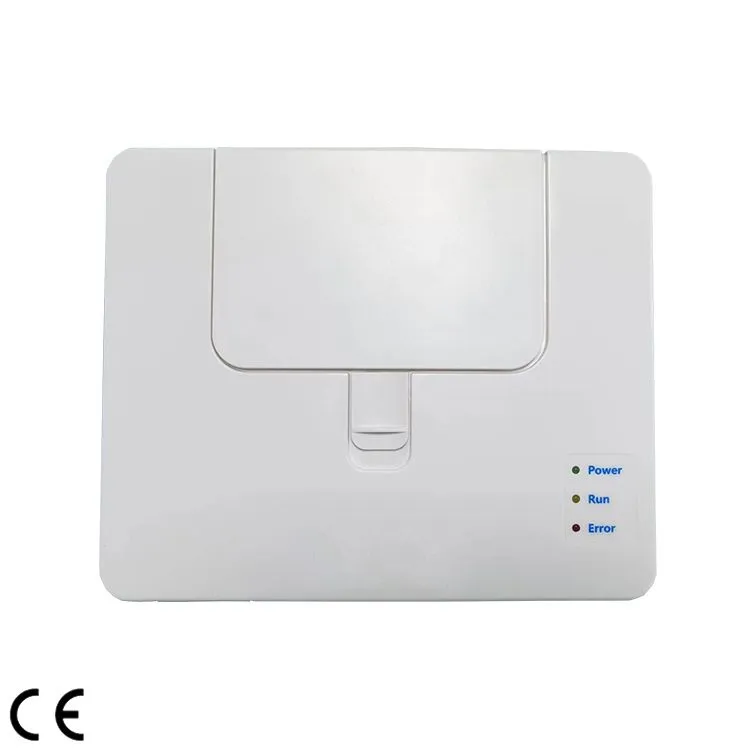

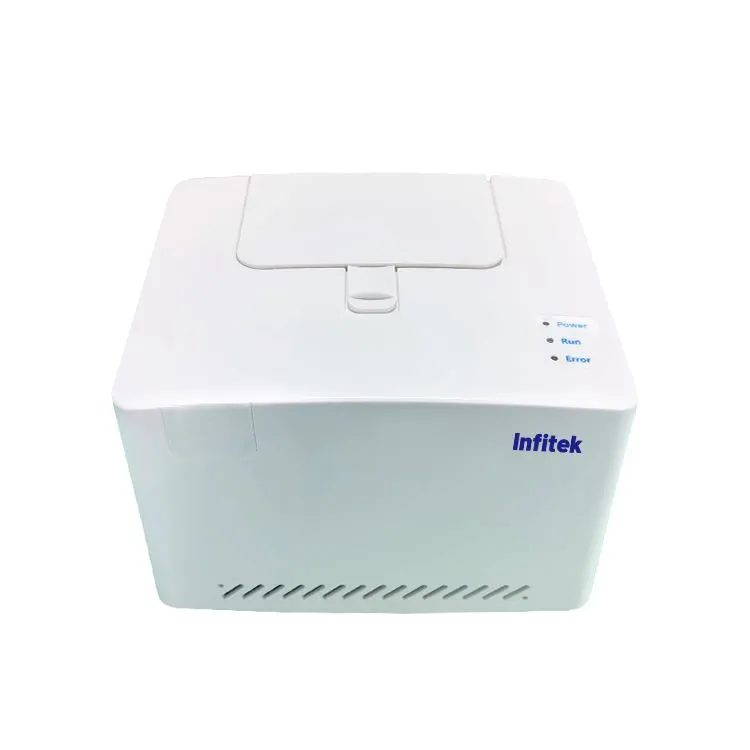

  • Real Time PCR System, PCR-Q88-4
  • Real Time PCR System, PCR-Q88-4
  • Real Time PCR System, PCR-Q88-4

  • Real Time PCR System, PCR-Q88-4

  • 商品型號

  • 商品規格

    Max. Ramp Rate: 8℃/s
    Fluorescent channels: 4
    Sample Capacity: 8×0.2ml (8 well)
    Powerful software analysis Small and light, Easy to carry
    Constant current circuit, High temperature control accuracy
    Battery power supply, Quick detection

分享到

Description

Description

The product can be used for real-time detection in pasture forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.

Advantages

  1. Small size, light weight, easy to carry.
  2. Powerful software analysis function, which can perform quantitative analysis, melting curve analysis, genotyping, etc
  3. Adopting side scan technology, the detection distance is short, and the fluorescence collection signal is stable.
  4. Black reaction block to avoid background noise.
  5. Adopt the same acquisition optical path to improve the repeatability.
  6. LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
  7. Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
  8. It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
  9. Forward and backward air vent design, can be placed side by side, saving laboratory space.
  10. Support lithium battery power supply, especially suitable for quick inspection and field inspection.

Specifications

ModelPCR-Q88-4
Sample Capacity8×0.2ml (8 well)
ConsumableClear 0.2 ml PCR tube /8-tube strips
Reaction Volume15-100μl
Temperature control



technology

Marlow customized Peltier allow 1.000.000 cycles
Temperature Range0-100℃(Resolution:0.1℃)
Max. Ramp Rate7℃/s
Temperature fluctuation±0.1℃
Uniformity±0.25℃
Accuracy±0.25℃
Hot Lid Temperature30-110℃ (Adjustable, default 105℃)
Temperature ControlBlock/Tube
Excitation wavelength460-628nm
Emission wavelengthF1: 520-540nm



F2: 540-580nm

F3: 571-612nm

F4: 628-692nm



Factory Calibrated DyesF1: FAM/SYBR Green I



F2:HEX/VIC/JOE/TET

F3: ROX

F4: CY5



ExcitationLong life LED
DetectionHigh sensitivity photoelectric detector
Dynamic Range1-1010 Copies
Sensitivity1 copy
Feature functionQuantitative/qualitative, melting curve, genotyping
Date Export FormatsExcel, CVS, Txt
PrintingReport can be printed (optional USB thermal printer)
CommunicationWIFI/USB2.0
Dimension0（L×W×H）195×165×140 mm
Net Weight3Kg
Electricity220VAC, 50Hz; DC15V, 225W
