  • Grating Spectrophotometer, SP-CLR458
  • Grating Spectrophotometer, SP-CLR458

  • Grating Spectrophotometer, SP-CLR458

  • 商品型號

  • 商品規格

    Spectral separation device: Concave Grating
    Wavelength Range: 400~700nm
    Wavelength Pitch: 10nm
    45/0 geometric optical structure

分享到

Description

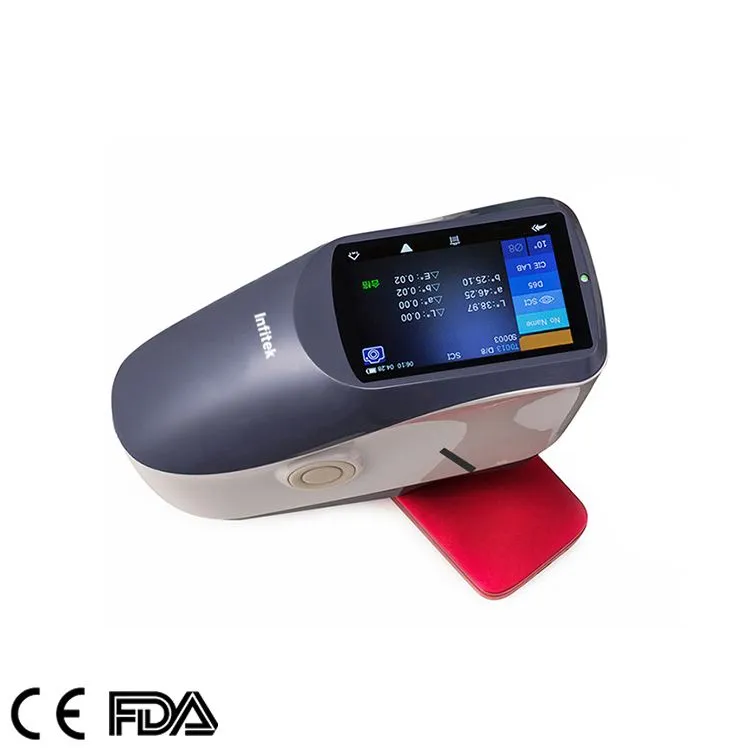

Portable Spectrophotometer

1. Beautiful appearance and perfect combination with ergonomic structure design;

2.45/0 geometric optical structure, in accordance with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833;

3. Adopt high-life and low-power combined LED light source, including UV/excluding UV;

4.Φ20mm aperture adapt to larger samples or uneven samples;

5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS detector, etc.;

7.USB/Bluetooth 4.0 (compatible with 2.1) dual communication mode, more adaptable;

8.Super stain-resistant and stable standard white calibration plate;

9. Large-capacity storage space, can store more than 30,000 test data;

10. Two standard observers, multiple light source modes, multiple color systems, and a variety of standard colorimetric indicators to meet the needs of various customers for color measurement;

11. PC software has powerful function extensions;

12.Built-in standard polygon tolerance setting and specific traffic sign gamut, especially suitable for traffic signage brightness factor and chromaticity performance judgment;

Specifications

ModelSP-CLR458
Illumination/Observation system45/0(45 ring-shaped illumination, vertical  viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement .Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere SizeΦ48mm
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Reflectance Range0~200%
Measuring ApertureΦ20mm
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV，HunterLAB,βxy
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Other Colorimetric IndexWI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
TI(ASTM E313，CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Display DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement TimeAbout 1.5s
RepeatabilitySpectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)



Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument ErrorWithin ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 4.0
Data memoryStandard 1000 Pcs, Sample 30000 Pcs
LanguageChinese,English
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)）
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery,Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional AccessoryMicro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
