Description
Microhematocrit centrifuges provide hematocrit values (HCT) for testing in biochemistry, immunity, genetics, blood separation and for general clinical tests. Other hematocrit centrifuges: CFG-14D, CFG-12B(HCT)
- Speed: 12000rpm, max. RCF:13680×g.
- Precise control of speed and time separately.
- Rotor capacity: Hematocrit rotor: 24 capillary.
- The standard capillary dial is convenient for observing the experimental results.
Specifications
| Specifications | CFG-12D |
| Speed Range | 500-12000rpm, increment: 100rpm |
| Max. RCF | 13680×g |
| Speed Accuracy | ±100 |
| Rotor Capacity | 1 type |
| Run Time | 10sec-99min/Continuous |
| Motor | Brush-less DC motor |
| Display | LCD |
| Safety Devices | Door interlock |
| Acceleration/Braking time | 40s↑40s↓ |
| Power | Single-phase, 200V-240V,50Hz/60Hz, 5A; 380W |
| Dimension(W×D×H) | 280mm×364mm×213mm |
| Packaging Size(W×D×H) | 450mm*380mm*310mm |
| Net Weight/ Gross Weight | 9/ 10.5 kg |
| Certification | CE, FDA, EAC |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
Available rotors
![]() | Cat. No.19400047
CFG-14D & CFG-12D Max. speed: 12000rpm Max. RCF: 13680×g Rotor capacity: capillary tubes×24 Rotor material: High strength aluminum |
Available adapters
![]() | Cat. No.119500001
2mL to 0.2mL rotor adapter, used with A12-2, A12-2P, AS24-2 and CAT. NO. 19400013 rotors, 24pcs/pk |
![]() | Cat. No.119500002
2mL to 0.5mL rotor adapter, used with A12-2, A12-2P, AS24-2 and CAT. NO. 19400013 rotors, 24pcs/pk |
![]() | Cat. No.119500003
Rotor adapter, used with A12-10P, 12pcs/pk |
-
商品-86℃ Chest Freezer, ULF86-H Series
-
商品Medical Cooler Box, CLR-8
-
商品Flame Photometer, FP-I Series
-

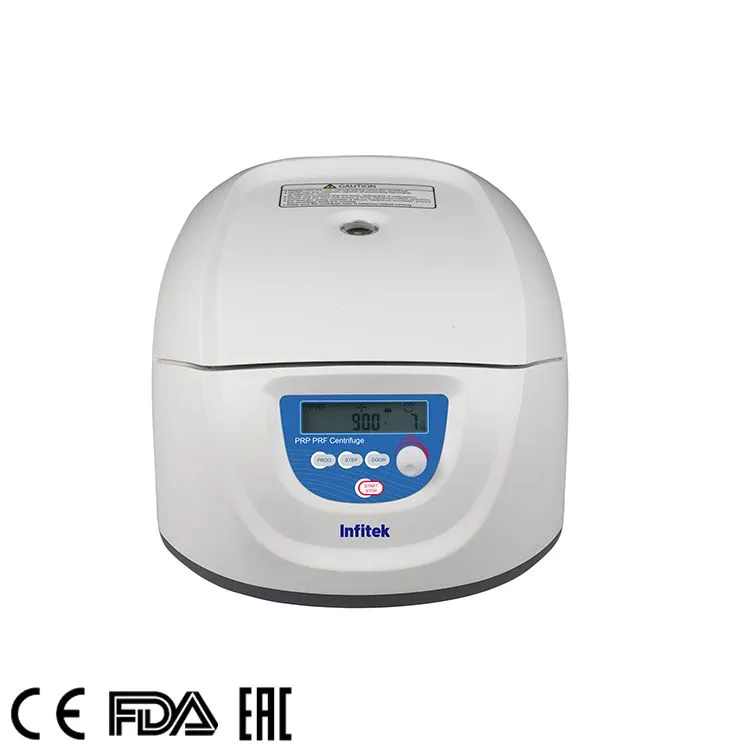

商品Clinical Centrifuge, Low speed, CFG-4.5D
-
