Description
Description

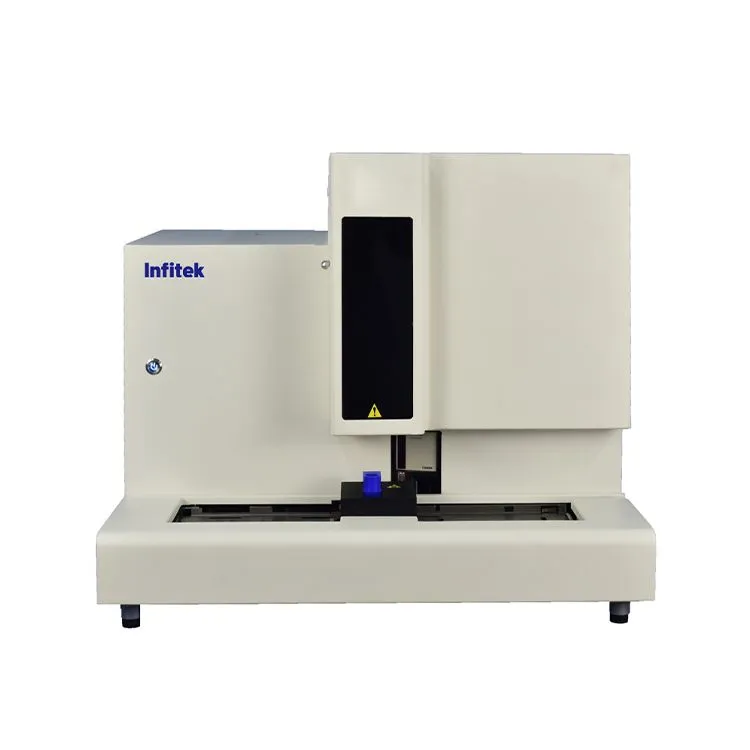

UA-S3-120 Fully Automatic Urine Sediment Analyzer can store clinical data, dry chemical index, microscopic examination results and other expansion projects.
Features
- 4-channel design
- channel injection design, channel settling, cleaning and other detection functions fully guarantee the speed and efficiency of specimen detection.
- Auto focusfunction
Automatic focus correction of the microscope ensures clear and complete sample shooting,which reduces maintenance costs.
- Self-earning and training function
The target of misidentification of the instrument can be modified by the operator.After training, the memory can be stored and automatically modeled.
Specifications
| Model | UA-S3-120 |
| Test Parameters | Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell,Sperm, Calcium Crystal, Oxalate Crystal Bacteria,Yeast, Amorphous Urates, Mucus etc. |
| Test Principle | Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique |
| Channel | Four channels fixed flow counting cell |
| Sample Volume | Minimum volume:3mL,Aspiration volume:1mL |
| Test Speed | 120 samples/hour |
| Aspiration Volume | 1ml |
| Test Sensitivity | 5 cells/μL |
| Accuracy | >95% |
| Repeatability | CV<10% |
| Cross Contamination Rate | <0.05% |
| Data Storage | 200,000 |
| Report Mode | International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results |
| Environment | Temperature:15°C~35°C
Optimum temperature: 20°C~25°C Relative humidity:≤75% |
| Electricity | AC220V±10% , 50Hz |
| Dimensions(L*W*H) | 660mm*440mm*570mm |
| N.W./G.W. | 37kg/95kg |
| Shipping Dimension(L*W*H) | 1150*760*770mm |
-
