Description
DESCRIPTION

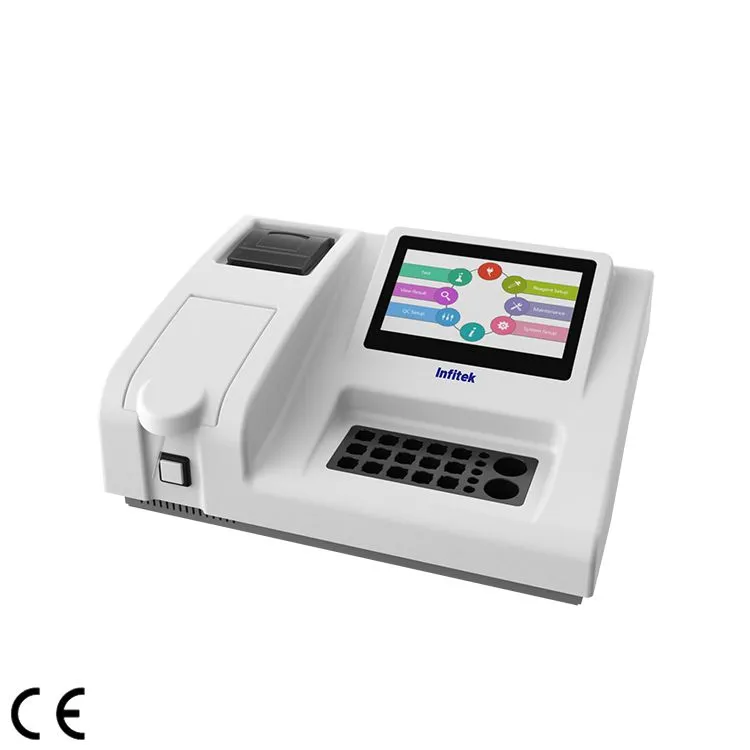

Semi-Auto Biochemistry Analyzer is suitable for the analysis of serum, plasma, urine and other body fluid samples, and can complete the test of biochemical, special protein, drug monitoring and blood coagulation items
- Flow cell & cuvette testing mode
- Huge storage of more than 300 programs & 200000 sample results
- Blood coagulation function: The instrument can perform blood coagulation routine tests: PT,APTT, TT and can measure blood coagulation time
- Different vacancies on the multifunctional incubator can be used for different sizes of test tubes, cuvettes, etc(22 incubation positions in total).

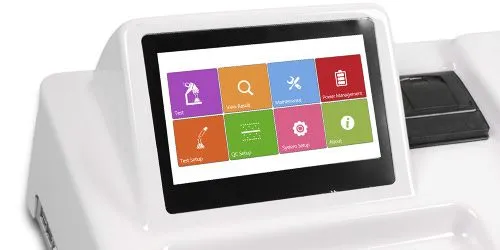

![]() | 7″ inch true color touch screen(800*480 pixels) |

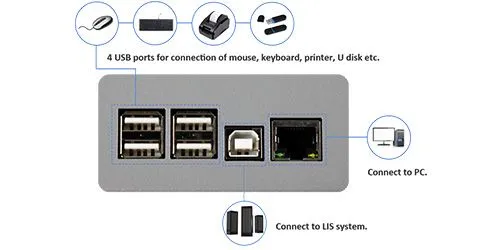

![]() | 5 USB ports & 1 ethernet port Mouse, keyboard and printer can be connected freely, easy transmission of LIS data. |

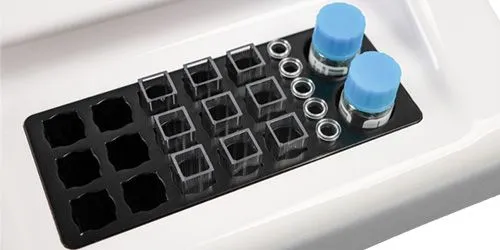

![]() | Multifunctional incubator & blood coagulation function Multifunctional incubator specially designed for chemistry and coagulation tests, different holes can be used to put sampe tubes, chemistry cuvettes, coagulation cuvettes, accurate temperature control, more efficient sample incubation |

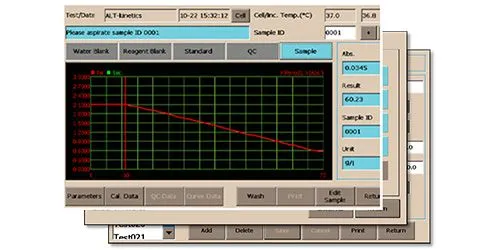

![]() | Windows embedded compact 7 smart operation system More convenient to edit test items freely, clear presentation of real-time curve, calibration, quality control and sample results. |
SPECIFICATIONS
| Model | BA-SA-100C |
| Test method | 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation. |
| Optics | 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional. |
| Lamp house | Long-life tungsten halogen lamp(6V/10W), auto-sleep function. |
| Display | 7.0″ TFT LCD with touch screen, 800*480 pixels. |
| Printer | Build-in thermal printer, 57mm printer paper. |
| Temperature | 25,30, 37°C and Room temperature. By means of Peltier elements. |
| Flow cell capacity & optical path | 32µL, 10mm |
| Resolution | 0.0001 Abs. |
| Photometric range | 0.0000-4.0000 Abs. |
| CPU | ARM Cortex-A8, 720M Hz. |
| Memory | DDR2 SDRAM: 1G bit; |
| Flash | 256 MB; Over 300 programs, 200000 results can be stored. |
| Interface | 4 USB Hosts, 1 USB Slave, 1 Ethernet port. USB port(host) for keyboard, mouse, printer, U disk, bar code reader etc. USB port(slave) for PC connection(support PC software control function). |
| Operational environment | Temperature: 10°C~30°C, Humidity: 30%~80% |
| Power requirement | Wide power supply AC 100-240V, 50/60 Hz |
| Dimension | 400*300*160mm(L*W*H) |
| Language | Russian、English、Portuguese、Spanish、Chinese |
-

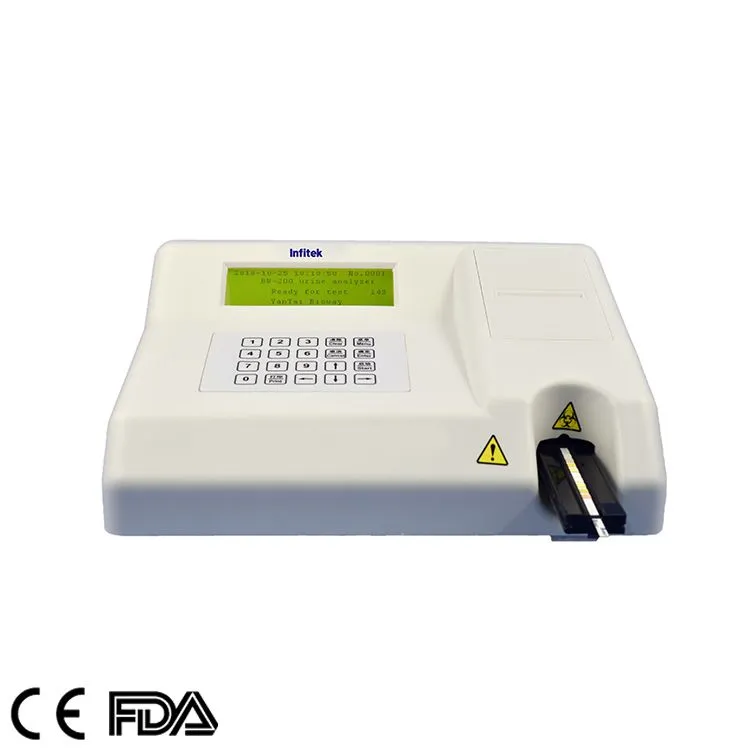

商品Semi-Automatic Urine Analyzer, UA-SA-200
-
