Description
DESCRIPTION
Product Overview

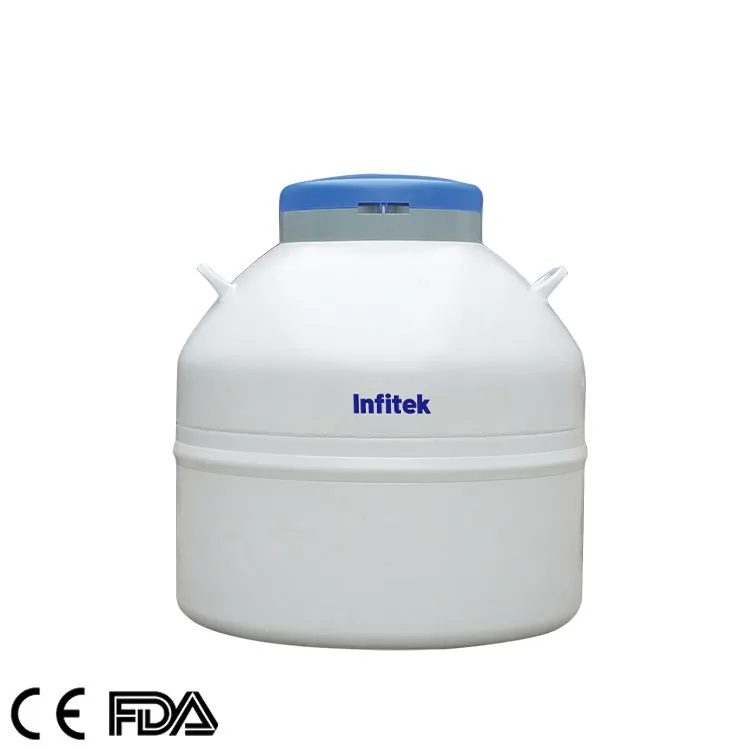

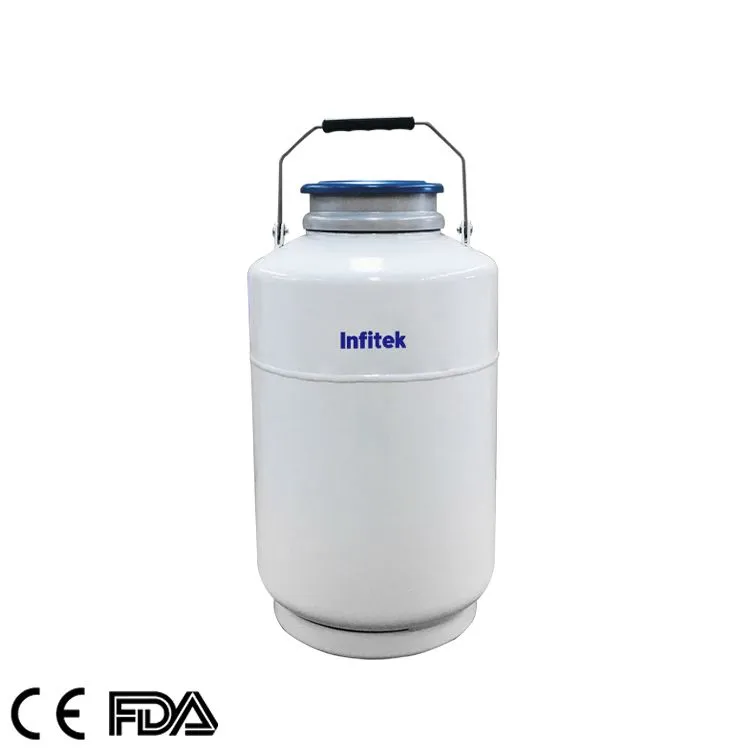

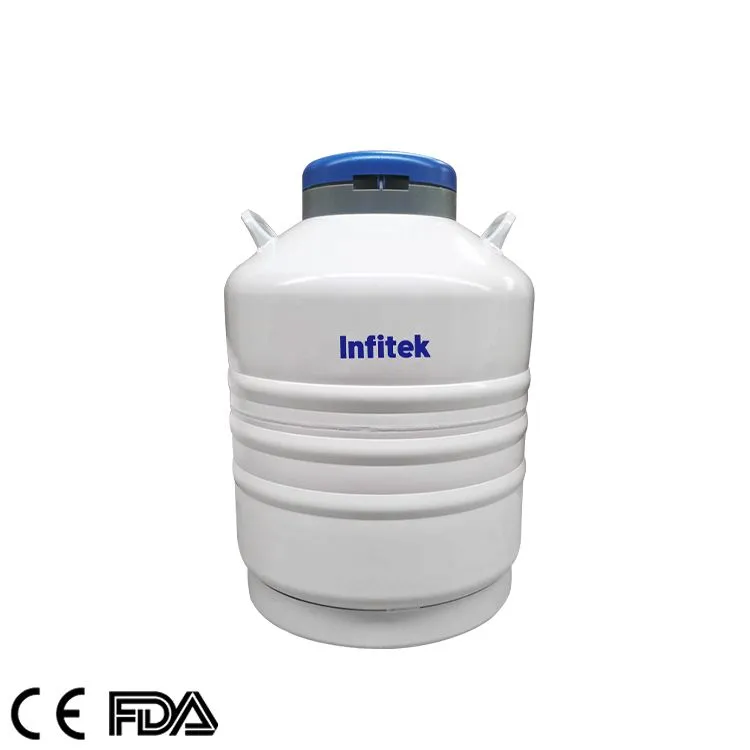

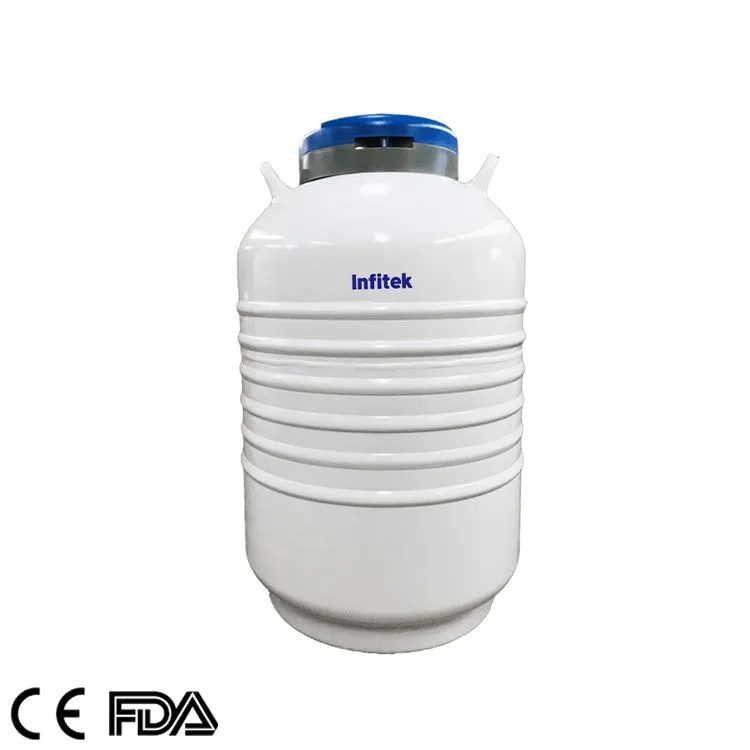

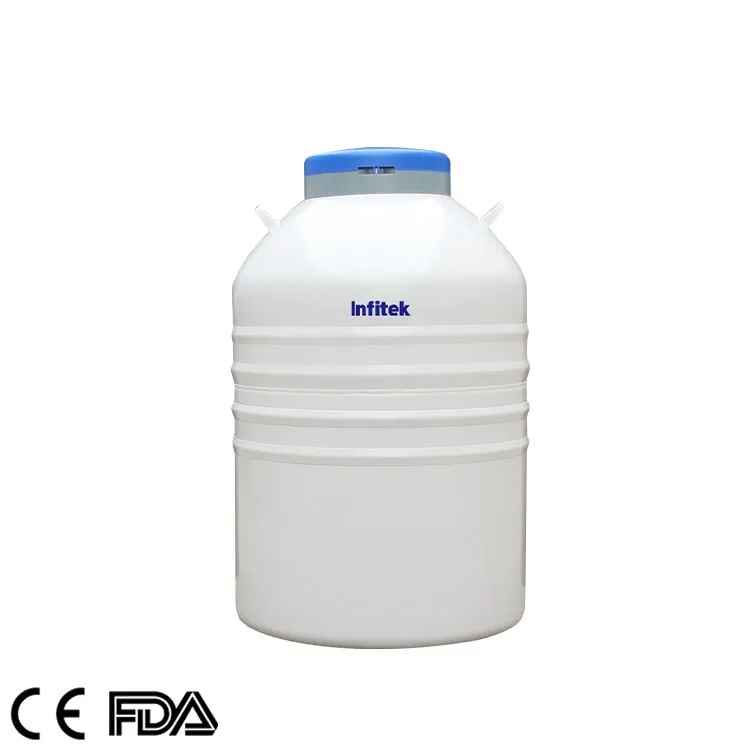

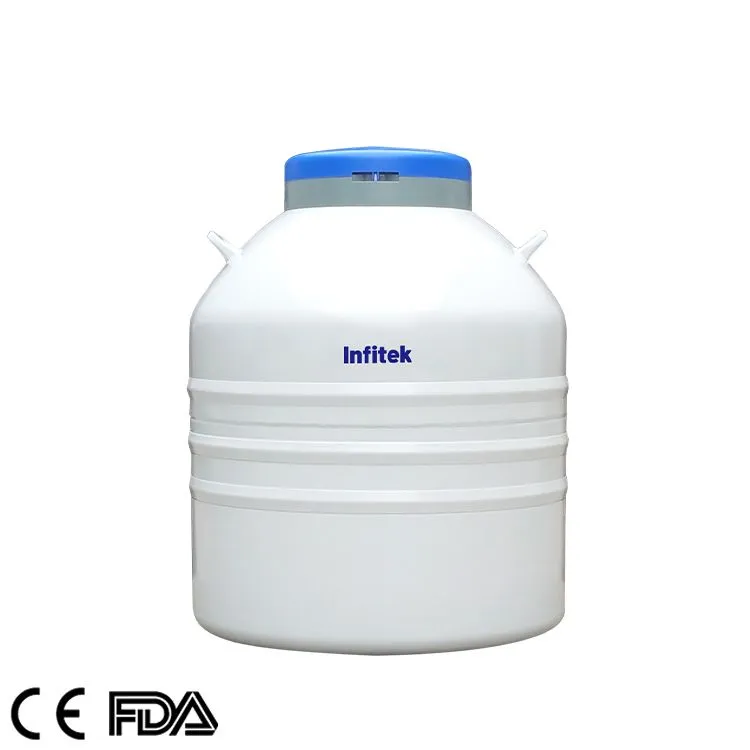

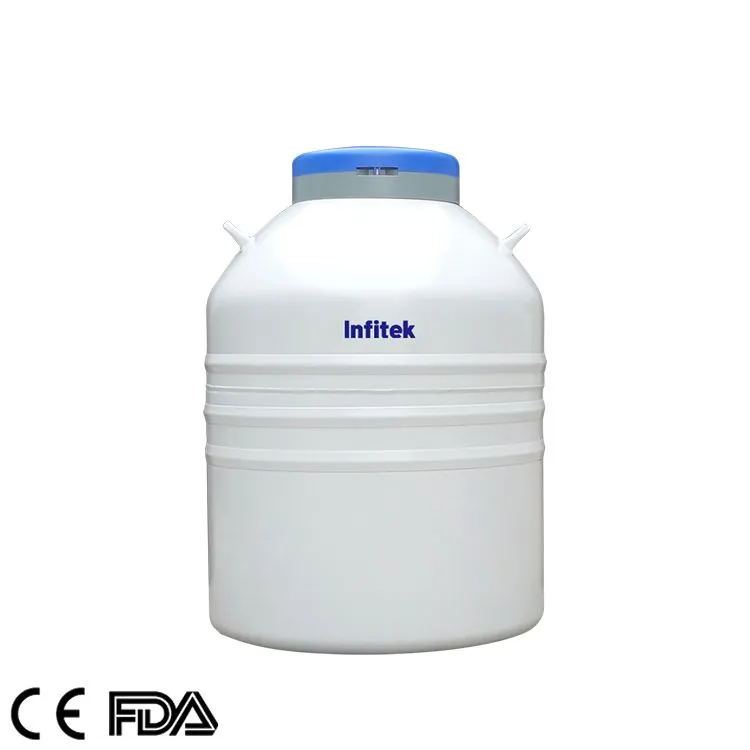

Laboratory series combines the advantages of low liquid nitrogen consumption and medium storage capacity. It has the advantages of light weight, less space occupation and high efficiency storage of large sample freezing. It can meet the different needs of laboratory professionals. All models include freeze shelves and PC freeze boxes to ensure easy storage of samples.
Product Features
- Durable aluminum structure;
- Matching freezing shelves and freezing boxes:
- Large capacity and low liquid nitrogen consumption;
- Optional safety lock cover structure to prevent othersfrom unlocking without authorization:
- Optional liquid level monitoring system;
- Optional transport vehicle;
Easy to Find Your Sample
- Designed for Jong-term storage, it is easy to take and place samples;
- The marked freezing shelves and freezing boxes are convenient for quickly andeffectively finding the required samples;

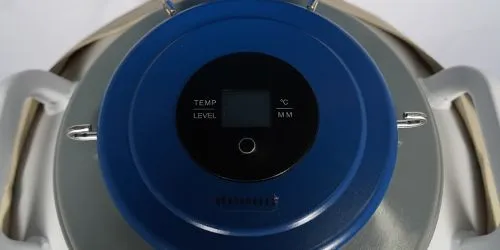

- It can be equipped with liquid level monitor to monitor the liquid level height in realtime and send out low level sound and light alarm.
 | Optional safety lock cover structure |
 | Durable aluminum structure |
SPECIFICATIONS
| Model | LNC-L10-125 | LNC-L30-125 | LNC-L35-125 | LNC-L47-127 | LNC-L50-125 | |
| LN2 Capacity (L) | 10 | 31.5 | 35.5 | 47 | 50 | |
| Weight Empty (kg) | 6.3 | 13 | 14.6 | 18.2 | 17.3 | |
| Neck Opening (mm) | 125 | 125 | 125 | 127 | 125 | |
| Outer Diameter (mm) | 300 | 462 | 462 | 508 | 462 | |
| Overall Height (mm) | 554 | 704 | 748 | 718 | 818 | |
| Static Evaporation Rate (L/day) | 0.42 | 0.35 | 0.36 | 0.36 | 0.45 | |
| Static Holding Time (day) | 24 | 90 | 97 | 130 | 110 | |
| Package Dimension (W*D*H)(mm) | 490*490*990 | |||||
| G.W.(kg) | 27 | |||||
| Maximum Storage Capacity | ||||||
| Racks 2mL Freezing Tube | Number of Racks (ea) | 1 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Dimension (mm) | 82×84 | 82×84 | 82×84 | 105×100 | 82×84 | |
| Vial Boxes Dimension (mm) | 76×76 | 76×76 | 76×76 | 98 | 76×76 | |
| Boxes per Rack (ea) | 4 | 4 | 5 | 5 | 6 | |
| 1.2; 1.8&2ml Vials (Internally Threaded) | 100 | 600/700 | 750/875 | 1100/1295 | 900/1050 | |
| Racks 5mL Freezing Tube | Number of Racks (ea) | — | — | — | — | — |
| Rack Dimension (mm) | — | — | — | — | — | |
| Vial Boxes Dimension (mm) | — | — | — | — | — | |
| Boxes per Rack (ea) | — | — | — | — | — | |
| 1.2; 1.8&2ml Vials (Internally Threaded) | — | — | — | — | — | |
| Optional Accessories | ||||||
| Lockable Lid | Optional | Optional | Optional | Optional | Optional | |
| PU Bag（Protective jacket） | — | Optional | Optional | — | Optional | |
| Smart Cap | Optional | Optional | Optional | Optional | Optional | |
| Roller Base | — | Optional | Optional | Optional | Optional | |
| Model | LNC-L65-216 | LNC-L95-216 | LNC-L115-216 | LNC-L145-216 | LNC-L175-216 | |
| LN2 Capacity (L) | 65 | 95 | 115 | 145 | 175 | |
| Weight Empty (kg) | 38.3 | 41.3 | 42.3 | 48.9 | 53.8 | |
| Neck Opening (mm) | 216 | 216 | 216 | 216 | 216 | |
| Outer Diameter (mm) | 681 | 681 | 681 | 681 | 681 | |
| Overall Height (mm) | 712 | 774 | 846 | 946 | 1060 | |
| Static Evaporation Rate (L/day) | 0.78 | 0.97 | 0.94 | 0.96 | 0.95 | |
| Static Holding Time (day) | 83 | 98 | 122 | 151 | 184 | |
| Maximum Storage Capacity | ||||||
| Racks 2mL Freezing Tube | Number of Racks (ea) | 6/7 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Dimension (mm) | 142×144 | 142×144 | 142×144 | 142×144 | 142×144 | |
| Vial Boxes Dimension (mm) | 134×134 | 134×134 | 134×134 | 134×134 | 134×134 | |
| Boxes per Rack (ea) | 4 | 5 | 6 | 8 | 10 | |
| 1.2; 1.8&2ml Vials (Internally Threaded) | 2400/2800 | 3000/3500 | 3600/4200 | 4800/5600 | 6000/7000 | |
| Racks 5mL Freezing Tube | Number of Racks (ea) | 6/7 | 6/7 | 6/7 | 6/7 | 6/7 |
| Rack Dimension (mm) | 142×144 | 142×144 | 142×144 | 142×144 | 142×144 | |
| Vial Boxes Dimension (mm) | 134×134 | 134×134 | 134×134 | 134×134 | 134×134 | |
| Boxes per Rack (ea) | 2 | 2 | 3 | 4 | 5 | |
| 1.2; 1.8&2ml Vials (Internally Threaded) | 972/1134 | 972/1134 | 1458/1701 | 1944/2268 | 2430/2835 | |
| Optional Accessories | ||||||
| Lockable Lid | Optional | Optional | Optional | Optional | Optional | |
| PU Bag（Protective jacket） | — | — | — | — | — | |
| Smart Cap | Optional | Optional | Optional | Optional | Optional | |
| Roller Base | Optional | Optional | Optional | Optional | Optional | |

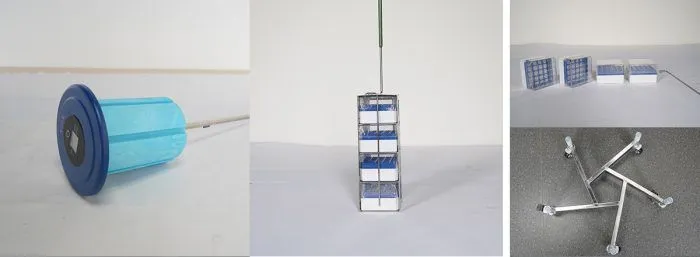

ACCESSORIES

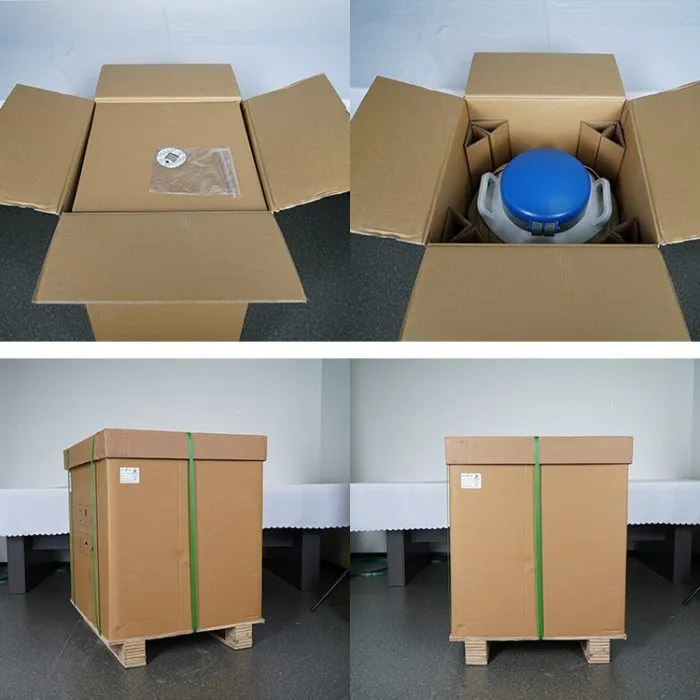

PACKING
店家其他推薦商品
-
商品Pilot Freeze Dryer, LYOL Series
-
商品Hotplate Magnetic Stirrer, Temp. 380°C, HPS-380-1
-
商品Digital Overhead Stirrer, OHS-40S
-

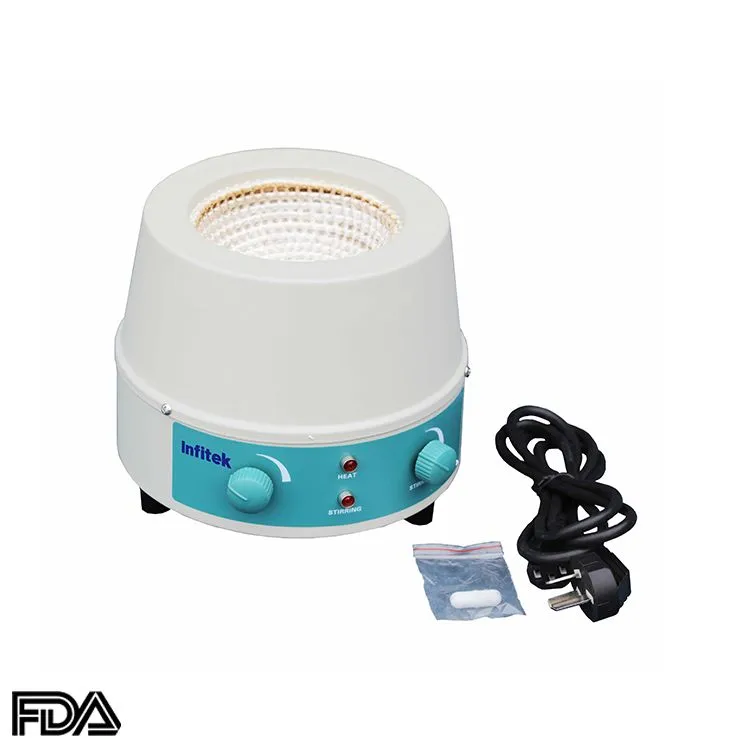

商品Magnetic Stirring Heating Mantle, HMSA Series
-
