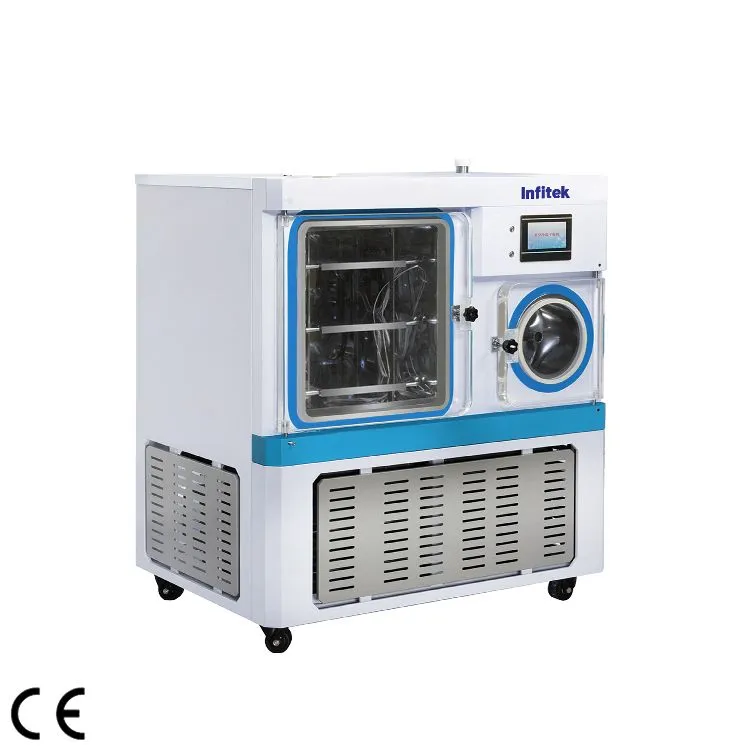

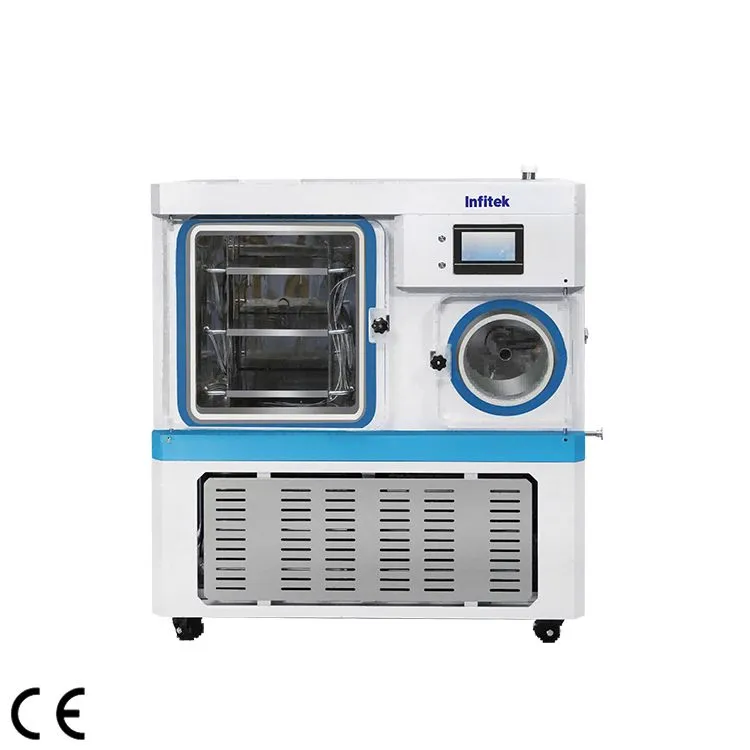

  • Pilot Freeze Dryer, LYOL Series
  • Pilot Freeze Dryer, LYOL Series

  • Pilot Freeze Dryer, LYOL Series

  • 商品型號

  • 商品規格

    Final condenser temp (℃): -80
    Freeze drying area (m2): 0.24-2
    Liquid material loading capacity (L): 4.5-40
    Condenser capacity (Kg/24h): 6.5-40
    Control System: Touch screen
    Cooing: Air cooling with SECOP compressor

分享到

Description

Key Features:

  1. 7 inches colorful touch panel can display the product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
  2. Rack temperature can adjustable, controllable which helps to search for freeze-drying technology.
  3. Condenserand drying chamber are separately designed which is with high moisture capture and fast dry time.
  4. With USB interface to export the data, convenient forinformation management.
  5. Large-volume stainless steel condenserwithout coils, which can realize independent sample pre-freezing.
  6. Equipped with two working modes, manual and automatic, 40 programs can be set in the automatic operation program, and each program has 40 temperature control sections to meet the requirements of different freeze-drying processes of users;
  7. User level and password can be set, decentralized operation and management.
  8. Can save hundreds of process recipes. each group contains 40 temperature control sections to improve process optimization rate

Reliability：

  • In-situ freeze-drying design,avoid the contamination during material transfer;
  • High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
  • The rack is cooled and heated by Silicone oil for more uniform temperature and 1°C accuracy.
  • Condenser and operation panel are made by stainless steel.
  • High transparent organic glass in Drying chamber helps users to observe materials changes.
  • Pirani vacuum gauge is used to ensure stable freeze-drying performance
  • Automatic defrost function.

Applications：

Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Optional:

  • Optional eutectic point test function, convenient for users to better explore the freeze-drying process

Specifications

ModelLYOL-4SLYOL-4TLYOL-7SLYOL-7TLYOL-10SLYOL-10TLYOL-20SLYOL-20TLYOL-40SLYOL-40T
TypeStandardTop-pressStandardTop-pressStandardTop-pressStandardTop-pressStandardTop-press
Freeze Drying Area(m2)0.240.240.360.360.50.51122
Shelf Temperature (℃)-50~+70-50~+70-50~+70-50~+70-50~+70-50~+70-50~+70-50~+70-50~+70-50~+70
Condenser Temperature(no-loading) (℃)≤-80≤-80≤-80≤-80≤-80≤-80≤-80≤-80≤-80≤-80
Vacuum Degree(no-loading) (Pa)≤5≤5≤5≤5≤5≤5≤5≤5≤5≤5
Condenser Capacity (L)13131313171735359090
Ice Condenser Capacity (kg/24h)6.56.56.56.5101015154040
Tray(Qty)2+12+13+13+14+14+18+28+212+212+2
Tray Dimensions(L*W*D)(mm)300*400*18300*400*18300*400*18300*400*18300*450*18300*450*18550*235*18550*235*18500*345*18500*345*18
Height Between Trays(mm)1451459090909090909090
Total Loading Capacity(L)4.54.577101020204040
Temperature Uniformity(Tray) (℃)±1±1±1±1±1±1±1±1±1±1
RefrigerantCFC-freeCFC-freeCFC-freeCFC-freeCFC-freeCFC-freeCFC-freeCFC-freeCFC-freeCFC-free
Electric DefrostingYYYYYYYYYY
Stoppering Mode/Automatic hydraulic/Automatic hydraulic/Automatic hydraulic/Automatic hydraulic/Automatic hydraulic
Total Qty. Of Vial Φ22468468702702104010402016201641004100
Total Qty. Of Vial Φ1686486412961296194419443944394478007800
Total Qty. Of Vial Φ12158415842376237634563456702070201440014400
Consumption(kW)3.54.53.54.56.57.59.510.51516
ElectricityAC380V/50Hz(standard), other electricity type can be customized
External Dimensions(W*D*H)(mm)1339*932*13191339*932*16011339*932*13191339*932*16011337*1015*14541337*1015*17541633*1027*16121633*1027*19121260*3710*20761260*3710*2476
Shipping Dimensions(W*D*H)Main body1490*1140*16601490*1140*19601490*1140*16601490*1140*19601660*1260*17101660*1260*20601960*1340*18601960*1340*22101600*2050*24001600*2050*2400
Vacuum pump850*330*450850*330*450850*330*450850*330*450850*330*450850*330*4501010*340*5101010*340*5101010*340*5101010*340*510
Gross Weight(kg)550600580630690740900950Around2500Around2500
