Description
![]() | ![]() | ![]() |
| MGS-1C | MGS-6P | MGS-7S |
Features:

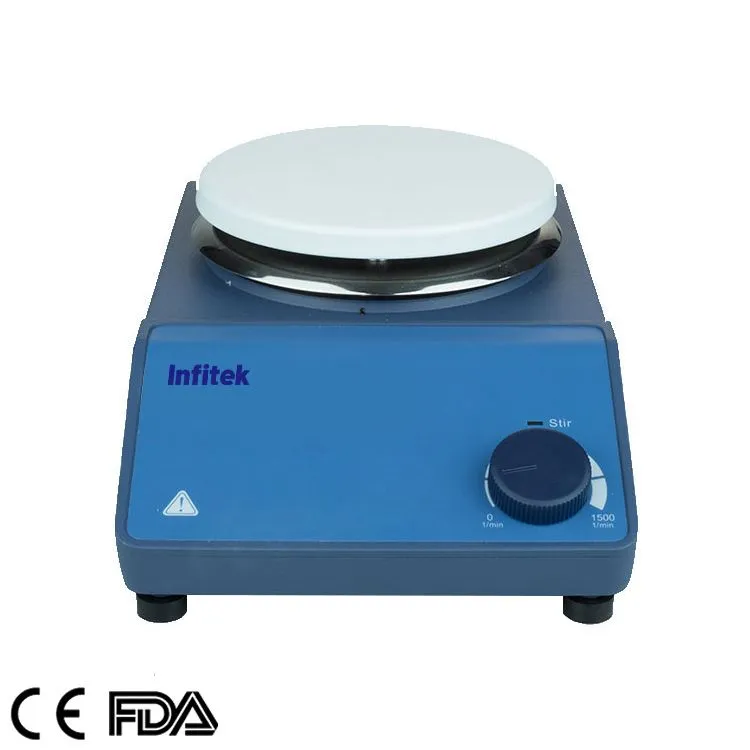

MGS-1C
•Maintenance free brushless DC motor.
•Speed range of 0-1500 rpm.
•Max. stirring quantity of H2O at 20L.
•Stainless steel work plate cover with ceramic material provides good chemical resistance performance.

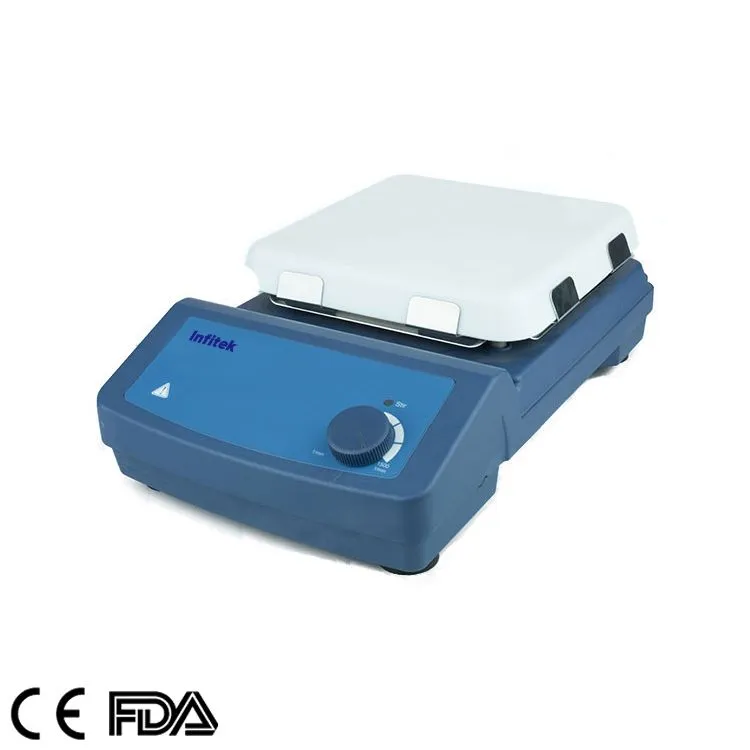

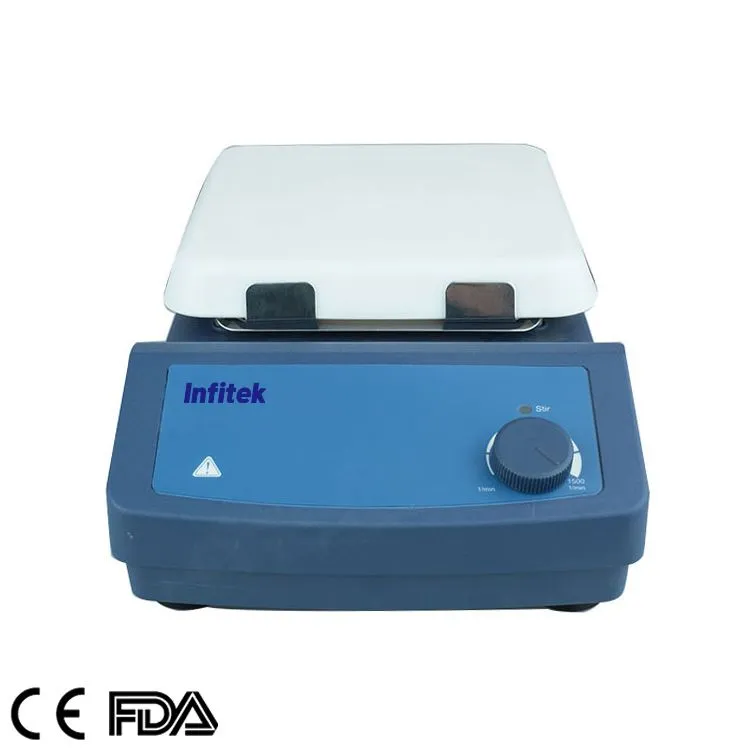

MGS-7S
•Speed range of 0-1500rpm.
•Max. stirring quantity of H2O at 10L.
•Ceramic work plate provides excellent chemical resistant performance.

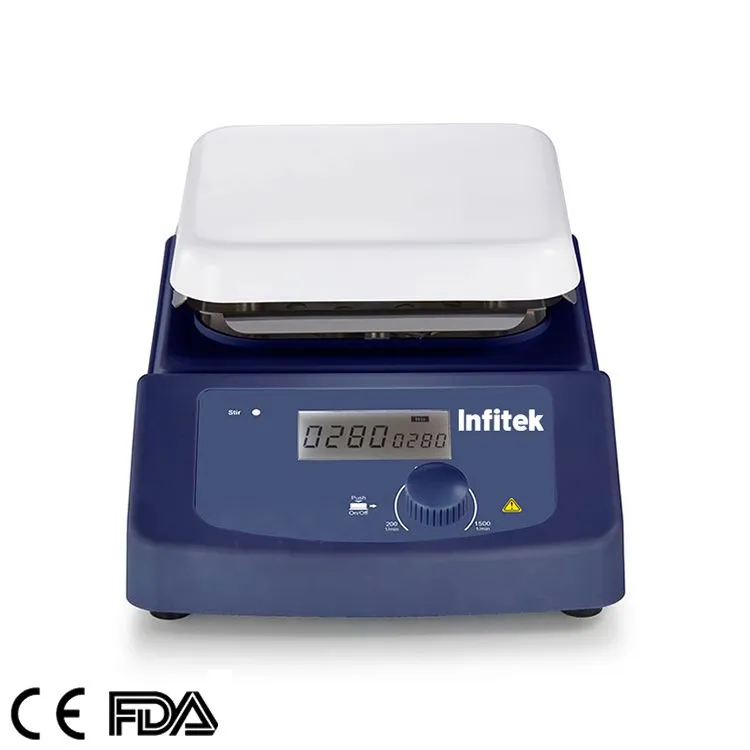

MGS-6P
•High resolution LCD displays actual speed.
•Brushless DC motor is maintenance free
•Aluminum cover with ceramic work plate provides good chemical resistant performance.
•Digital speed control with max. speed up to 1500rpm.
•Max. stirring quantity of H2O at 5L.
Specifications
| Specifications | MGS-1C | MGS-7S | MGS-6P |
| Work plate dimension [W×H] | φ 135mm (5 inch) | 184×184mm (7 inch) | 140 ×140mm |
| Work plate material | Stainless steel cover with ceramic | Glass ceramic | Aluminum cover with ceramic |
| Motor type | Brushless DC motor | Shaded pole motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity [H2O] | 20L | 10L | 5L |
| Max. magnetic bar [length] | 80mm | 80mm | 40mm |
| Speed range | 0-1500rpm | 0-1500rpm | 200-1500rpm |
| Speed display | Scale | Scale | LCD |
| Protection class | IP42 | IP21 | IP21 |
| Motor input power | 18W | 15W | 2.4W |
| Motor output power | 10W | 1.5W | 1.8W |
| Power | 30W | 30W | 10W |
| Voltage | 100-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-240V, 50/60Hz |
| Dimension [W×D×H] | 160×280×85mm | 215×360×112mm | 320×180×108mm |
| Weight | 2.8kg | 3.8kg | 2.2kg |
| Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
-
商品(Defrost)Corpse Refrigerator, 4 corpses/6 corpses
-
商品Grating Spectrophotometer, SP-CLR660A, SP-CLR660B
-
商品Hydrogen Peroxide Plasma Sterilizer, STV Series
-
商品Adjustable Speed Vortex Mixer, VMX-S
-
商品Vortex Mixer, VMX-SK
-
商品Multi-Tube Vortexer, VMX-MT
-
商品CO2 Incubator, ICB-CO2-Y Series
-

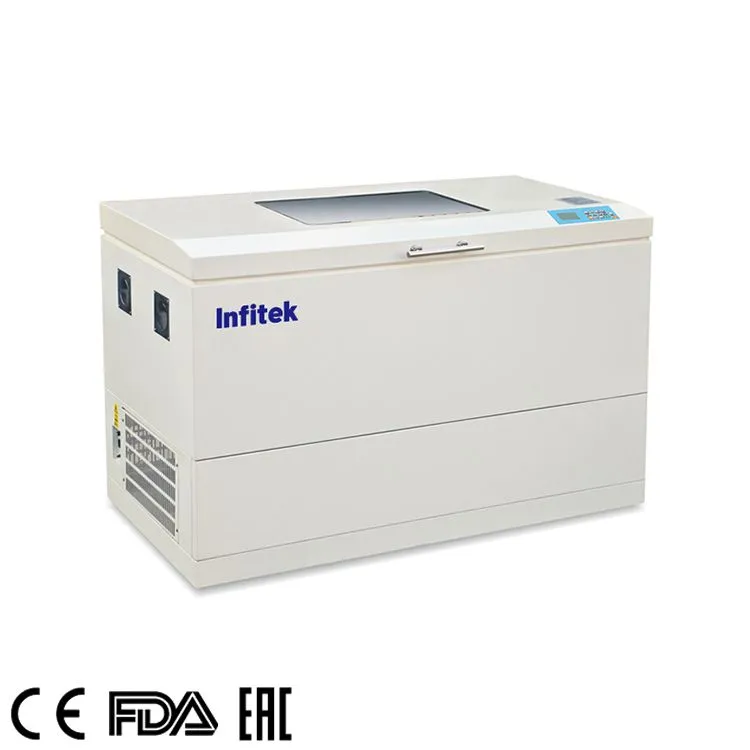

商品Constant Temperature Shaking Incubator(Benchtop), ICB-S20,ICB-S50
-
