Description

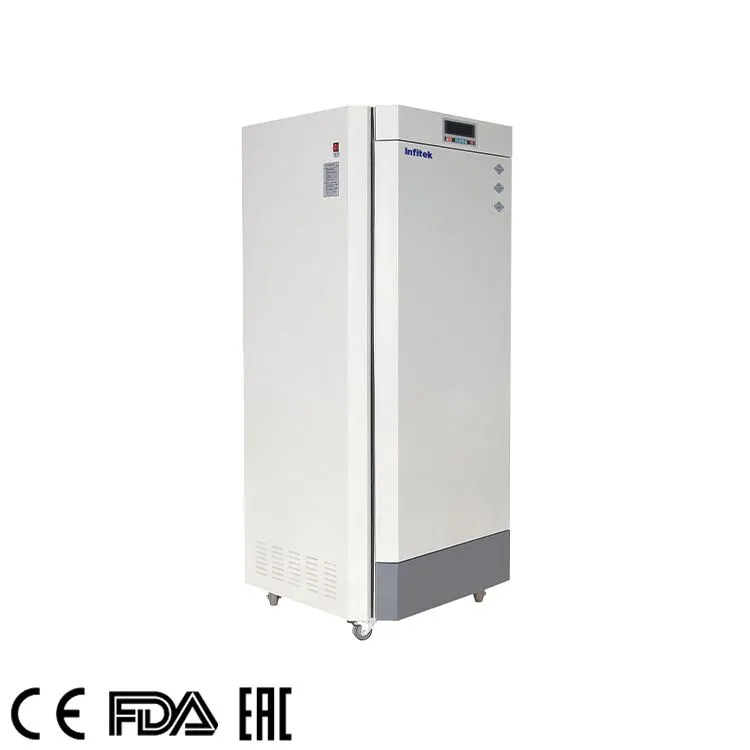

The Plant Growth Chamber ICB-L-B Series is widely applied to microbial tissue and cell culture, seed germination, seedling culture test, plant cultivation, raising of insects and small animals, etc.. Different environmental and climatic conditions can be accurately simulated.
Energy saving
- Imported compressor, safe and reliable.
- Defrosting function: three-stage electric heating defrosting program control to ensure that frost will affect the temperature in the box during the low temperature operation of the equipment.
- Adopts energy-saving LED cold light source;The light intensity is adjustable in six levels to meet plants with different light needs.
Intelligent LCD control
- Large-screen LCD display: real-time display of parameters, self-locking function of screen, simple and convenient operation.
- Intelligent control: The intelligent temperature control system can set up to 100 cycles, and 30 wave bands can continuously control temperature, light level and running time.
- Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.
Internal circulation system
- Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
- The circulation system adopts the back suction and the bottom vertical air supply mode.
- The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.
Dedicated sheet metal processing
- The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
- The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
- Built in observation window to make the objects in the chamber clear at a glance.
- The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
- Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
- With limited temperature control sound and light alarm system.
- Self-diagnosis function: display fault information, which is convenient for judging the fault point..
- Waterproof stainless steel heating tube, corrosion resistance, long service life.
Specifications
| Model | ICB-L250B | ICB-L350B | ICB-L450B | |
| Capacity(L) | 250 | 350 | 450 | |
| Circulation | Forced air convection | |||
| Dimension
(W*D*H) | Internal
(mm) | 555*450*1100 | 550*550*1200 | 700*550*1200 |
| External
(mm) | 680*680*1760 | 780*780*1900 | 1030*780*1900 | |
| Temperature | Range
(℃) | With lighting: 10-60
Without lighting: 4-60 | ||
| Fluctuation
(℃) | ±1 | |||
| Resolution
(℃) | 0.1 | |||
| Uniformity
(℃) | ±1 | ±2 | ||
| Sensor | PT100 | |||
| Controller | PID | |||
| Display | LCD | |||
| Timer(min) | 1-9999 | |||
| Material | Internal | Stainless steel | ||
| External | Electro-galvanized steel with antimicrobial powder coating | |||
| Shelves | 3 | 3 | 4 | |
| Test Hole (mm) | Optional φ25,50,80 | |||
| Safety Device | Leakage protector/Over- temperature alarm | |||
| Electricity | Voltage/Frequency
(V/Hz) | 220V/50 | ||
| Consumption
(W) | 640 | 1600 | 1750 | |
| N. W./G.W.
(kg) | 110/162 | 139/260 | 175/290 | |
| Shipping Dimension (W*D*H)
(mm) | 820*770*1930 | 940*990*2080 | 910*1140*2090 | |
| Optional | 1.Independent temperature limiting controller
2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer) | |||
