Description
Applications
It is suitable for drying, baking, wax melting, and heat treatment in laboratories of industrial and mining enterprises, colleges and universities, scientific research institutes, medical and health care, etc.
Features
Energy-saving
Adopt a new synthetic silicone sealant strip, that can run at high temperatures for a long time.
The temperature rises rapidly, forced convection, and the dry hot air passes directly through the heated object, and the drying and disinfection time is significantly shortened.
The three-gear fan speed can be adjusted and timed by instrument setting, and the shelf can be moved to facilitate cleaning inside the box.
Intelligent LCD control
High-precision microcomputer LCD temperature controller, accurate and reliable temperature control.
Function: timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning, automatic speed regulation of fan, door control (Once the door is opened, the heating will be automatically stopped to prevent the machine from overheating effectively), etc.
Internal circulation system
Forced convection system
Equipped with a fan speed control switch, users can choose to “adjust the wind speed manually” or directly choose “automatic speed regulation of fan according to their needs.
Dedicated sheet metal processing
The shell of the product is made of a high-quality cold-rolled steel plate and the surface is treated by a spraying process.
The inner chamber is made of 304 mirrors stainless steel.
Humanized design
Built-in thickened double-layer toughened glass observation window to make the objects in the chamber clear at a glance.
The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
Once the temperature exceeds the limit, the machine will automatically stop heating to ensure the safety of personnel and equipment.
With over-temperature control of visible & audible alarm systems.
Specifications
| Model | DOI-45H | DOI-72H | DOI-125H | DOI-210H | |
| Capacity(L) | 45 | 72 | 125 | 210 | |
| Circulation | Forced air convection | ||||
| Dimension
(W*D*H) | Internal (mm) | 350*360*350 | 400*400*450 | 450*500 * 550 | 500*600*700 |
| External (mm) | 550*495*700 | 590*535*800 | 650*635*1040 | 705*735*1190 | |
| Temperature | Range (℃) | Oven:80-300;Incubator: RT+5-80 | |||
| Fluctuation (℃) | Used for incubator: ±0.5；Use for drying oven:±1 | ||||
| Resolution (℃) | 0.1 | ||||
| Uniformity (℃) | ±2.5 | ||||
| Sensor | PT100 | ||||
| Controller | PID | ||||
| Display | LCD | ||||
| Material | Internal | Stainless steel | |||
| External | High quality cold-rolled steel plate | ||||
| Shelves | 2 | ||||
| Test Hole | 1 | ||||
| Safety Device | Over- temperature alarm | ||||
| Electricity | Voltage/Frequency
(V/Hz) | AC 220/110V, 50/60Hz | |||
| Consumption (W) | 1000 | 1500 | 2000 | 3000 | |
| N.W./G.W. (kg) | 38/46 | 47/55 | 71/81 | 85/97 | |
| Shipping Dimension (W*D*H) (mm) | 600*550*790 | 650*600*880 | 720*700*1130 | 790*750*1280 | |
| Optional | Spare shelf, RS485 port, printer, multi-segment programmable control, color touch screen temperature controller | ||||
-

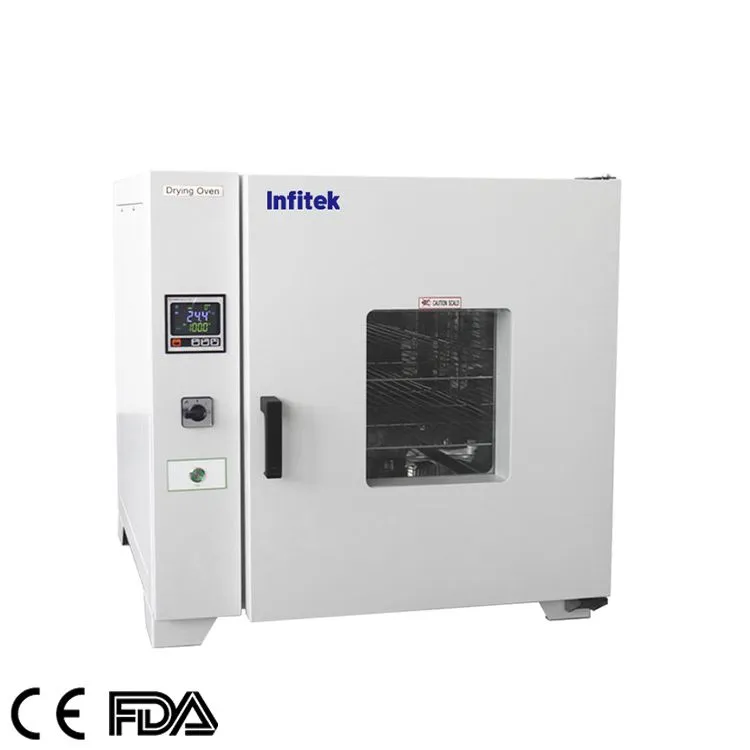

商品Forced Air Drying Oven, DOF-H140-A, DOF-H250/640/960-B
-

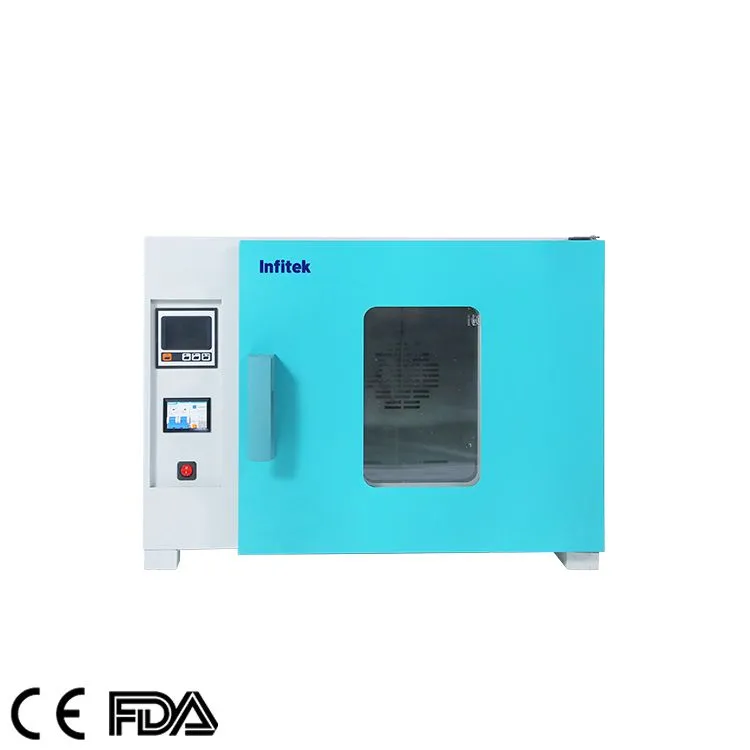

商品Forced Air Drying Oven, DOF-BA Series
-

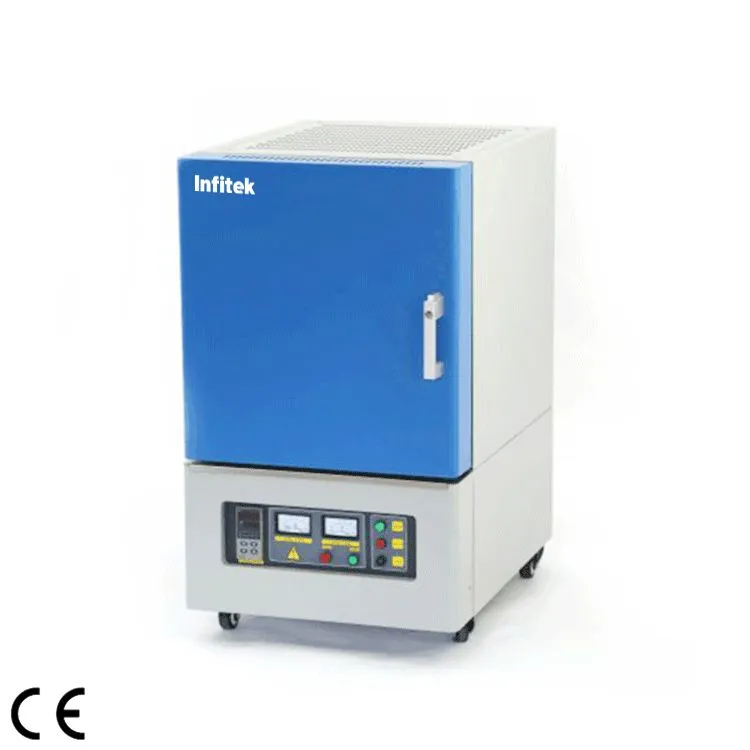

商品Muffle Furnace, 1700℃ High Temp, Box Type, FNC-BX1700 Series
-
商品Automatic Nucleic Acid Extractor, NAE-32P
-

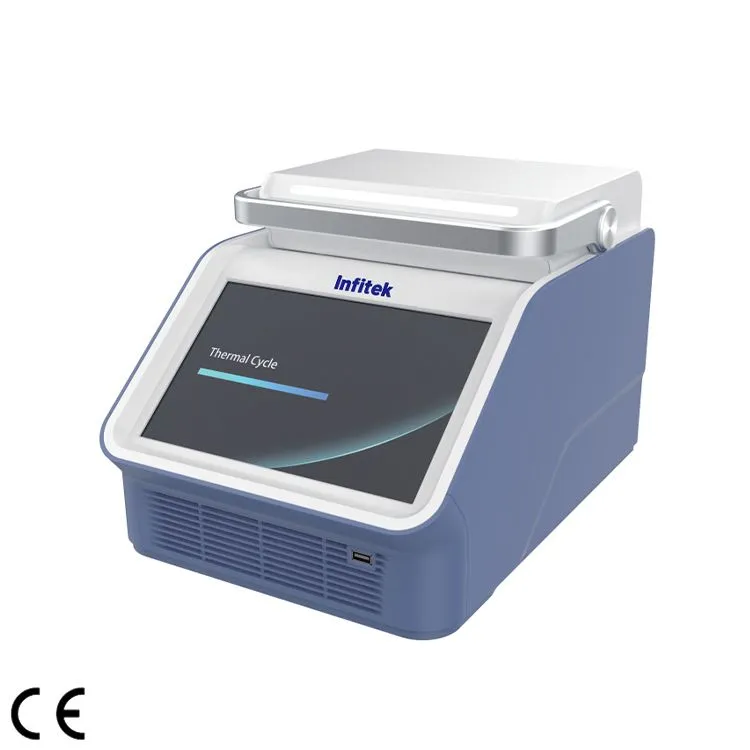

商品PCR Machine, PCR-96A
-
商品PCR Machine, PCR-482
-

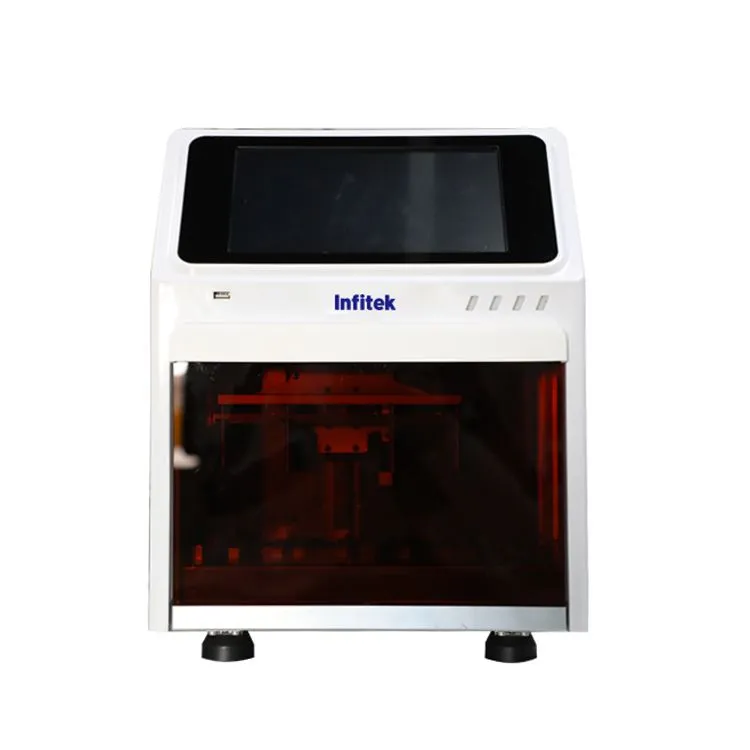

商品Nucleic Acid Extractor, Automatic, NAE-0132
-
商品Automatic Microplate Reader, MPR-D111
-
商品Microplate Reader, automatic, MPR-H200B
-

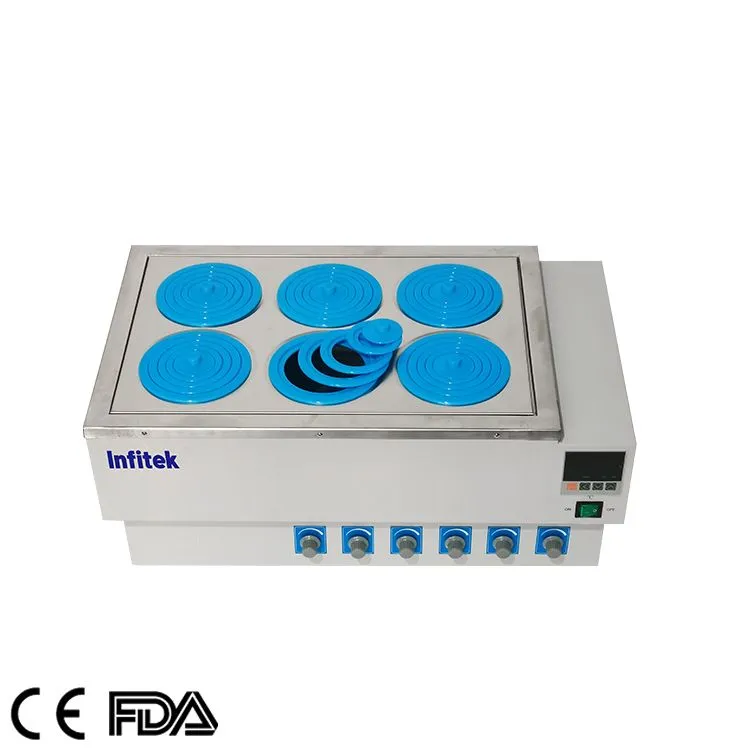

商品Water Bath, WB-M6A
