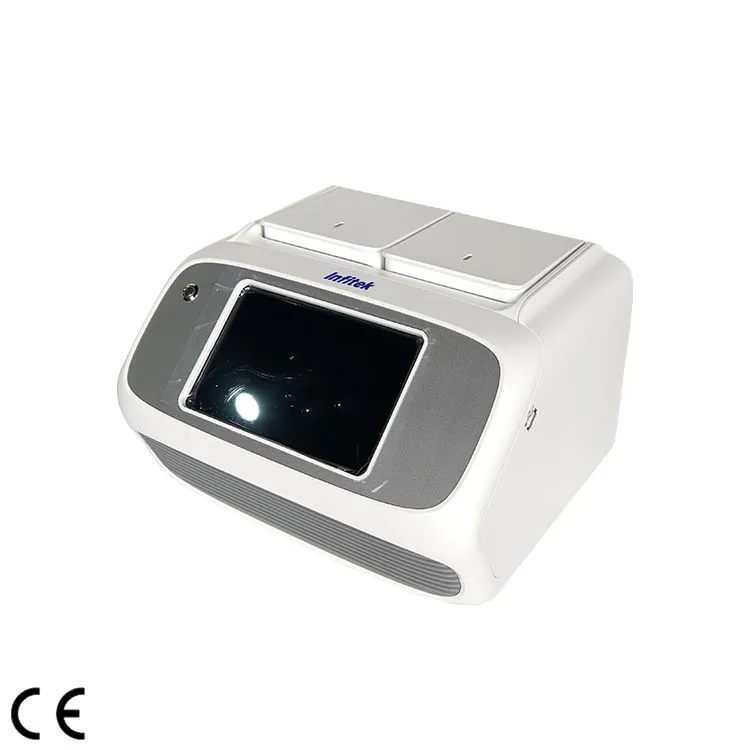

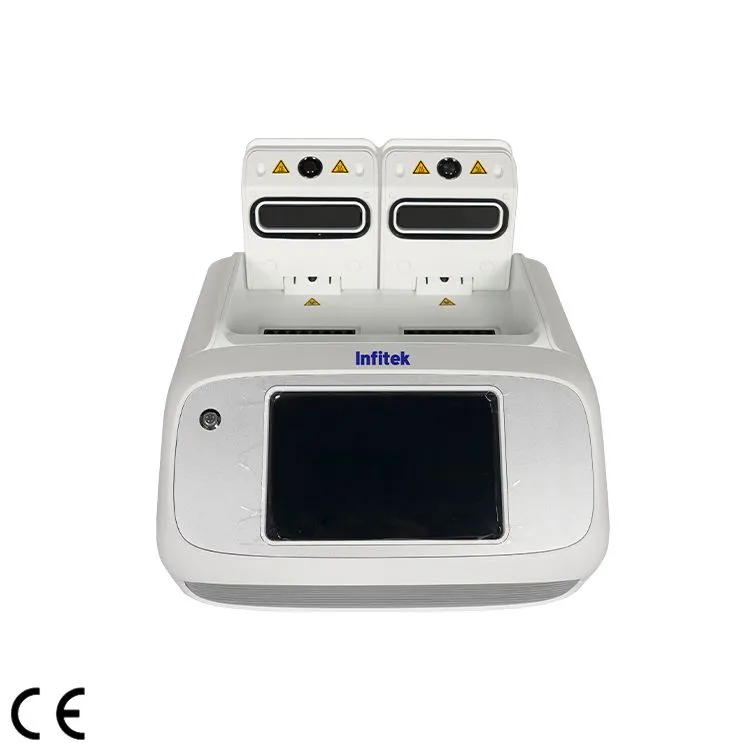

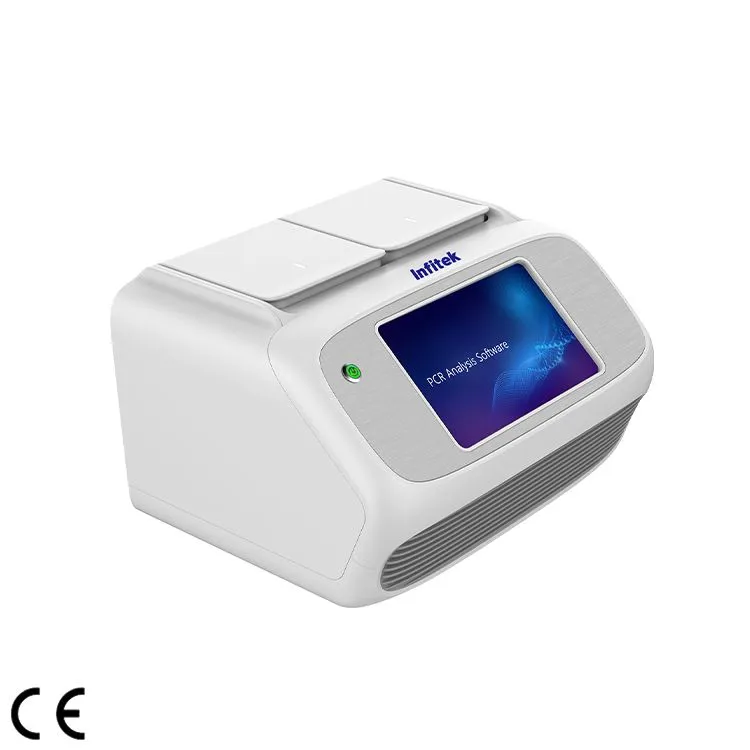

  • Real Time PCR System, PCR-Q32 Series
  • Real Time PCR System, PCR-Q32 Series
  • Real Time PCR System, PCR-Q32 Series

  • Real Time PCR System, PCR-Q32 Series

  • 商品型號

  • 商品規格

    Sample Capacity: 32×0.2ml(4×8well, dual block)
    Fluorescent channels: 4
    Constant current control circuit
    Complete quantitative analysis and printing report
    Superior performance and stable detection results

分享到

Description

Description

This product adopts four channel and double 16-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies. 7-inch high-definition TFT color touch screen, Win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.

Advantages

  • Four channels and double 16-well blocks design, can run two different programs at the same.
  • Small size, light weight, easy to carry.
  • Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, 7-inch high-definition TFT color touch screen, and embedded Win 10 operating system.
  • 20G flash memory can save 40，000 experimental data.
  • Printer as an optional which can print the records directly, no need to connect the computer.
  • Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage.
  • Black reaction block to avoid background noise.
  • LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
  • The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
  • Front shutdown button makes file data more secure.
  • Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy. It has the protection functions of over-current, over temperature, power-off data self recovery.
  • Forward and backward air vent design, can be placed side byside, saving space.

Specifications

Model PCR-Q32-4F PCR-Q32-4
Sample Capacity 32×0.2ml(4×8well, dual block)
Consumable Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume 15-100μL
Temperature control technology Marlow customized Peltier allow 1,000,000 cycles
Temperature Range 0-100℃ (Resolution: 0.1℃)
MAX. Ramp Rate 8℃/s 5℃/s
Temperature fluctuation ±0.1℃
Uniformity ±0.25℃
Accuracy ±0.25℃
Hot Lid Temperature 30-110℃((Adjustable, default 105℃))
Temperature Control Block/Tube
Excitation Wavelength 460—628nm
Emission Wavelength F1: 520-540nm
F2: 540-580nm
F3: 571-612nm
F4: 628-692nm
Factory Calibrated Dyes F1: FAM/SYBR Green I, F2: HEX/VIC/JOE/TET, F3: ROX, F4: CY5
Excitation Long life LED
Detection High sensitivity photoelectric detector
Dynamic Range 1-1010 Copies
Sensitivity 1 copy
Feature function Quantitative/qualitative analysis, Melting curve, Genotyping
Date Export Formats Excel, CSV, Txt
Printing Report can be printed (optional USB thermal printer)
Control Method 7 inch color TFT touch screen, Can be connected to computer control
Communication USB2.0
Dimension  (L×W×H) 300×267×198mm
Net Weight 11Kg 8 Kg
Electricity 220VAC, 50Hz; DC29V 600W 220VAC, 50Hz; DC15V 255W
