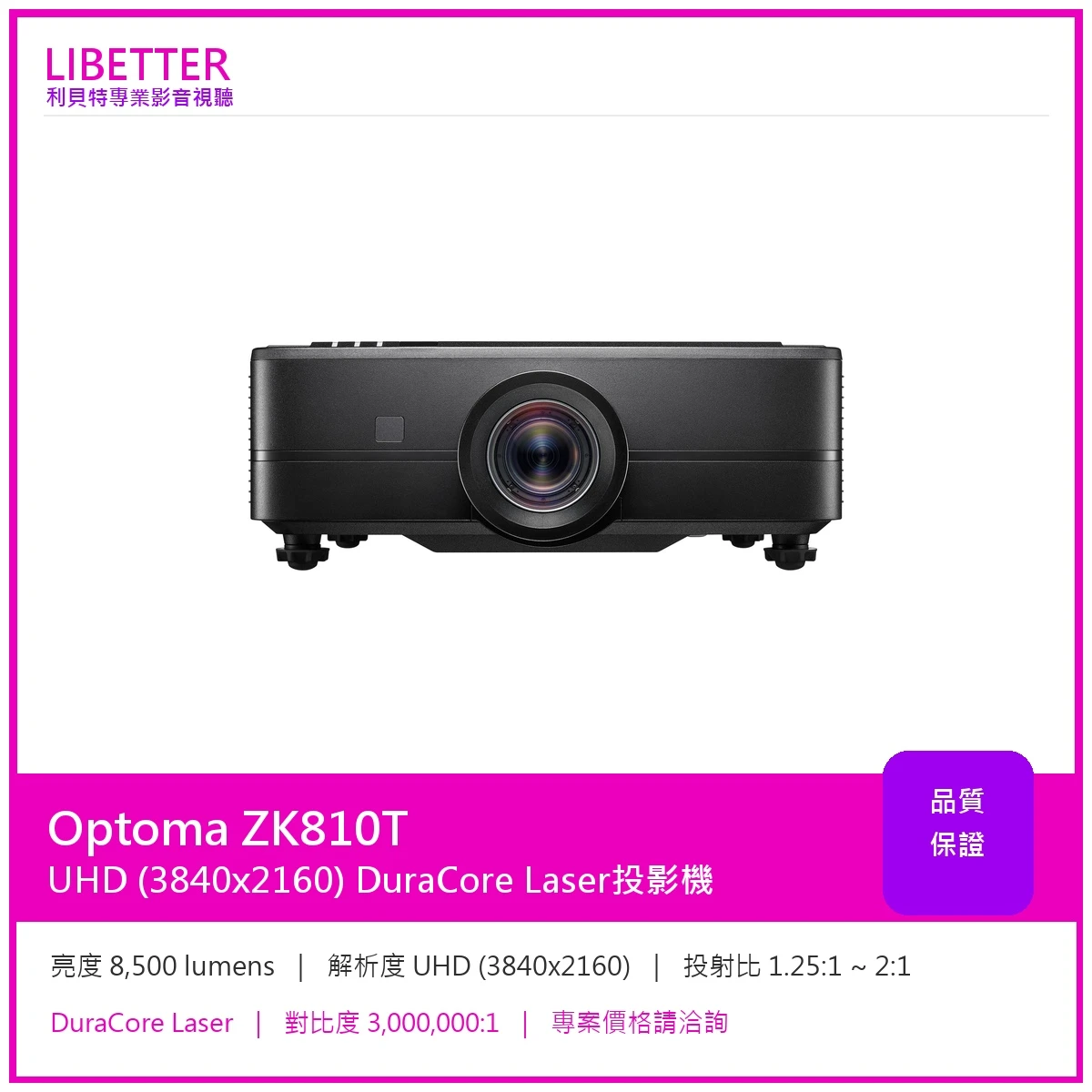

High brightness professional 4K UHD laser projector

Spectacular 4K UHD image quality, low maintenance and ultimate reliability

The ZK810T 4K UHD laser projector is perfect for fixed installations within education, museums, houses of worship, large venues, simulation or immersive applications.

Designed with the environment in mind, these are one of the first ProAV projectors to be part of Optoma's Eco Promise. The eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.

Delivering an astonishing 30,000 hours, the ZK810T combines a long-lifetime light source and an independent IP5X certified optical engine for 24/7 operation capabilities, offering truly maintenance-free projection.

With high brightness, colour precision and quiet operation, along with a fixed standard throw lens making this projector the ideal solution for a variety of endscenarios and professional environment.

The added control flexibility of HDBaseT 3.0, RS232, LAN, OMS and OSS makes this projector an affordable install and forget solution.

Features Specs Downloads

8500 lumen 4K UHD DuraCore laser projector

High brightness for immersive installations

Full motorised lens shift

Easy to set up

Dust resistant

Independently tested, IP5X certified

Long life

Delivers 30,000 hours of virtually maintenance free operation

True 4K UHD Resolution

Ultra HD 4K resolution delivers sharper, life-like images and richer colours - allowing you to sit closer to the screen and enjoy a more immersive experience.

Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.

DuraCore

Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

360 projection*

Images can be projected over a 360° rangealong the projector’s horizontal axis.

*For more information please refer to themanual

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

LAN Control

The RJ45 port provides additional network controllability. Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing for any flexible networking solution.

Associated Accessories

Optoma Management Suite

Optoma Management Suite Cloud

Display technology

Native aspect ratio

Aspect ratio - compatible

Keystone correction - horizontal

Keystone correction - vertical

Displayable colours (millions)

Horizontal scan rate

Vertical scan rate

1.27m ~ 7.62m (50" ~ 300") diagonal

Projection distance

Vertical: +/-110%, Horizontal: +/-50%

Yes - see product downloads for more information

Inputs 2 x HDMI 2.0, 1 x USB-B service, 1 x 3D sync, 1 x Wired remoteOutputs 1 x HDMI 2.0, 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x 3D syncControl 1 x HDBaseT 4K, 1 x RJ45, 1 x 12V trigger, 1 x RS232

LAN - wireless networking

Security bar, Kensington Lock, Password protected interface

Backlit ProAV remote

QSG

Back lit remote control

Power cable

LAN - wireless networking

AC 100 – 240 V @ 50/60 Hz

Power consumption (standby)

Power consumption (min)

Power consumption (max)

Weight and dimensions

Dimensions (W x D x H)

486 x 432.5 x 185.5
