Installation 1-Chip DLP™ Projectors

Power to Impress with Accurate Colors

Deepen immersion in any environment with rich, accurate colors thanks to Panasonic’s original Quartet Color Harmonizer color-wheel optimization and 1-Chip DLP™ imaging technology.

Easy to Install and Integrate

With versatile apps and functions, diverse optional lenses, support for 4K input signals *5 , and separate DIGITAL LINK and LAN terminals, these projectors reduce installation hassles with convenient flexibility.

Reliable Even in Harsh Conditions

Engineered for 20,000 hours *6 of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.

*1 Model sold without a lens.

*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

*3 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.

*4 Average light-output value of all shipped products measured at center of screen in Normal Mode.

*5 Supports signals up to 4K/60p. 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI ® .

*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m 3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

Panasonic Quartet Color Harmonizer Realizes High Brightness and Accurate Colors

Expect saturated color and finely expressed detail from next-generation 1-Chip DLP™ technology without sacrificing brightness thanks to Quartet Color Harmonizer, an original color-wheel technology with optimized optical design. It precisely modulates light-source output according to color requirements.

Excellent Uniformity for Multi-Screen Projection

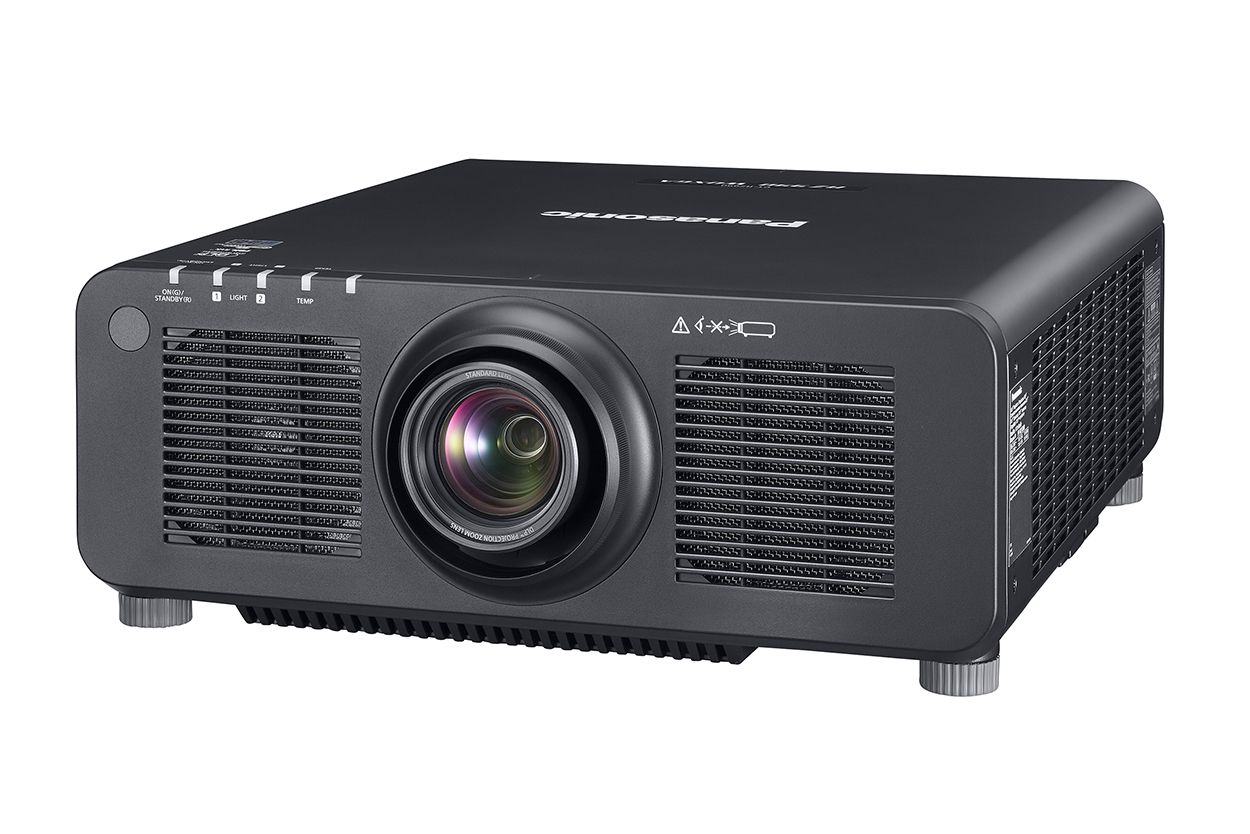

1-Chip DLP™ technology allows for great uniformity between adjoining screens. Minimal variation between DMDs allows images from PT-RZ990 Series projectors to be easily blended for a more immersive viewing experience.

System Daylight View 3

Panasonic’s premium System Daylight View 3 technology stops the picture washing out in bright light and preserves brightness, contrast, and color especially in museum and halls. It uses sensor information to adjust sharpness, gamma curves, and color to suit on-site lighting conditions.

Smart Projector Control

Smart Projector Control is a mobile app enabling remote control of select projectors. Install on your iPhone or Android™ phone or tablet, connect to your compatible projectors via Wi-Fi ® (LAN), and control functions including lens adjustment, input switching, status monitoring, and more. The app also features a handy auto-focus function* that uses the smartphone’s camera to achieve precise projector focus, saving time on installation.

Smart Projector Control (Web Manual)

* Auto Focus function may not be supported when using some mobile devices.

Geometric Adjustment with Free Grid Correction

PT-RZ990 Series benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly a distortion-free image.

Expanded Lens Lineup Widens the Scope of Installation

Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world’s first* UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

* For lenses with a 0.4:1 throw-ratio or less as of February 2019 according to internal research.

Supports 4K Signal Input

PT-RZ990 Series supports uncompressed 4K signal input* via HDMI ® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.

* Supports signals up to 4K/60p. 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.

Separate LAN and DIGITAL LINK Terminals

Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron ® , AMX, and Extron ® applications to be assigned to a dedicated LAN connection, freeing the DIGITAL LINK pipeline for video over cable runs of up to 150 m (492 ft)*.

* 1080/60p signal transmission over distances up to 150 m (492 ft) requires CAT 5e or higher cable with optional ET-YFB200G DIGITAL LINK Switcher (not compatible with 4K signals) and the projector set to Long Reach Mode. Direct transmission is supported over distances up to 100 m (328 ft) for 1080/60p video signals or 50 m (164 ft) for 4K/60p video signals.

Filterless Projector Structure with Airtight Optical Block

Heat-pipe-based *1 filterless cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry’s toughest guidelines, you’re assured of a linear brightness ramp, superior color uniformity, and maintenance-free projection for 20,000 hours *2 . These benefits are welcome when the projector is installed in a difficult-to-access location.

*1 PT-RZ990/RZ890 feature a heat-pipe-based cooling system. PT-RZ790/RZ690 feature a heat-sink-based cooling system.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m 3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

Dual Lasers for Failsafe Reliability

Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Backup Input Setting Protects Picture Display

Projectors can be configured to switch instantaneously to a backup input-signal should the primary signal be disrupted*. This layer of insurance is invaluable in control rooms, security and surveillance applications, and for live events where image projection must not be interrupted.

* The combination of primary/secondary input terminals is fixed. Input switching occurs automatically when the signal to the primary input is disrupted or restored. Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.

Other Features

SOLID SHINE Laser Maintains Picture Quality for Longer
