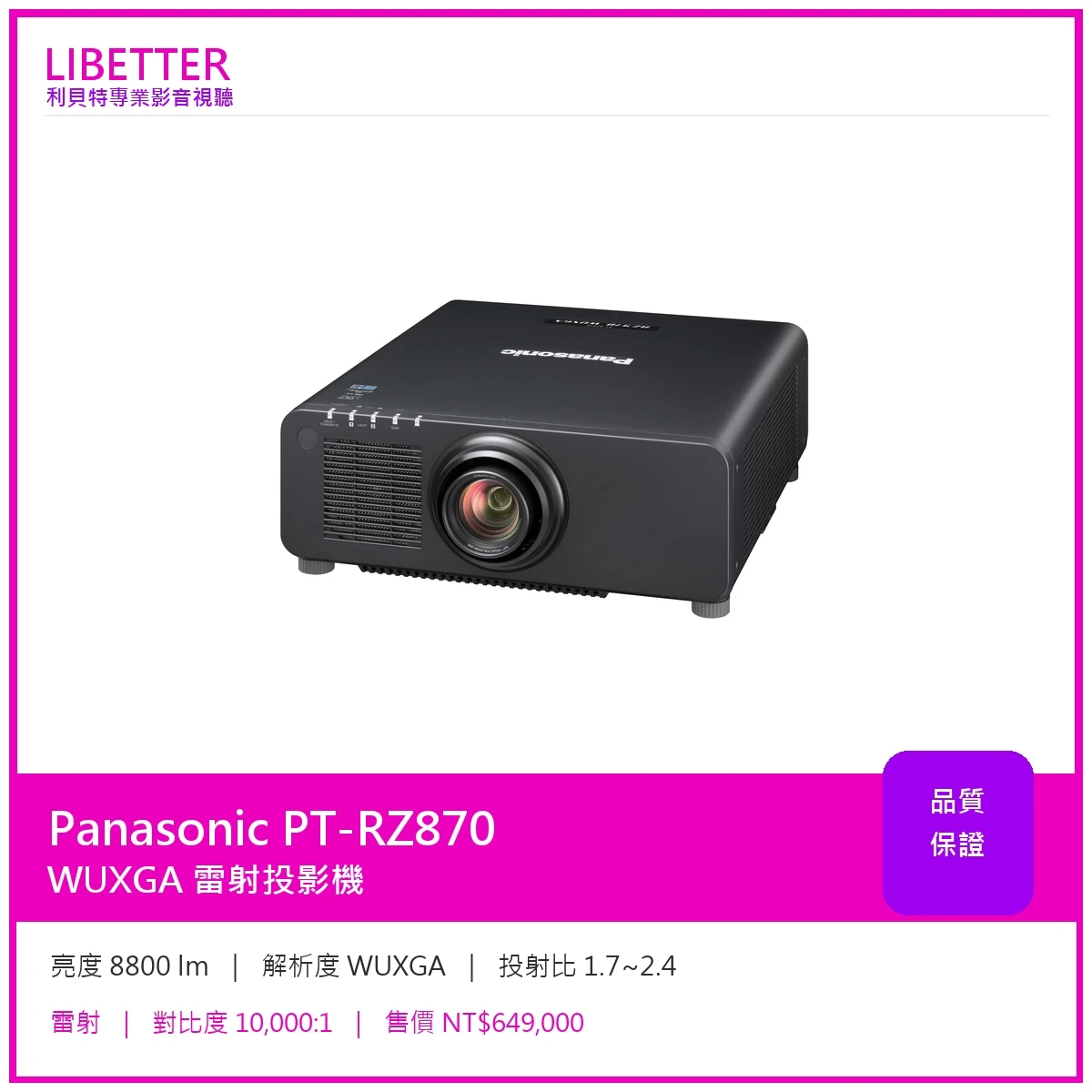

  • Panasonic PT-RZ870 WUXGA 8800流明 投影機
  • Panasonic PT-RZ870 WUXGA 8800流明 投影機

  • Panasonic PT-RZ870 WUXGA 8800流明 投影機

  • 商品型號

    PT-RZ870

  • 商品規格

    售價：NT$649,000
    亮度：8800 lm｜解析度：WUXGA｜投射比：1.7~2.4｜光源：雷射
    光源壽命：20,000 小時 (NORMAL / QUIET) / 24,000 小時 (ECO)
    對比度：10,000:1｜鏡頭位移：水平/垂直電動鏡頭位移｜縮放：電動變焦

  • 特價

    NT$ 649000

分享到
LIBETTER × Panasonic

Panasonic PT-RZ870

售價：NT$649,000
價格如有調整，以實際訂購時為準

主要規格

亮度 8800 lm
解析度 WUXGA
投射比 1.7~2.4
光源 雷射
光源壽命 20,000 小時 (NORMAL / QUIET) / 24,000 小時 (ECO)
對比度 10,000:1
鏡頭位移 水平/垂直電動鏡頭位移
縮放 電動變焦

Panasonic 原廠產品介紹

Connect with us

Thank you, we've received your submission, and we'll be in touch soon!

Breadcrumb

• Home

• Projectors

• PT-RZ870

8,500 lumens-class compact Solid Shine Laser projector

Designed for intensive usage and long lasting brightness for education, museums, exhibitions and digital signage. Laser light source, 1-chip DLP, 8,500 ANSI lumens, WUXGA projector.

Share this link via:

LinkedIn

Xing

Facebook

Or copy link:

Link has been copied

• Key features

• Accessories & Software

• Related resources

Key features of PT-RZ870

Rugged, reliable Solid Shine laser projector

8 500 lumens-class compact Solid Shine laser projector. Designed for intensive usage and long lasting brightness for education, museums, exhibitions and digital signageUp to 20000 hours maintenance free, Digital Link, 10000:1 contrast ratio, 360° flexible installation

High-quality images

The PT-RZ870 combines outstanding Solid Shine laser technology with 1-Chip DLP imaging to produce vivid, accurate and immersive images. The projector offers high brightness of 8,800 lm (centre)/ 8,500 lm (ANSI), WUXGA resolution and a 10,000:1 contrast ratio, while the System Daylight View 3 optimizes sharp and vivid images even in bright environments.

Show more Show less

Long-lasting reliability

The projector provides accurate white balance and colour reproduction in any projection mode and maintains high picture quality for very long periods. The Detail Clarity Processor 3 image processing circuit clarifies and enhances the finest details of your images. The dust-resistant cabinet with its airtight optical block also helps reduce maintenance and extends the life of the projector.

Consistently stable performance

Get up to 20,000 hours of continuous maintenance-free operation. The dual-drive optical engine with dual phosphor wheels ensures reliable 24/7 operation with light-source failover protection, while the projector’s high-speed backup input switching helps minimise screen blanking during projection. Its efficient cooling system enables stable operation in ambient temperatures of up to 45°C (113°F).

Versatile system adaptability

The PT-RZ870 shares optional lenses with all the Panasonic 1-Chip DLP projector family so the same projector can be used in smaller or larger rooms. Its direct Power Off function allows projector shutdown from the mains and it supports Geometry Manager Pro.

Flexible installation

The flexible installation option of the RZ870 means that the projector can be used in auditoriums and meeting rooms of almost any size. The geometric adjustment enables you to project onto curved or specially shaped screens and its compact body and the 360 degrees free settings mean the projector can be installed and project at whatever angle you prefer.

• Lenses for 1-Chip DLP

• Brackets

Showing 4 of 7

• Load More

Showing 4 of 4

• Brochures

• White Paper

• Image Data

• Spec Files

• Operating Instructions

• Technical Documents

• CAD Data

Showing 12 of 22

Sorry there was an error... The files you selected could not be downloaded as they do not exist.

Panasonic 官方產品圖片

PT-RZ870

Panasonic 官方詳細規格

Power supply 100–240 V AC, 10.4–5.0 A, 50/60 Hz
Power consumption *1 [PT-RZ970/RZ970L] 1,050 W (0.3 W with STANDBY MODE ECO, 3 W with STANDBY MODE NORMAL, 85 W with QUICK STARTUP set to ON); 742 W (NORMAL MODE), 617 W (ECO MODE), 410–588 W (LONG LIFE1 MODE), 375–588 W (LONG LIFE 2 MODE), 349–588 W (LONG LIFE 3 MODE), 82 W (SHUTTER MODE) [PT-RZ870/RZ870L] 950 W (0.3 W with STANDBY MODE ECO, 3 W STANDBY MODE NORMAL, 85 W with QUICK STARTUP set to ON); 689W (NORMAL MODE), 583 W (ECO MODE), 393-548 W (LONG LIFE1 MODE), 363-548 W (LONG LIFE 2 MODE), 334-548 W (LONG LIFE 3 MODE), 82 W (SHUTTER MODE)
Panel size 17.0 mm (0.67˝) diagonal (16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Pixels 2,304,000 (1920 x 1200) pixels
PT-RZ970/RZ870/RW930 Powered zoom (throw ratio 1.7-2.4:1), powered focus, F 1.7-1.9, f 25.6-35.7 mm
PT-RZ970L/RZ870L/RW930L Optional powered zoom/focus and fixed-focus lens
Light source Laser diodes (Class 1) (Class 3R for US models), light source life *2 : 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m 3 , Dynamic Contrast Mode: 3] *Includes Quiet 1/Quiet 2 Mode.
Screen size (diagonal) 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 16:10 aspect ratio
Brightness [PT-RZ970/RZ970L] 10,000 lm (Center) *3 / 9,400 lm *2 / 8,000 lm (Quiet 1) *2 / 6,000 lm (Quiet 2) *2 [PT-RZ870/RZ870L] 8,800 lm (Center) *3 / 8,500 lm *2 / 7,200 lm (Quiet 1) *2 / 5,400 lm (Quiet 2) *2
Contrast *2 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Resolution 1920 x 1200 pixels
Supported RGB signal XGA–WUXGA
Supported video signal NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
Vertical +50 %, -16 % (powered)
Horizontal +30 %, -10 % (+28 %, -10 % with the ET-DLE085/DLE105) (powered)
Keystone correction range *5 Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030)
Keystone correction range with optional Upgrade Kit ET-UK20 *5 Vertical: ±45° (±40° with ET-DLE150/ET-DLE250/supplied lens [DLE170], ±22° with ET-DLE085/ET-DLE055), horizontal: ±40° (±15° with ET-DLE085/ET-DLE055), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
Installation Ceiling/floor, front /rear, free 360-degree installation
Cabinet materials Molded plastic
PT-RZ970/RZ870/RW930 498 x 200 *6 x 581 mm (19 19/32˝ x 7 7/8˝ *6 x 22 7/8˝) (with supplied lens [DLE170])
PT-RZ970L/RZ870L/RW930L 498 x 200 *6 x 538 mm (19 19/32˝ x 7 7/8˝ *6 x 21 3/16˝) (without lens)
PT-RZ970/RZ870/RW930 Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170])
PT-RZ970L/RZ870L/RW930L Approximately 22.4 kg (49.4 lbs) (without lens)
Operation noise *2 41 dB (37 dB [Quiet1] / 35 dB [Quiet2])
Operating environment Operating temperature: 0–45 °C (32–113 °F) *8 , operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software *9 , Multi Monitoring Control Software *9 , Early Warning Software, Geometry Manager Pro *10 (ET-UK20 Upgrade Kit *11 and ET-CUK10 Auto Screen Adjustment Kit *12 )
Power consumption *1 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode)
Panel size 17.8 mm (0.7˝) diagonal (4:3 aspect ratio)
Pixels 786,432 (1024 x 768) pixels
PT-RX110 Powered zoom (throw ratio 1.8–2.4:1), powered focus, F 1.7–1.9, f 25.6–35.7 mm
PT-RX110L Optional powered zoom/focus and fixed-focus lens
Screen size (diagonal) 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 4:3 aspect ratio
Brightness 10,400 lm (Center) *3 / 10,000 lm *2 / 8,500 lm (Quiet 1) *2 / 6,400 lm (Quiet 2) *2
Resolution 1024 x 768 pixels (Input signals that exceed supported resolution will be converted.)
Supported RGB signal XGA~WUXGA
Vertical +45 %, -13 % (powered)
Keystone correction range *5 Vertical: ±40 ° (±30 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030)
Keystone correction range with optional Upgrade Kit ET-UK20 *5 –
PT-RX110 498 x 200 *6 x 581 mm (19 19/32˝ x 7 7/8˝ *6 x 22 7/8˝) (with supplied lens [DLE170])
PT-RX110L 498 x 200 *6 x 538 mm (19 19/32˝ x 7 7/8˝ *6 x 21 3/16˝) (without lens)
PT-RX110 Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170])
PT-RX110L Approximately 22.4 kg (49.4 lbs) (without lens)
Applicable software Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software
