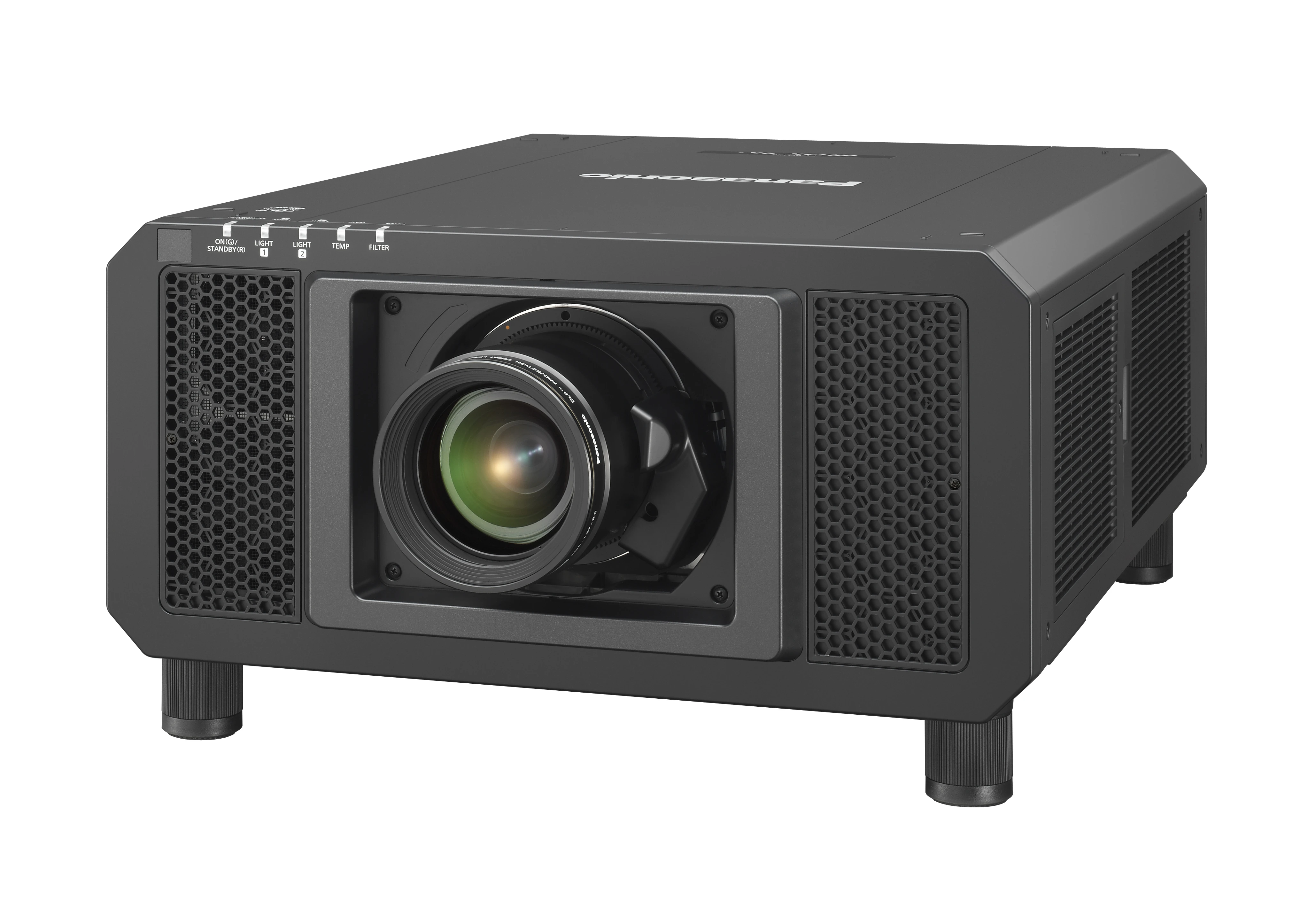

Panasonic PT-RQ13K
主要規格
| 亮度 | 10,000 lm |
|---|---|
| 解析度 | 4K+ (5120 × 3200, Quad Pixel Drive: ON) |
| 投射比 | 依選配鏡頭 |
| 光源 | 雷射 |
| 光源壽命 | 20,000 小時 (NORMAL) / 24,000 小時 (ECO) |
| 對比度 | 20,000:1 |
| 鏡頭位移 | 依選配鏡頭 |
| 縮放 | 依選配鏡頭 |
Panasonic 原廠產品介紹
Smallest and lightest 4K+ Solid Shine laser Projector
Designed for long-lasting stable brightness in events and staging. Laser light source, 3-chip DLP, 10,000 lumens, 4K+ resolution projector
Key features of PT-RQ13K
• Quad Pixel Drive produces industry's first beyond 4K screen resolution
• Real Motion Processor combines Frame-Creation and 240 Hz High-Speed Processing for fluid motion reproduction
• Impressive 10,000 lm of brightness
• Dynamic Contrast achieves 20,000:1 *1 contrast ratio by controlling laser light
• Next-generation Detail Clarity Processor gives natural texture to the finest details
• System Daylight View 3 for enhanced color perception in bright rooms and mapping applications
• DICOM Simulation mode for medical presentations and training*2
• Rec. 709 Mode reproduces colors accurately for HDTV projection
Lower Running Costs, Greater Reliability
• Extremely long 20,000-hour light-source life *3
• New liquid cooling system enables quiet operation
• Stable operation in ambient temperatures of up to 45 °C (113 °F) *4
• Consistent Colour Reproduction with no image deterioration over time
• Laser light-source engine allows 24/7 operation
• Dust-resistant optical block
• Wide powered lens-shift range
360- Degree Installation Flexibility
• Vertical, horizontal and tilting 360-degree projection enabled by laser light source
• Multi-Screen Support System seamlessly joins projected images with Edge blending, Colour matching, and Digital image enlargement
• Geometric Adjustment for projection on curved or spherical surfaces
• Compatible with ET-CUK10 Auto Screen Adjustment Kit*5
• Multi-Unit Brightness Control
• Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software
• Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft)
Panasonic 官方產品圖片
Panasonic 官方詳細規格
| Projector type | 3-Chip DLP TM projector |
|---|---|
| Display method | DLP TM chip x 3, DLP TM projection system |
| Display Device -> Panel size | 22.9 mm (0.9˝) diagonal (16:10 aspect ratio) |
| Display Device -> Number of pixels | 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFF, 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON |
| Light source | Laser diode (Class 1) (Class 3R for US models) |
| Light output *1 | 10,000 lm |
| Time until light output declines to 50 % -> NORMAL *3 | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO *3 | 24,000 hours [ECO] |
| Display Device -> Panel size | 22.9 mm (0.9˝)diagonal (16:10 aspect ratio) |
| Time until light output declines to 50 % -> QUIET *6 | 20,000 hours [QUIET] |
| Resolution | 5120 x 3200 pixels (Quad Pixel Drive: ON) |
| Contrast Ratio (typ.) *1 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000˝),1.78–15.24 m (70–600˝) with ET-D75LE8,3.05–15.24 m (120–600˝) with ET-D75LE90,16:10 aspect ratio |
| Refresh rate | 240 Hz*2 |
| Lens | Optional (no lens included with this model) |
| Lens shift -> Vertical(from center of screen) *4 | ±59 % (±44 % with the ET-D75LE6, +74 – +84 % with the ET-D75LE90) (powered) |
| Lens shift -> Horizontal(from center of screen) *4 | ±29 % (±19 % with the ET-D75LE6, -12 – +16 % with the ET-D75LE90) (powered) |
| Keystone correction range | Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) |
| Keystone correction range with optionalET-UK20 Upgrade Kit | Vertical: ±45° (±40° with ET-D75LE10/D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE6/D75LE10/D75LE50, ±20° with ET-D75LE20, ±25° with ET-D75LE30, ±30° with ET-D75LE40, ±40° with ET-D75LE8, 0° with ET-D75LE90), Up to a total of ±30° during simultaneous horizontal and vertical correction. |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Power supply | 100–240 V AC, 50/60 Hz |
| Maximum power consumption | 1,270 W Average power consumption: 913 W (Normal Mode), 782 W (Eco Mode), 531–732 W (Long Life 1 Mode), 477–702 W (Long Life 2 Mode),423–665 W (Long Life 3 Mode) [Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), ICE627087: 2008 Broadcast content, Picture Mode: Dynamic, Dynamic Contrast Mode: 3] |
| Standby power consumption -> Normal | 4 W [NORMAL] |
| Standby power consumption -> ECO | 0.3 W [ECO] *1 |
| Cabinet materials | Molded plastic |
| Filter | No |
| Operation noise -> Normal *1 | 46 dB [NORMAL] |
| Dimensions (W x H x D) | 578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included); 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝) (Including legs at shortest position and protruding parts) |
| Dimensions (W x H x D) -> Width (not including protruding parts) | 578 mm (22 3/4˝) |
| Dimensions -> Width (including protruding parts) | 578 mm (22 3/4˝) |
| Dimensions -> Height (not including protruding parts) | 270 mm (10 5/8˝) |
| Dimensions -> Height (including protruding parts) | 323.5 mm (12 23/32˝) |
| Dimensions -> Depth (not including protruding parts) | 725 mm (28 17/32˝) |
| Dimensions -> Depth (including lens) | 740 mm (29 1/8˝) |
| Weight [kg] *7 | Approx. 49.0 kg (108 lbs) (optional lens not included) |
| Operating environment -> Operating temperature *8 *9 | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software,Multi Monitoring & Control Software,Early Warning Software,Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit) |
| Body Colour | Black |
| Gross Dimensions (W x H x D in mm) | RQ13KU/RQ13KUY/RQ13KEJ: 824 x 964 x 399 mm RQ13KE: 810 x 950 x 418 mm |
| Gross Weight (Kg) | RQ13KU/RQ13KUY: 58.9 kg (129.9 lbs) RQ13KE: 57.0 kg (125.6 lbs) RQ13KEJ: 59.1 kg (130.2 lbs) |
| NFC | https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional |
| EAN | RQ13KE: 5025232829439 RQ13KEJ: 5025232829446 |
| Footnote Description | When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control using the serial terminal. Refresh rate varies depending on scanning frequency. At this time the brightness will have decreased to approximately half of its original level. Light source lifetime may be reduced depending on environmental conditions. Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. Optical axis shift function cannot be operated when used with the ET-D75LE50. Range varies depending on mounted lens. Average value. May differ depending on the actual unit. When the operating mode is set to Normal, the operating temperature range is 0 °C (32 °F) to 45 °C (113 °F), and the operating temperature range is 0 °C (32 °F) to 40 °C (104 °F) when used in locations from 1,400 m to 4,200 m (4,593 ft to 13,780 ft) above sea level. When the operating mode is set to Eco or Long Life 1/2/3, the operating temperature range is 0 °C (32 °F) to 40 °C (104 °F). When used with Smoke Cut Filter, the operating temperature range is 0 °C (32 °F) to 35 °C (95 °F). Furthermore, the projector cannot be used in locations over 2,700 m (8,858 ft) with the operating mode set to Eco or Long Life 1/2/3. When used with Smoke Cut Filter, the projector cannot be used in locations over 1,400 m (4,593 ft). The brightness of the light source may depending on operating environment and the operating temperature range in order to protect the projector. |
