利貝特專業影音視聽

-投影機安裝,視聽設備安裝,桃園投影機安裝,龍潭區投影機安裝,
利貝特專業影音視聽-投影機安裝,視聽設備安裝,桃園投影機安裝,龍潭區投影機安裝,
  • Panasonic PT-REZ12B WUXGA 12000流明 投影機
  • Panasonic PT-REZ12B WUXGA 12000流明 投影機

  • Panasonic PT-REZ12B WUXGA 12000流明 投影機

  • 商品型號

    PT-REZ12B

  • 商品規格

    售價：NT$890,000
    亮度：12000 lm｜解析度：WUXGA｜投射比：1.36~2.10｜光源：雷射
    光源壽命：20,000 小時 (NORMAL / QUIET) / 24,000 小時 (ECO)
    對比度：25,000:1｜鏡頭位移：水平±29%／垂直±60%｜縮放：1.54倍電動變焦

  • 特價

    NT$ 890000

分享到
LIBETTER × Panasonic

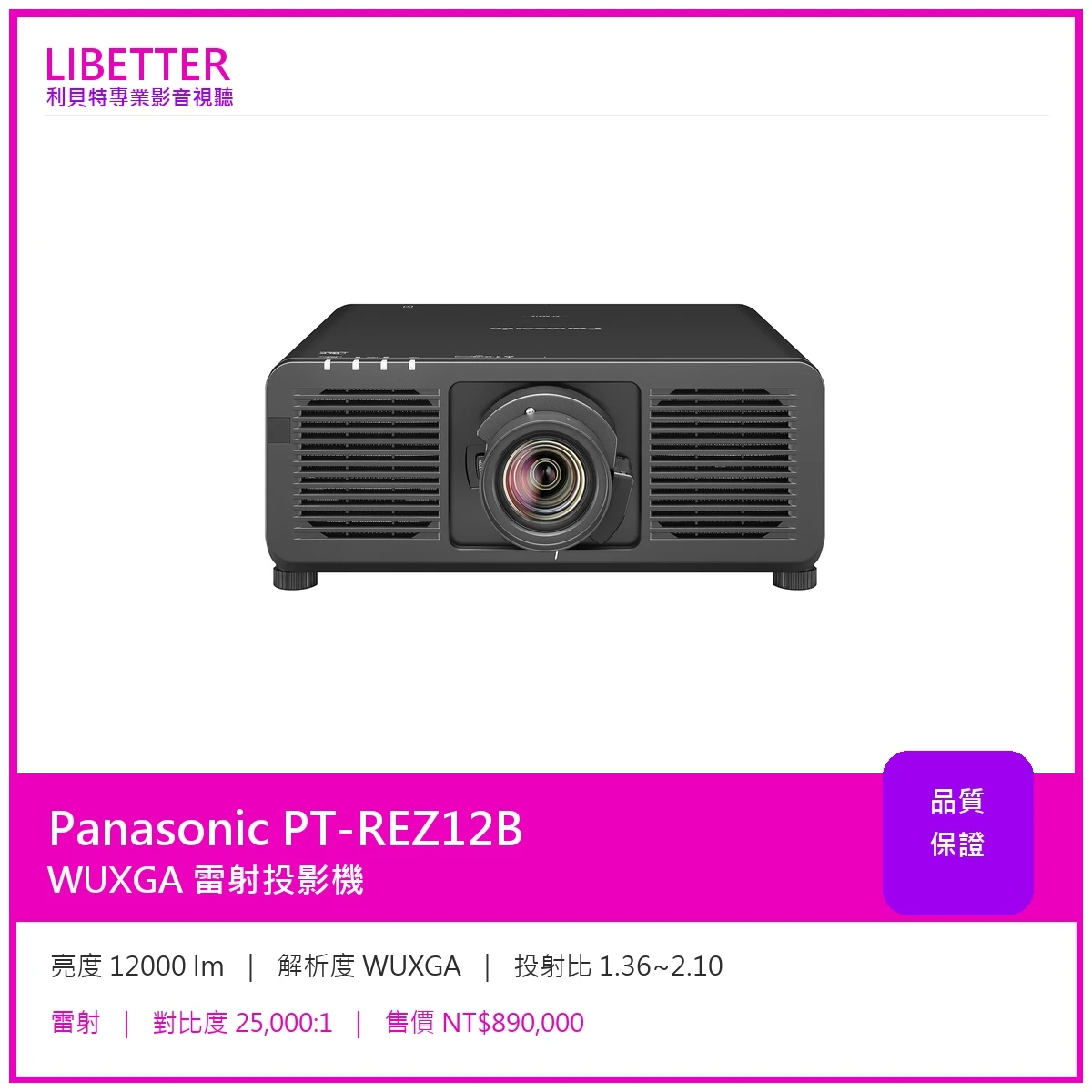

Panasonic PT-REZ12B

售價：NT$890,000
價格如有調整，以實際訂購時為準

主要規格

亮度 12000 lm
解析度 WUXGA
投射比 1.36~2.10
光源 雷射
光源壽命 20,000 小時 (NORMAL / QUIET) / 24,000 小時 (ECO)
對比度 25,000:1
鏡頭位移 水平±29%／垂直±60%
縮放 1.54倍電動變焦

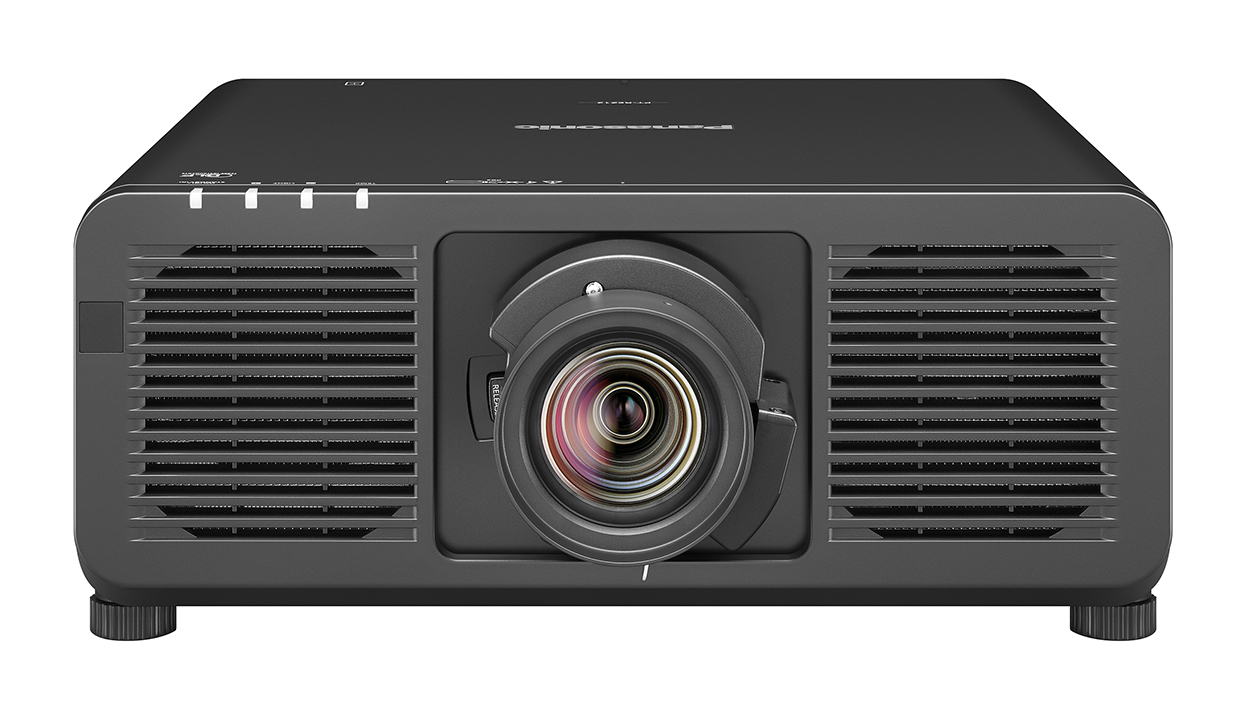

Panasonic 官方產品圖片

PT-REZ12B

Panasonic 官方詳細規格

Projector type 1-Chip DLP™ projectors
Panel size 0.8 in diagonal (16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Number of pixels 2,304,000 (1920 x 1200 pixels)
Light source Laser diode
Light output 1, 2 ? ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m 2 ). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. 12,000 lm 3 / 12,000 lm (ANSI) 4 / 12,400 lm (Center) 5
Time until light output declines to 50 % 6 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast ratio 3 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal) 7 70–1000 inches (with ET-C1S600)
Center-to-corner zone ratio 3 90 %
Lens PT-REZ15/REZ12: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens [ET-C1S600]), powered focus PT-REZ15L/REZ12L: Optional powered zoom/focus lenses
Vertical ±60 % (with ET-C1W400/W500/S600/T700/T800/T900), ±50 % (with ET-C1W300/U090/U100), +78–88 % (with ET-C1U200)
Horizontal ±29 % (with ET-C1W400/W500/S600/T700/T800/T900), ±23 % (with ET-C1W300/U090/U100), ±9 % (with ET-C1U200)
Keystone correction range Vertical: ±40 ° (±5 ° with ET-C1U090/U100/U200; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500) Horizontal: ±40 ° (±3 ° with ET-C1U090/U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500, cannot be used with ET-C1U200)
Installation Ceiling/floor, front/rear, free 360-degree installation
HDMI™ 1/2 IN HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input 8 )
DisplayPort™ DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input 8 )
MULTI SYNC IN BNC x 1
MULTI SYNC OUT BNC x 1
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
REMOTE 1 OUT M3 stereo mini-jack x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
USB USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
DC OUT USB Type A x 1 (for power supply, DC 5 V, 2 A)
Expansion slot Open slot for function boards, Intel ® SDM standard-compatible
Protocol versions IPv4, IPv6 9
Power supply AC 100–240 V, 50/60 Hz
Maximum power consumption 10, 11 995 W (10.4–4.3 A) (1,005 VA) (Power consumption is 950 W at AC 200–240 V)
On-mode power consumption (Operating mode) 10 [NORMAL] 850 W (AC 100–120 V) 810 W (AC 200–240 V) [ECO] 650 W (AC 100–120 V) 625 W (AC 200–240 V) [QUIET] 640 W (AC 100–120 V) 615 W (AC 200–240 V)
Cabinet materials Molded plastic
Operation noise 3 38 dB (NORMAL/ECO), 35 dB (QUIET)
Dimensions (W x H x D) PT-REZ15/REZ12: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position) PT-REZ15L/REZ12L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position)
Weight 12 PT-REZ15/REZ12: Approx. 28.7 kg (63.27 lbs) (with supplied lens) PT-REZ15L/REZ12L: Approx. 27.0 kg (59.52 lbs) (without lens)
Operating environment Operating temperature: 0–45 °C (32–113 °F) 13 , operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software 14 , Multi Monitoring & Control Software, Projector Network Setup Software, Visual Software Suite, Geometry Manager Pro, Smart Projector Control for iOS/Android™
Control function via LAN Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX ® DD, and PJLink™ (Class 2)
Light output 1, 2 ? ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m 2 ). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. 8,000 lm 3 / 8,000 lm (ANSI) 4 / 8,200 lm (Center) 5
Lens PT-REZ10/REZ80: Powered zoom (throw ratio 1.36–2.10:1 for supplied lens [ET-C1S600]), powered focus PT-REZ10L/REZ80L: Optional powered zoom/focus lenses
Maximum power consumption 10, 11 730 W (7.7–3.2 A) (740 VA) (Power consumption is 700 W at AC 200–240 V)
On-mode power consumption (Operating mode) 10 [NORMAL] 570 W (AC 100–120 V) 540 W (AC 200–240 V) [ECO] 440 W (AC 100–120 V) 425 W (AC 200–240 V) [QUIET] 435 W (AC 100–120 V) 420 W (AC 200–240 V)
Operation noise 3 35 dB (NORMAL/ECO), 32 dB (QUIET)
Dimensions (W x H x D) PT-REZ10/REZ80: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position) PT-REZ10L/REZ80L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position)
Weight 12 PT-REZ10/REZ80: Approx. 28.7 kg (63.27 lbs) (with supplied lens) PT-REZ10L/REZ80L: Approx. 27.0 kg (59.52 lbs) (without lens)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Visual Software Suite, Geometry Manager Pro, Smart Projector Control for iOS/Android™

投影機規劃・安裝・售後服務

03-4893505｜全省服務｜LINE ID：@libetter
