利貝特專業影音視聽

-投影機安裝,視聽設備安裝,桃園投影機安裝,龍潭區投影機安裝,
利貝特專業影音視聽-投影機安裝,視聽設備安裝,桃園投影機安裝,龍潭區投影機安裝,
  • Panasonic PT-MZ17KL WUXGA 16500流明 投影機
  • Panasonic PT-MZ17KL WUXGA 16500流明 投影機

  • Panasonic PT-MZ17KL WUXGA 16500流明 投影機

  • 商品型號

    PT-MZ17KL

  • 商品規格

    售價：NT$980,000
    亮度：16500 lm｜解析度：WUXGA｜投射比：依選配鏡頭｜光源：雷射
    光源壽命：20,000 小時
    對比度：3,000,000:1｜鏡頭位移：依選配鏡頭｜縮放：依選配鏡頭

  • 特價

    NT$ 980000

分享到
LIBETTER × Panasonic

Panasonic PT-MZ17KL

售價：NT$980,000
價格如有調整，以實際訂購時為準

主要規格

亮度 16500 lm
解析度 WUXGA
投射比 依選配鏡頭
光源 雷射
光源壽命 20,000 小時
對比度 3,000,000:1
鏡頭位移 依選配鏡頭
縮放 依選配鏡頭

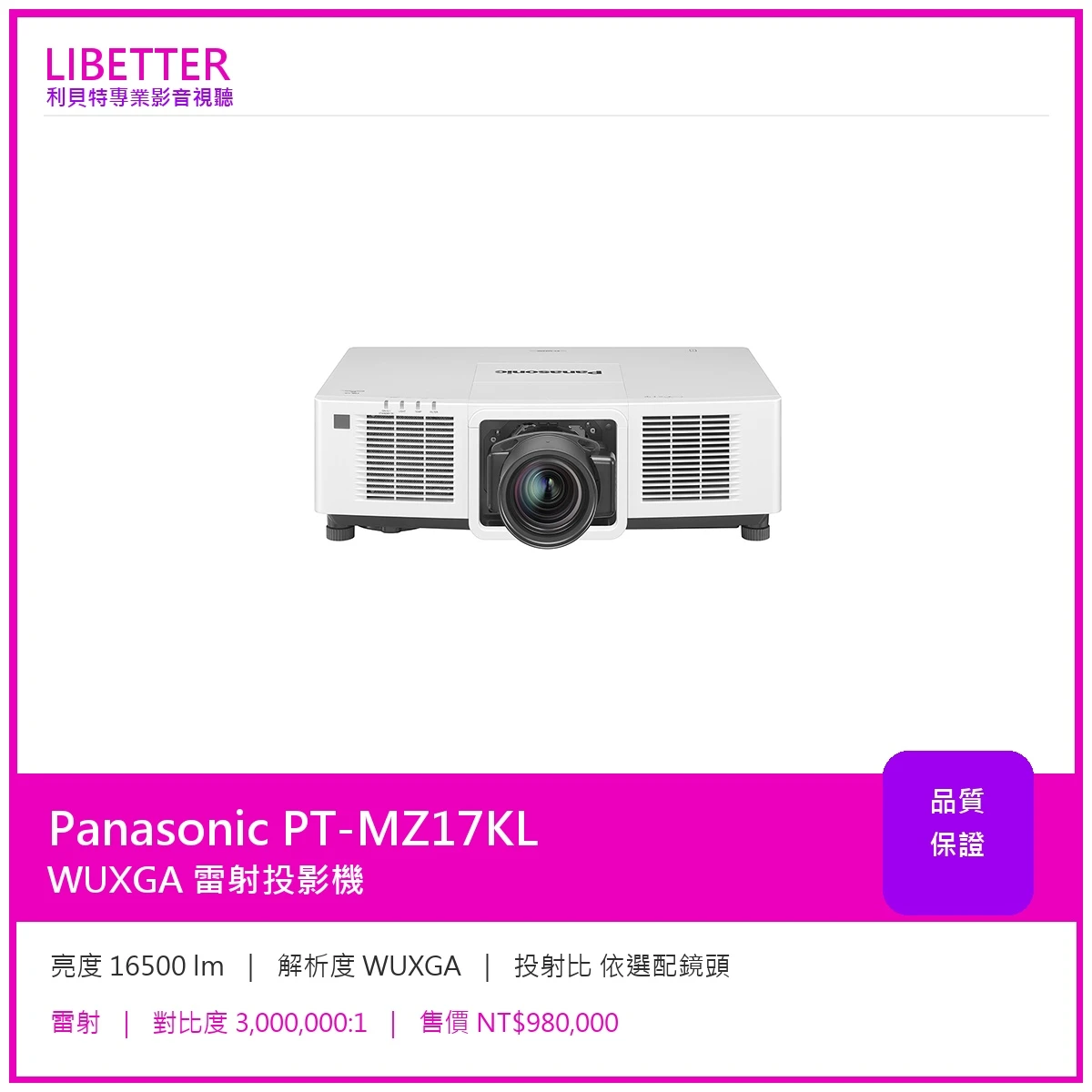

Panasonic 官方產品圖片

PT-MZ17KL

Panasonic 官方詳細規格

Projector type LCD projectors
Size 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
Display system Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix method
Pixels 2,304,000 (1920 x 1200 pixels)
Light source Laser diode
Light output 1 ? ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m 2 ). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. 16,500 lm 2 / 16,500 lm (ANSI) 3 / 17,700 lm (Center) 4
Time until light output declines to 50 % 5 20,000 hours (NORMAL/QUIET)
Resolution WUXGA (1920 x 1200 pixels)
Contrast ratio 2 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] set to [3].)
Screen size (diagonal) 2.03–15.24 m (80–600 in), 2.54–10.16 m (100–400 in) with ET-EMU100, 2.03–12.70 m (80–500 in) with ET-EMT800 6 , 16:10 aspect ratio
Center-to-corner zone ratio 2 85 %
Lens Optional (no lens included with this model)
Vertical ±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Horizontal ±20 % (±19 % with ET-EMW200) (powered)
Keystone correction range Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300, ±15 ° with ET-EMW400/ET-EMW500). When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation Ceiling/floor, front/rear, free 360-degree installation
SDI IN BNC x 1: 3G/HD-SDI input
HDMI IN HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input 7 ), CEC supported
SERIAL/MULTI PROJECTOR SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL/MULTI PROJECTOR SYNC OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN D-sub 9-pin (female) × 1 for external control (parallel)
REMOTE 2 IN M3 x 1 for wired remote control
REMOTE 2 OUT M3 x 1 for link control (for wired remote control)
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input 7 )
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DC OUT USB connector (Type A) x 1 for power supply (Output: 5 V / 2 A)
USB USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory
Power supply AC 100–240 V, 50/60 Hz
Maximum power consumption 8 950 W (9.6–4.0 A) (960 VA)
On-mode power consumption (Operating mode) 8 [NORMAL] 880 W (AC 100–120 V), 850 W (AC 200–240 V) [QUIET] 580 W (AC 100–120 V), 560 W (AC 200–240 V)
Cabinet materials Molded plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours 9 )
Operation noise 2 38 dB (NORMAL), 32 dB (QUIET)
Dimensions (W x H x D) Approx. 650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝ x 17 5/16˝) (excluding feet and protrusions), 650 x 211 x 440 mm (25 19/32˝ x 8 5/16˝ x 17 5/16˝) (excluding protrusions, with feet at shortest position)
Weight 10 Approx. 22.5 kg (49.6 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F) 11 , operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Visual Software Suite, Geometry Manager Pro, Projector Network Setup Software, Smart Projector Control for iOS/Android™
Light output 1 ? ISO/IEC 21118: Brightness measured complied with ISO/IEC 21118: 2020 international standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. ANSI lm: Brightness measured complied with American National Standards Institute standards. Measure average illuminance level (lux) of 9 points which are divided on the projected area, and multiply by projected area (m 2 ). Value is the average of all products when shipped. Result of Brightness measured complied with ISO/IEC 21118 and ANSI will be same. Center lm: Measured Illumination level at the center of screen (lux) multiplied by projected area (m 2 ). Value is the average of all products when shipped. When comparing projectors, it's essential to ensure that the brightness ratings are measured using the same standard to get an accurate comparison. 11,000 lm 2 / 11,000 lm (ANSI) 3 / 11,800 lm (Center) 4
Maximum power consumption 8 615 W (6.3–2.7 A) (630 VA)
On-mode power consumption (Operating mode) 8 [NORMAL] 540 W (AC 100–120 V), 520 W (AC 200–240 V) [QUIET] 360 W (AC 100–120 V), 340 W (AC 200–240 V)
Operation noise 2 35 dB (NORMAL), 30 dB (QUIET)

投影機規劃・安裝・售後服務

03-4893505｜全省服務｜LINE ID：@libetter
