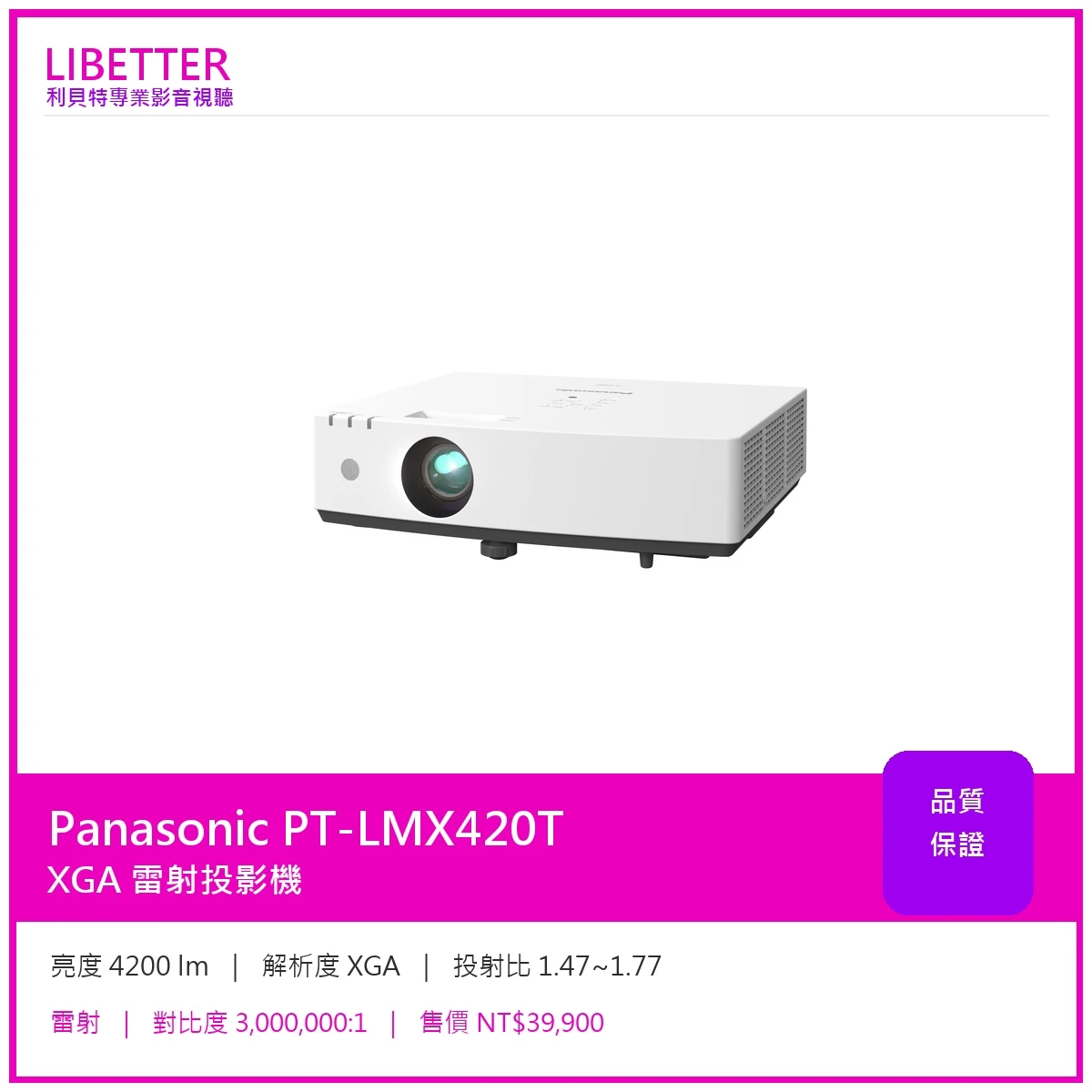

Panasonic PT-LMX420T
主要規格
| 亮度 | 4200 lm |
|---|---|
| 解析度 | XGA |
| 投射比 | 1.47~1.77 |
| 光源 | 雷射 |
| 光源壽命 | 20,000 小時 (NORMAL / QUIET) / 24,000 小時 (ECO) |
| 對比度 | 3,000,000:1 |
| 鏡頭位移 | 無 |
| 縮放 | 1.2倍手動變焦 |
Panasonic 原廠產品介紹
Connect with us
Thank you, we've received your submission, and we'll be in touch soon!
Breadcrumb
• Home
• Projectors
• PT-LMZ460 Series
• PT-LMX420
Revitalize Communication with 4,000-lm-class XGA Portable Laser Projectors
Share this link via:
Or copy link:
Link has been copied
• Key features
• Specifications table
• Accessories & Software
• Related resources
Key features of PT-LMX420
Note: Model availability varies by country or region.
1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Take It Anywhere
LMZ460 Series has width and depth not much larger than a laptop computer and weighs just 4.2 kg (9.26 lbs). It’s light enough to carry wherever you need to go, and is easy to install on the ceiling. Setup is simple: just set on a desktop, connect your source, switch on, and start presenting.
Digital Zoom Extender Adds Digital Image Shift Function
Digital Zoom Extender evolves with a new Digital Image Shift function. Digital Image Shift provides a convenient workaround when it’s not possible to install the projector at the center of the screen due to light fittings or air-conditioning vents on the ceiling, or in cases where the ceiling is too high. You can use the remote control to digitally shift the image 10% up or down and 10% left or right so it fits on your screen.
Digital Zoom Extender function allows you to keep the same mount position as your old projector even if it’s too far from the screen, saving construction work. It extends throw-distance past the range of optical zoom so the image is projected at the desired size on your screen. Furthermore, LMZ460 Series uses the same mount and attachment bracket as the conventional lamp-based PT-LB426 Series, so if you’re updating, you can bolt the new projector straight in.
Note: Resolution decreases when using Digital Zoom Extender and Image Shift. Some screen correction functions are not available when using this function, and range of corner adjustment is limited. Use of the same projector mounts may not be possible in every situation. Image size reduced to 80 % when Digital Image Shift is enabled.
Designed for Stress-free Life
Excellent picture quality is just one benefit of laser projection. Both the light source and ECO Filter don’t need to be replaced until about 20,000 hours*. Comparable lamp projectors would need between one and four lamp changes plus filter maintenance if operated for the same amount of time. You also don’t need to worry about disposing of expired lamps, and the ECO Filter can be washed and reused, saving waste. It’s easy to see how laser projection reduces cost and maintenance hassle. And thanks to the light-source’s controlled brightness ramp and consistently uniform color reproduction, images stay clear and vivid for much longer.
* Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Filter can be washed and reused up to two times (see Operating Manual for details). Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).
Dynamic Contrast Adds Depth and Realism
Dynamic Contrast analyzes the video signal frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene. It features scene-linking technology for greater realism when dark and light scenes frequently interchange. As well as accurate reproduction of images that contain a mix of dark and bright shades, Dynamic Contrast is more energy-efficient than other technologies. The high 3,000,000:1* contrast ratio delivers impressive detail definition in shadows and improves text legibility for more comfortable viewing.
* Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Specifications of PT-LMX420
Related models
PT-LMZ420
PT-LMZ460
PT-LMW460
PT-LMW420
PT-LMX460
• Brackets
• Media Processor
• Metadata Handling
• P2HD Mobile Solutions
• PressIT
Panasonic 官方產品圖片
Panasonic 官方詳細規格
| MODELS | PT-LMX420 |
|---|---|
| BRIGHTNESS | 4,200 lm 1 |
| RESOLUTION | XGA (1024 x 768 pixels) |
| Projector type | LCD projectors |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 16.0 mm (0.63 in) diagonal (4:3 aspect ratio) |
| Display Device -> Drive method | Active matrix method |
| Display Device -> Number of pixels | 786,432 (1024 x 768) pixels |
| Light source | Laser diodes |
| Light output *1 | 4,200 lm |
| Light output (ANSI) | 4,200 lm |
| Time until light output declines to 50 % -> NORMAL *3 | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO *3 | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET *6 | 20,000 hours [QUIET] |
| Resolution | XGA (1024 x 768 pixels) |
| Contrast Ratio (typ.) *1 | 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 4:3 aspect ratio |
| Center-to-corner zone ratio *1 | 85% |
| Lens | 1.2x manual zoom (throw ratio: 1.47–1.77:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm |
| Digital Zoom Extender *5 | Throw ratio: 1.47–2.22:1*5 (Corresponding value. When used together with optical zoom.) |
| Keystone correction range | Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals -> HDMI ™ IN | HDMI TM 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7 |
| Terminals -> COMPUTER IN（D-SUB 15pin） | D-sub 15-pin (female) x 1 (RGB/YP B P R /YC B C R ) |
| Terminals -> COMPUTER OUT（D-SUB 15pin） | D-sub 15-pin (female) x 1 (RGB/YP B P R /YC B C R ) |
| Terminals -> AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 2 |
| Terminals -> AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals -> LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A*8) |
| Protocol versions | IPv4, IPv6*9 |
| Power supply | AC 100 V–240 V, 50/60 Hz |
| Maximum power consumption | 230 W |
| On-mode power consumption(Operating mode) -> Normal | [NORMAL] 205 W (100–240 V), 195 W (200–240 V) |
| On-mode power consumption(Operating mode) -> Eco | [ECO] 155 W (100–240 V), 145 W (200–240 V) |
| On-mode power consumption(Operating mode) -> Quiet *10 | [QUIET] 150 W (100–240 V), 145 W (200–240 V) |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter | Included |
| Estimated filter maintenance cycle *12 | Approx. 20,000 hours |
| Operation noise -> Normal *1 | 33 dB [NORMAL] |
| Operation noise -> Eco *3 | 33 dB [ECO] |
| Operation noise -> Quiet *1 | 23 dB [QUIET] |
| Dimensions (W x H x D) | 349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position) |
| Dimensions -> Width (including protruding parts) | 349 mm (13 3/4˝) |
| Dimensions -> Height (including protruding parts) | 105 mm (4 1/8˝) |
| Dimensions -> Depth (including lens) | 309 mm (12 5/32˝) |
| Weight [kg] *7 | Approx. 4.2 kg (9.26 lbs) |
| Operating environment -> Operating temperature *8 *9 | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,Presenter Light Software for Windows®*14, Wireless Projector App for iOS/Android TM *15 |
| Control function via LAN | PJLink TM [Class 2], Crestron Connected™, AMX Device Discovery |
| Body Colour | White |
| Gross Dimensions (W x H x D in mm) | LMX420EJ: 507 x 402 x 222 mm LMX420: 497 x 392 x 210 mm |
| Gross Weight (Kg) | LMX420EJ: 7.4 kg(16.3 lbs) LMX420: 6.6 kg(14.6 lbs) |
| NFC | No |
| EAN | LMX420: 5025232931620 LMX420EJ: 5025232931637 |
| Lens shift -> Vertical(from center of screen) *4 | ー |
| Lens shift -> Horizontal(from center of screen) *4 | ー |
| Terminals -> SDI IN | ー |
| Terminals -> DVI-D IN | ー |
| Terminals -> DisplayPort ™ IN | ー |
| Terminals -> DIGITAL LINK IN / LAN | ー |
| Active 3D | No |
| SDM | No |
| Footnote Description | When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). |
