HONDA 第三代診斷儀器 3G HDS，與PC之間可以實現多種通信方式，有線USB 和網路線通訊模式，無線WIFI 通訊模式等,設備穩定可靠易于操作。

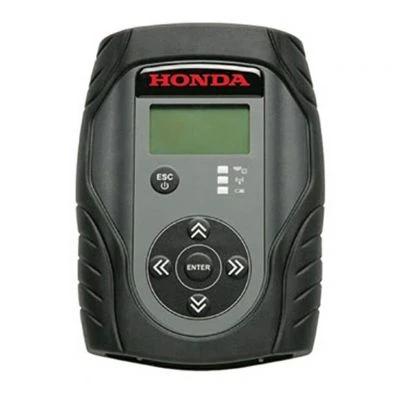

To keep current with advancements in diagnostic system capabilities and electronic tools, Honda partnered with SPX to design and develop the 3rd Generation Honda Diagnostic System (3G HDS). This system, a combination of the newly created Modular Vehicle Communication Interface (MVCI), new software, and a laptop, will provide technicians with a reliable, easy-to-use, and competitively priced tool that provides rapid and accurate diagnostic information for vehicle issues. It will also reprogram control modules (CM) in a fraction of the time of previous tools. This global Honda Motor Company tool is designed to meet current as well as future vehicle diagnostic needs.
To help ensure a seamless transition into the “next generation”, the MVCI has undergone many tests and activities resulting in several design improvements.
Benefits
Communications are based on current industry standards.
Industry standard hardware and interface improves reliability.
Commercial-grade components withstand abusive conditions.
Passed HALT testing (Highly Accelerated Life Test and 6 months field testing in dealership setting).
Upgradeable via MVCI expansion slot makes this a long term tool that is a part of Honda next generation diagnostic strategies.
Stand-alone CM (Control Module) reprogramming no longer requires a PC for reprogramming (updating) vehicle control modules.
Package
MVCI - USA (not sold separately)
OBD-II 16-Pin Data Link Cable (DLC) - 6 ft.
MVCI Ethernet Cable Retention Kit
(2) AA NiMH Rechargeable Gen 2 Batteries
AC Adapter
4GB SD Commercial Grade Memory Card
Clarity WIFI SDIO Card, 802.11 with Retainer Clip
Carrying Case with Foam Insert
Wired Connection (Industry Standard)
Can communicate directly with a Windows-based PC using a USB 2.0 or RJ45 Ethernet cable.
Spec
To keep current with advancements in diagnostic system capabilities and electronic tools, Honda partnered with SPX to design and develop the 3rd Generation Honda Diagnostic System (3G HDS). This system, a combination of the newly created Modular Vehicle Communication Interface (MVCI), new software, and a laptop, will provide technicians with a reliable, easy-to-use, and competitively priced tool that provides rapid and accurate diagnostic information for vehicle issues. It will also reprogram control modules (CM) in a fraction of the time of previous tools. This global Honda Motor Company tool is designed to meet current as well as future vehicle diagnostic needs.
To help ensure a seamless transition into the “next generation”, the MVCI has undergone many tests and activities resulting in several design improvements.
Benefits
Communications are based on current industry standards.
Industry standard hardware and interface improves reliability.
Commercial-grade components withstand abusive conditions.
Passed HALT testing (Highly Accelerated Life Test and 6 months field testing in dealership setting).
Upgradeable via MVCI expansion slot makes this a long term tool that is a part of Honda next generation diagnostic strategies.
Stand-alone CM (Control Module) reprogramming no longer requires a PC for reprogramming (updating) vehicle control modules.
Package
MVCI - USA (not sold separately)
OBD-II 16-Pin Data Link Cable (DLC) - 6 ft.
MVCI Ethernet Cable Retention Kit
(2) AA NiMH Rechargeable Gen 2 Batteries
AC Adapter
4GB SD Commercial Grade Memory Card
Clarity WIFI SDIO Card, 802.11 with Retainer Clip
Carrying Case with Foam Insert
Wired Connection (Industry Standard)
Can communicate directly with a Windows-based PC using a USB 2.0 or RJ45 Ethernet cable.
Spec
| Application Program Interface (API) | J-2534-1, J-2534-2 |
| Cables | OBD II Cable, Crossover Ethernet Cable Assembly, USB Cable |
| Display | 65 x 128 pixel graphic display, Backlight, Supports a maximum of 4 lines of text |
| Driver Support | 32 Bit: Windows XP Professional with SP3, Vista Business or Vista Home Premium and 7 Professional. (64 Bit: Windows 7) |
| I/O | 16 pin DLC; Ethernet, USB, or WiFi |
| Physical | Size: 6.25" x 5" x 2", Weight: Less than 1.5 lbs. |
| Power | Global AC Power Adapter, Backup - (2) AA NiMH Rechargeable Gen 2 Batteries (low self discharge) |
| Processor (CPU) Speed | 400 MHz CPU, Real time clock with battery backup |
| Vehicle Communication Protocols | Two Pin Selectable Dual Wire CAN channels, Single Wire CAN, K-Line, Honda Diag H, Honda Diag X |
| Wired Connection | USB 2.0, Ethernet 10 Base T/100 Base TX |
| Wireless PC Connection | IEEE 802.11 b/g with WEP (64 bit and 128 bit), WPA (TKIP), or WPA2 (AES) encryption |
